Hioki 3197 - Analyzing TIME PLOT Data; Analyzing EVENT Data

6.4 Viewing Recorded Data ([REVIEW] State)
125
6

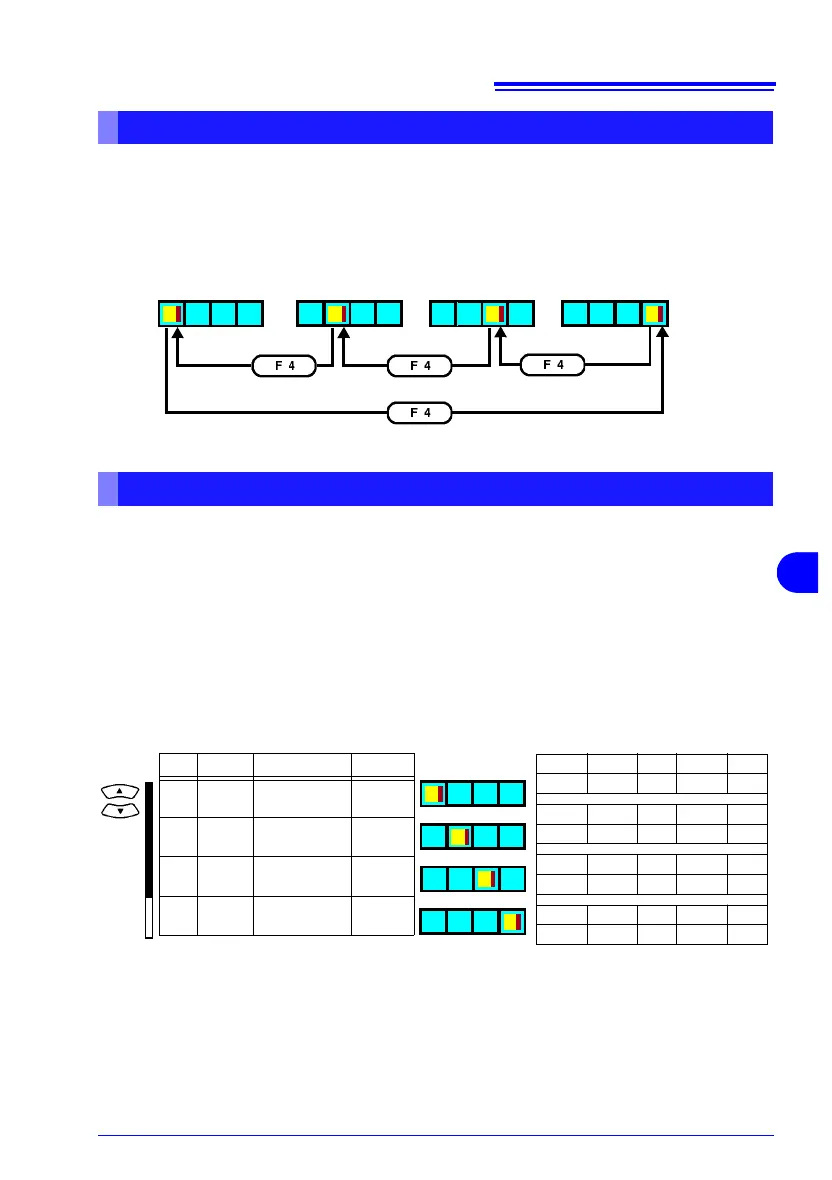

TIME PLOT data recorded in multiple memory partitions can be analyzed by
switching the browsed memory partition using the F4 (Previous Data) key.
The selected memory partion is indicated by a blue frame. At that time, the
[SYSTEM] data (that was set when the selected memory was recorded) is
displayed.
You do not need to select a memory partition to analyze recorded EVENT
da
ta. Up to four events can be analyzed together.
All events recorded in memory partitions 1 to 4 are displayed in the Event
List.
The up/down cursor keys select events in the list.
Either the "Internal Memory Usage indiicator" or "Event Monitor" appears
according to the selected event.
Analyzing TIME PLOT data
Analyzing EVENT data
Partition No. 1 Partition No. 2 Partition No. 3 Partition No. 4
To Previous Data To Previous DataTo Previous Data
To Previous Data
No. Date TIME EVENTS
1 12/19 07:30:00.000 START
2 12/19 14:30:00.000 STOP
3 12/20 07:30:00.000 START
4 12/20 14:30:00.000 STOP
5 12/21 07:30:00.000 START
6 12/22 14:30:00.000 STOP
7 12/21 07:30:00.000 START
8 12/22 14:30:00.000 STOP
Tran. Swell Dip Inter. Ext.
00002
Tran. Swell Dip Inter. Ext.
00002
Tran. Swell Dip Inter. Ext.
00002
Tran. Swell Dip Inter. Ext.
00002
Partition No. 1
Partition No. 2
Partition No. 3
Partition No. 4
Event List
Event Monitor
Internal Memory
Usage Indicator
