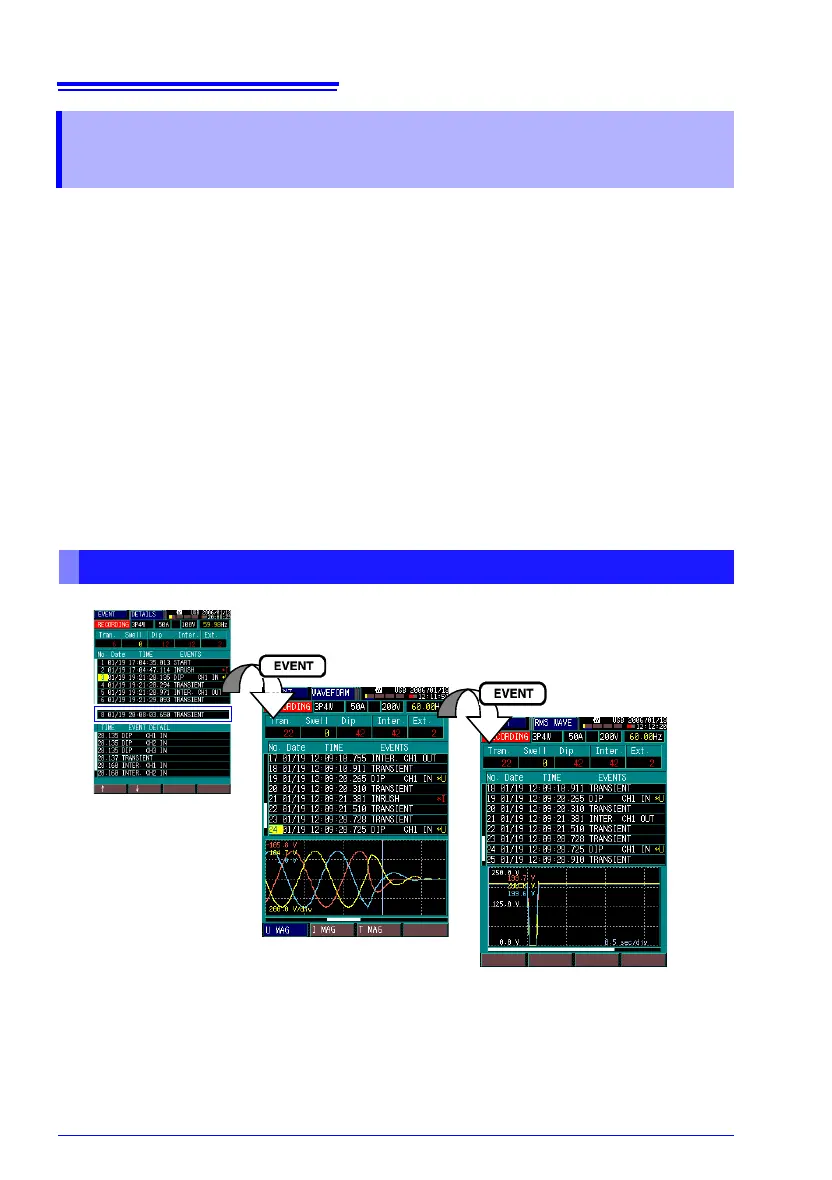

6.3 Viewing Anomalous Phenomena (EVENT screen)
108
There are four EVENT screens, called [LIST], [WAVEFORM], [VOLTAGE]
and [INRUSH]. The displayed screen changes each time you press the
EVENT key.
The Event List appears on all screens.
During the
[RECORDING] internal operating state, the EVENT screens are
refreshed every time an event occurs. During the
[ANALYZE] internal oper-
ating state, event occurrence results are preserved.
Each screen is related to the others by the event occurrence. For exam-
ple, if you select the No. 24 voltage dip event on the event [DETAILS]
sc
reen and then switch to the [WAVEFORM] screen, the voltage wave-
form of the No. 24 voltage dip is displayed, and switching to the [RMS
W
AVE] screen displays the event voltage fluctuation graph of the No. 3
voltage dip.
6.3 Viewing Anomalous Phenomena (EVENT
screen)
Viewing the [RMS WAVE] Screen
[DETAILS]
[
WAVEFORM]
[
RMS WAVE]

Hioki 3197 Specifications

General

Model	Hioki 3197
Category	Power Quality Analyzer
Harmonic Measurement	Up to 50th order
Display	LCD
Interface	RS-232C
Power Supply	100 to 240 V AC, 50/60 Hz
Measurement Category	CAT III 600 V
Current Measurement Range	With clamp sensor, up to 5000 A
Frequency Measurement Range	40 Hz to 70 Hz
Frequency Range	40 Hz to 70 Hz
