4.2 Selecting the Measurement Method (SYSTEM Screen) [MEASURE]
57
4
Before connecting to the lines to be measured, change these settings as
occasion demands.
Make settings on the SYSTEM-[MEASURE] screen.
4.2 Selecting the Measurement Method
(SYSTEM Screen) [MEASURE]

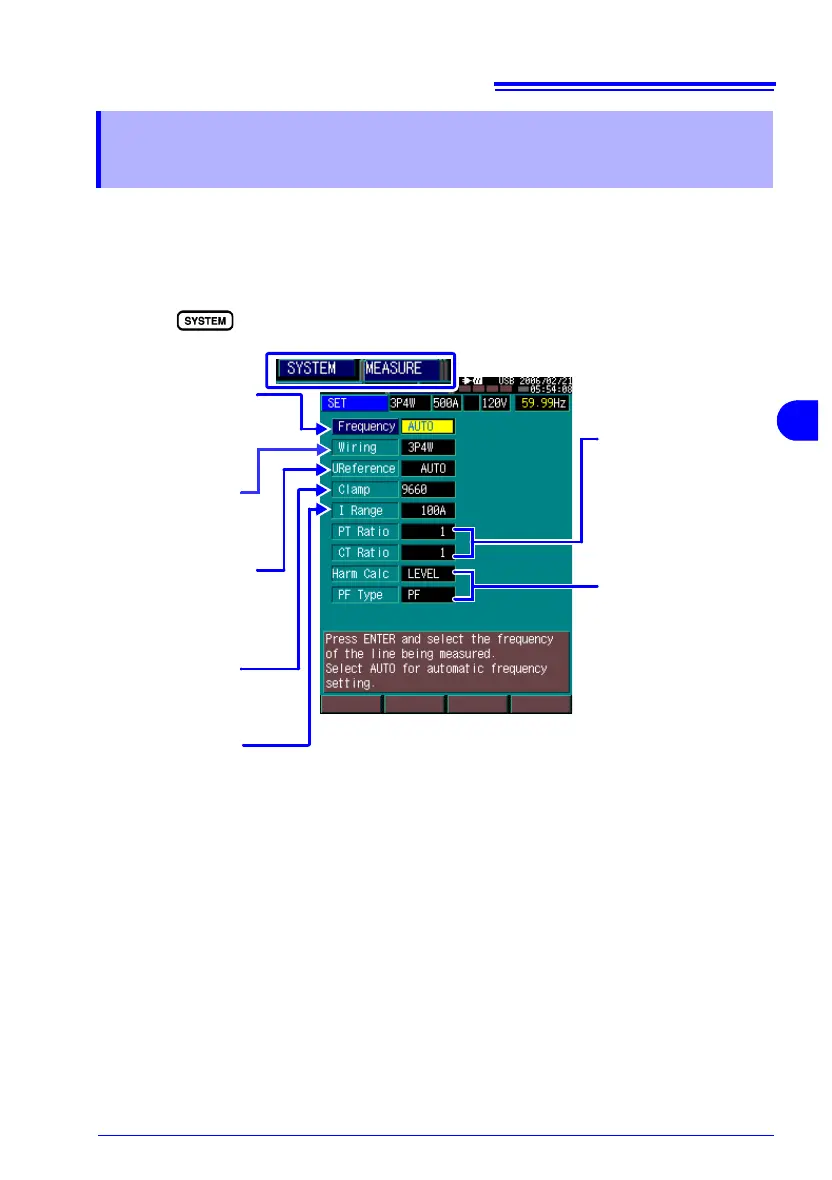

Press the key to display the [MEASURE] screen. Set the following items.
When using PTor CT,
select the ratio.
Select the calculation
formula for harmon-
ics or power factor
(p. 62).
To open the screen:
Selects the nominal
frequency of the
measurement lines
(p. 58).
Selects the wiring
configuration
Selects the nominal
voltage of the measure-
ment lines (p. 59).
Selects the clamp
sensor model to be used
(p. 60).
Selects the current
range (p. 60).
