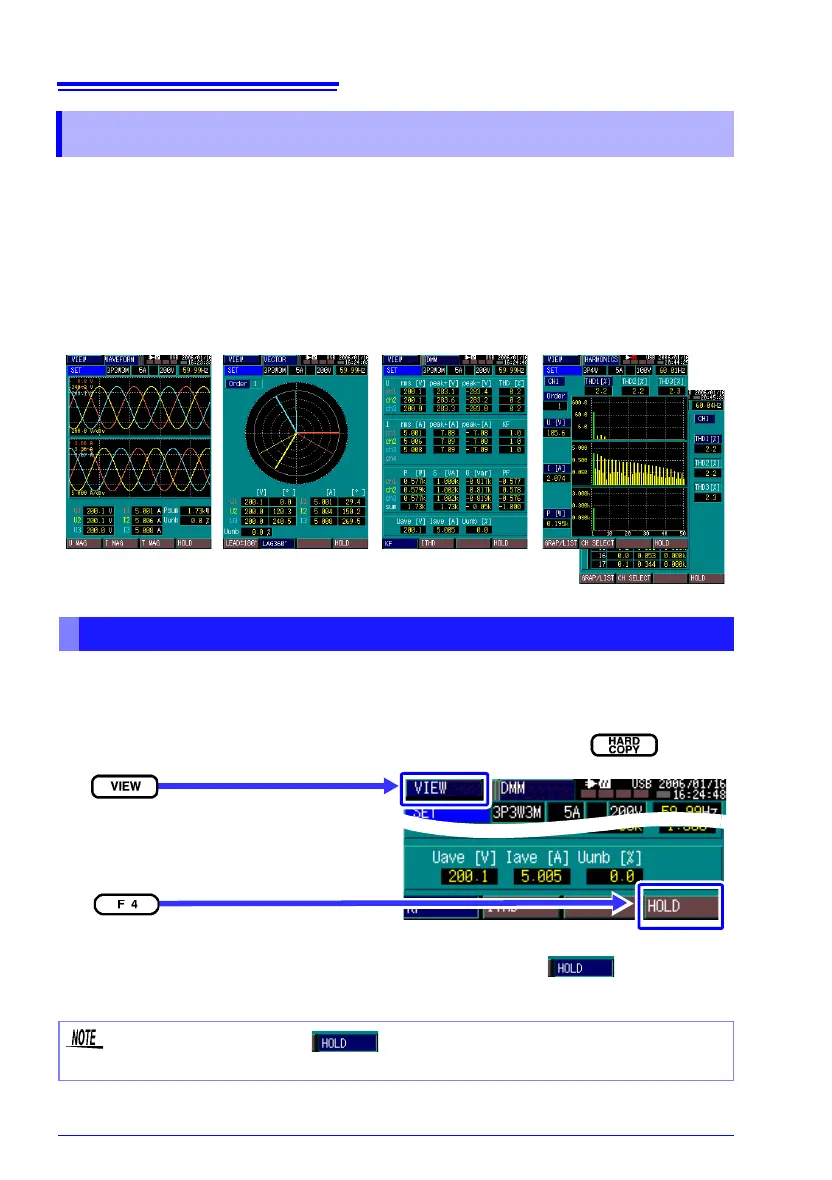

6.1 Viewing Instantaneous Data (VIEW Screen)
96
There are four types of VIEW screens: [WAVEFORM], [VECTOR], [HAR-
MONICS] and [DMM]. Press the VIEW key to switch between them.
The VIEW screens display instantaneous data by refreshing about once
pe
r second, regardless of the internal operating state (
[SET], [RECORDING]
or [ANALYZE].
The screen display can be held (screen refresh stopped). Although the
V
IEW screen is refreshed in real-time, values and graphs can be easier to
read by holding the display.
6.1 Viewing Instantaneous Data (VIEW Screen)
[WAVEFORM] [VECTOR] [DMM] [HARMONICS]
Holding the Screen Display (Common to all VIEW screens)
Select the VIEW screen.
Press to activate the hold
state
When you press the F4 key, its display label changes to as the display is
held.
To cancel, press the F4 (Cancel Hold) key once.
Display hold is also useful prior to executing screen shot ( ).
While the F4 key label is , the display is not refreshed.
To refresh the display, press the F4 (Cancel Hold) key to cancel the hold state.
