2.5 Internal Operating Status and Memory Usage
35
2
Pressing the DATA RESET key in the [SET] state erases all data from internal memory.
Select the [REVIEW] state to review recorded data. (p. 123)
In the Real-Time Control operating state, settings are applied at the time of each measure-
ment.

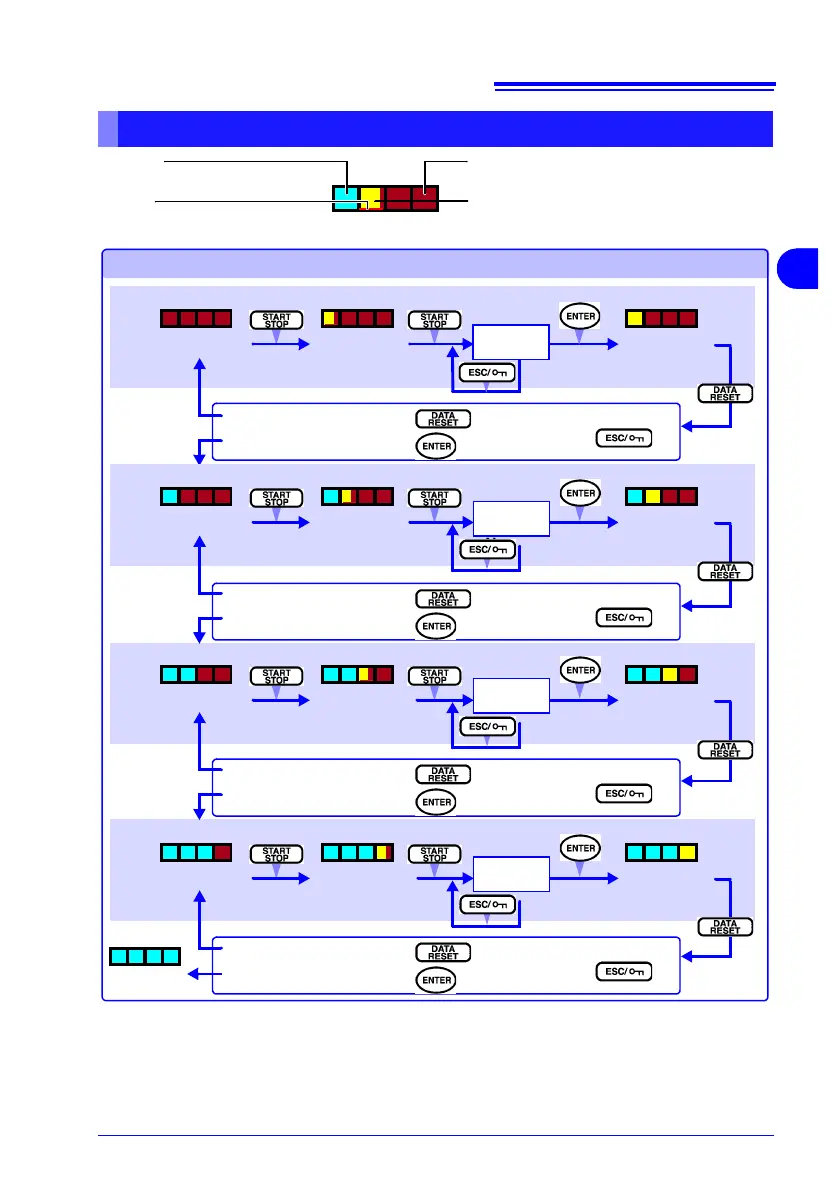

Using Memory Partitioning (Partition: [ON])
(Brown)
indicates no stored data.
(Blue)
indicates recorded data.
(Yellow)
indicates the amount of recorded Time Plot
data as a level meter.
Start and Stop Recording Manually
[SET] [RECORD-
ING]
[ANALYZE]
Unless Interval: AUTO is selected,
measurement starts at a suitable
interval multiple.
To erase this recorded data:
To return to
[ANALYZE]:
To save this recorded data:
First Measurement
[SET] [RECORD-
ING]
[ANALYZE]
No
Second Measurement
[SET] [RECORD-
ING]
[ANALYZE]
Third Measurement
[SET] [RECORD-
ING]
[ANALYZE]
Fourth Measurement
(Red)
indicates the memory partition
currently being used.
Stop
Recording?
Unless Interval: AUTO is selected,
measurement starts at a suitable
interval multiple.
Stop
Recording?
[SET]
Unless Interval: AUTO is selected,
measurement starts at a suitable in-
terval multiple.
Stop
Recording?
Unless Interval: AUTO is selected,
measurement starts at a suitable
interval multiple.
Stop
Recording?
To erase this recorded data:
To return to
[ANALYZE]:
To save this recorded data:
To erase this recorded data:
To return to
[ANALYZE]:
To save this recorded data:
To erase this recorded data:
To return to
[ANALYZE]:
To save this recorded data:
