3.6 Other Preparations
49
3
2

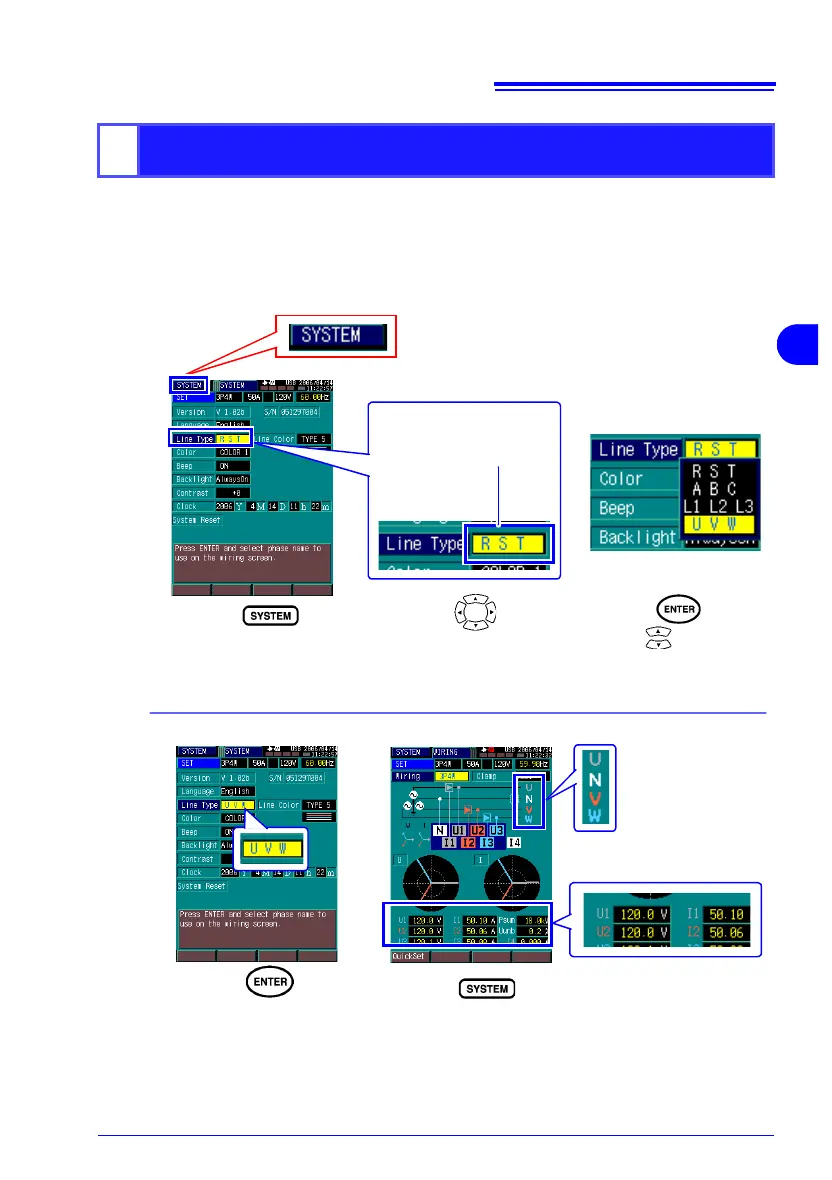

Select the naming convention to be applied to each phase line
measurement on the display
Phase line measurements can be identified on the display by the following conven-
tions: R S T, A B C, L1 L2 L3 or U V W.
The factory default setting is R S T, but should be changed to suit your local con-
vention.
As an example, this procedure shows how to change the phase line naming con-
vention to U V W.
1
Press the key to
display the [SYSTEM]
screen.
2
Press the key and
then the keys to select
the desired naming con-
vention.
3
Cursor
4
Press the key to
accept the new setting.
5
Press the key
to display the [WIRING]
Configuration screen.
Measurement data for each
phase line is now identified
as U1, U2 and U3 for voltage
measurements, and as I1, I2
and I3 for current measure-
ments.
Press the keys to
move the cursor to the
[RST]
(factory default) setting.
6
Confirm that the
phase (line)
names displayed
on screen match
your selection.
