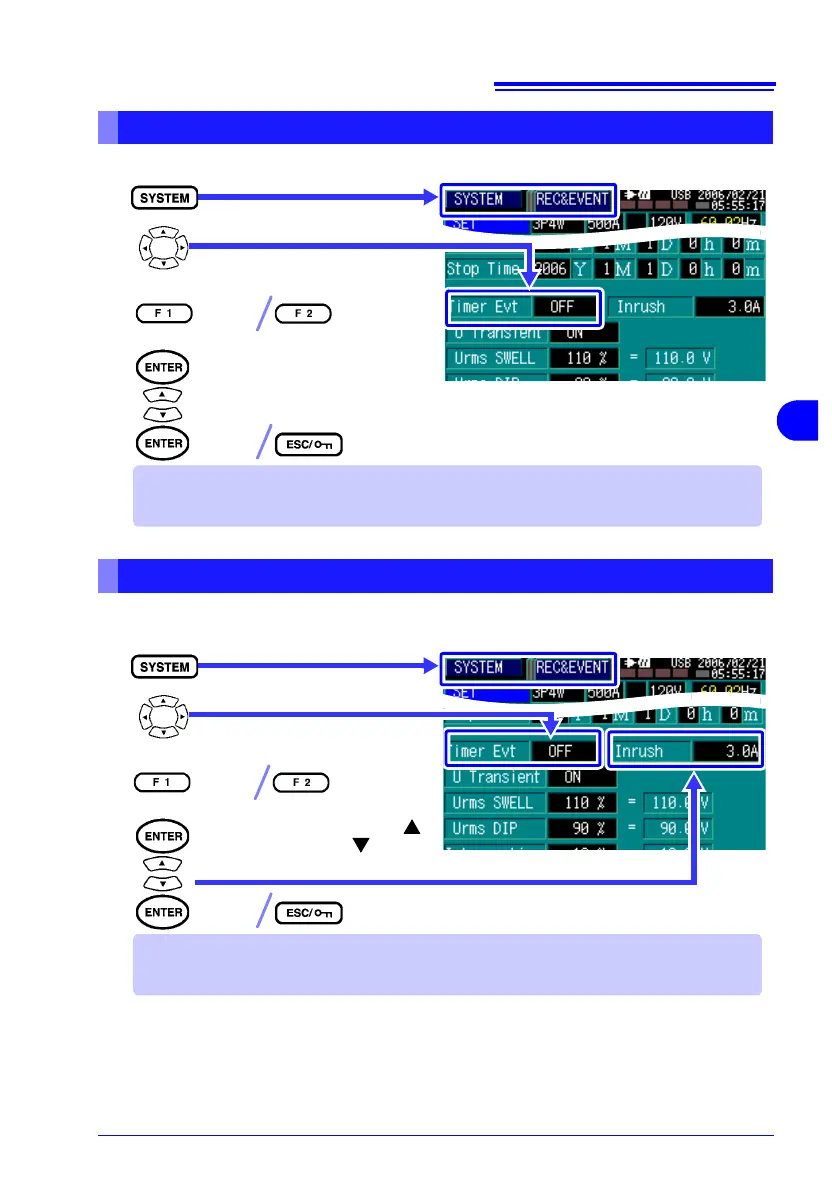

4.4 Setting Event Detection [REC&EVENT]
69
4
Timed events are recordings made automatically at a predefined interval.
Inrush events indicate that inrush current (inrush, starting or surge current)
has exceeded the specified threshold.
Setting Timed Events
Move to the setting item.
Select the screen.
1
2
Setting Contents
OFF/1 min/5 min/15 min/30 min/1 hour/2 hour/ 12 hour/ 1 day
Select from the pull-down
menu.
4
Accept
Cancel
3
OFF
ON
See: "Timer" (p. 113)
Setting Inrush Events
Move to the setting item.
Select the screen.
1
2
Setting Contents
0A to 5000A
Change a numerical value ([ ]:
increase the value, [ ]: de-
crease the value)
4
Accept
Cancel
When an event occurs, a graph of the inrush current is recorded in addition to the event
waveform.
3
OFF
ON
The inrush current threshold setting is an rms current value.
See: "Inrush Current" (p. 113)

Hioki 3197 Specifications

General

Model	Hioki 3197
Category	Power Quality Analyzer
Harmonic Measurement	Up to 50th order
Display	LCD
Interface	RS-232C
Power Supply	100 to 240 V AC, 50/60 Hz
Measurement Category	CAT III 600 V
Current Measurement Range	With clamp sensor, up to 5000 A
Frequency Measurement Range	40 Hz to 70 Hz
Frequency Range	40 Hz to 70 Hz
