When it is not possible to supply AC mains power to the instrument through the AC
adapter, it can be powered by the Model 9459 Battery Pack instead.
Also, when operating the instrument from the AC mains, the battery serves as a
backup power source in case a power interruption occurs.

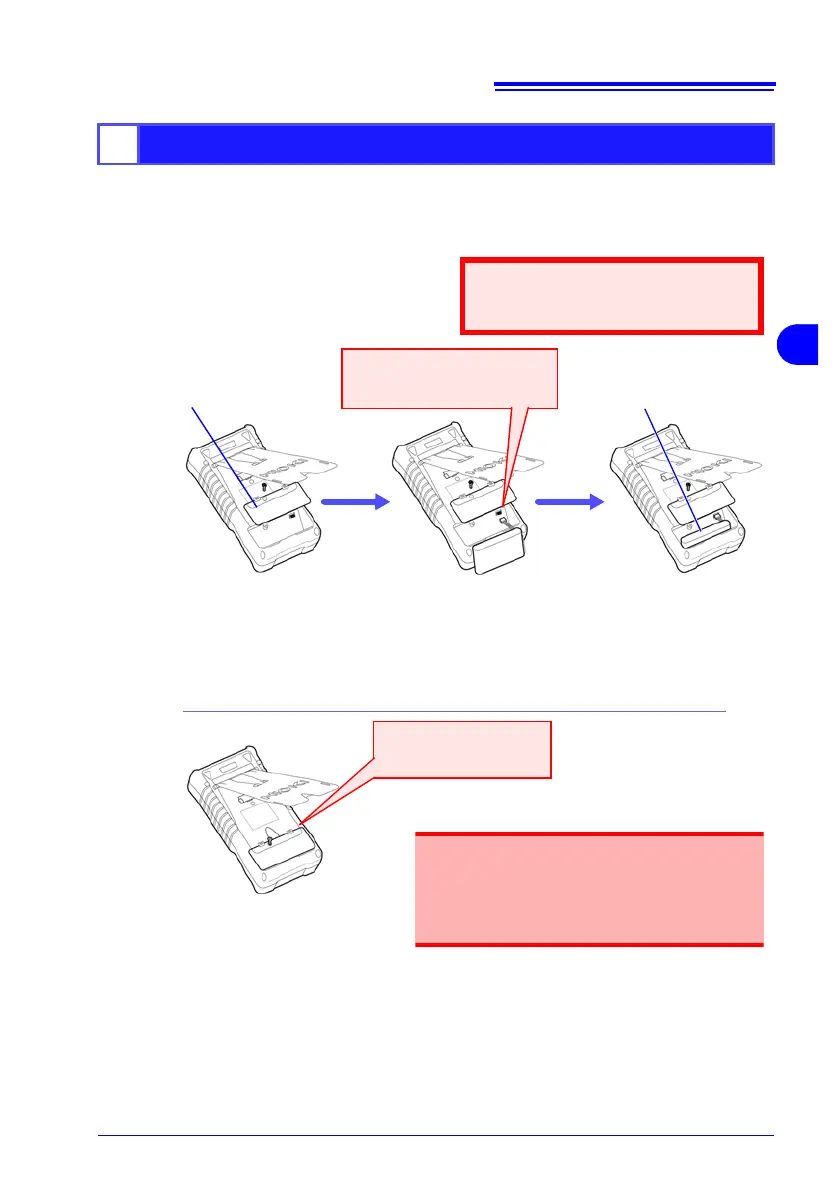

1
Avoid pinching the
battery pack leads
Turn the instrument over
to remove the retaining
screw from the battery
compartment cover, and
remove the cover.
2
Connect the plug
from the battery
pack to the connec-
tor.
Insert the battery pack in
the direction of the bat-
tery pack label.
Insert while holding the
wiring toward the right
side.
3
Required tool:
One Philips screwdriver
Important
Disconnect the AC adapter when in-
stalling the battery pack.
Battery Compartment
Cover
Connect the battery leads
with the white wire to the
right.
The label is on the other side.
4
Replace the battery pack
compartment cover, and its
retaining screw.
For battery operation, use only the HIOKI
Model 9459 Battery Pack. We cannot
accept responsibility for accidents or dam-
age related to the use of any other batter-
ies.
