4 Individual remote controls
PC-ART
TCGB0106 rev.0 - 12/2014
118

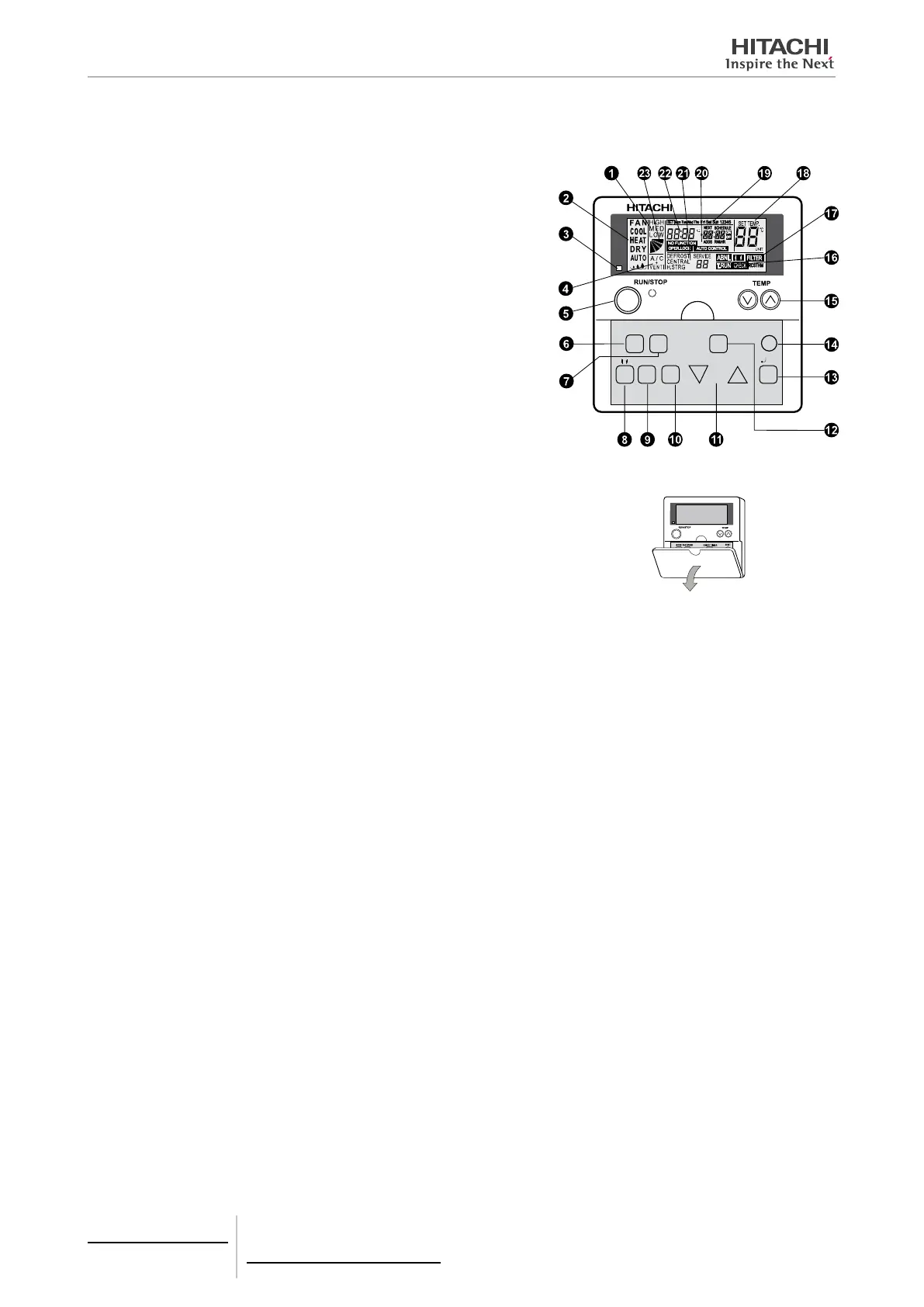

4.2.2.3 Description of the parts
Fan speed indicator:
Indicates the fan speed selected: HIGH, MED or LOW
DAY
SCHEDULE
SELECT
LOUVER
VENTI
MODE
FANSPEED TIMER
RESET
OK
Model: PC-ART
To open the cover, pull in
the direction of the arrow.
Operation mode indicator:
Indicates the operation mode selected: FAN, COOL, HEAT, DRY
or AUTO
Run indicator (green LED)
Ventilation indicator:
Indicates whether the total heat exchanger has been selected*.
(*see: Ventilation mode procedure)
A/C air conditioning only
VENTI total heat exchanger only
A/C + VENTI if both are selected
RUN/STOP button
MODE button
FAN SPEED button
Panel up and down operation button
VENTI button (ventilator operation)
LOUVER button (oscillating louver operation)
SELECT (DAY/SCHEDULE) buttons
ON/OFF TIMER button (starts/stops timer).
(Used to activate or deactivate the timer function)
OK button
RESET button (resets lter)
After cleaning the air lter, press the RESET button
The FILTER message will disappear and the next lter cleaning time will be set
It can also be used to exit the check mode and the optional function conguration mode
TEMP buttons (temperature setting)
T.RUN indicator (test run indicator)
OK indicator
These indications are displayed during TEST RUN and OK operations
ABNML indicator (alarm)
FILTER indicator
Panel up/down indicator
SET TEMP indicator (temperature setting)
1234S indicator (schedule number setting)
Mon, Tue... Sun indicator (indicates the weekday)
Indicates the start/stop time for each of the units
Time indicator (indicates the scheduled time)
NO FUNCTION indicator (indicates when a key has no function)
OPER LOCK indicator (keys locked)
ADDS indicator (indoor units)
RN HR: RN indicator (refrigerant cycle number) and HR (hours of service)
SERVICE indicator (service mode: indicates a switch to special functions)
CENTRAL indicator
DEFROST indicator
Time indicator
Louver indicator
