7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
648648
7.3.2.4 General data
Cover PC plastic type (UL 94 V-0). Grey. RAL 7035.
Dimensions Width 107mm - Height 90 mm - Depth 58 mm
Weight 2 kg
Power Supply
9 a 30 VDC ±10% 1.4W.
24 VAC ±10% 1.4VA.
Terminal: Screw type removable (2 poles) for 2.5 mm2 (12 AWG) cable.
Assembly Surface, Wall an over rail DIN EN60715 TH35.
CSNET WEB Port 1 x Ethernet 10BT RJ45. - (TCP/IP Modbus protocol)
KNX Port 1 x KNX TP1 (EIB) Opto insulated. Screw type removable (2 poles) for 2.5 mm2 (12 AWG) cable
Indicators LED
1 x Power Supply.
2 x Ethernet Port activity (LNK, ACT).
2 x KNX Port activity (Tx, Rx)
1 x programming/bus KNX.¹
Push button 1 x programming KNX.¹
Port type RS232. DB9 female (DCE) connector DB9.
Conîš¿guration By RS232 port.
Firmware Updates allowed by RS232 port
Temperature range -40°C a +70°C
Relative Humidity 5% a 95%, without condensation
Protection IP20 (IEC60529).
RoHS Conformity RoHS compliance according, directive 2002/95/EC.
Certiîš¿cation CE
¹ For servicing purposes. Not avalaible.

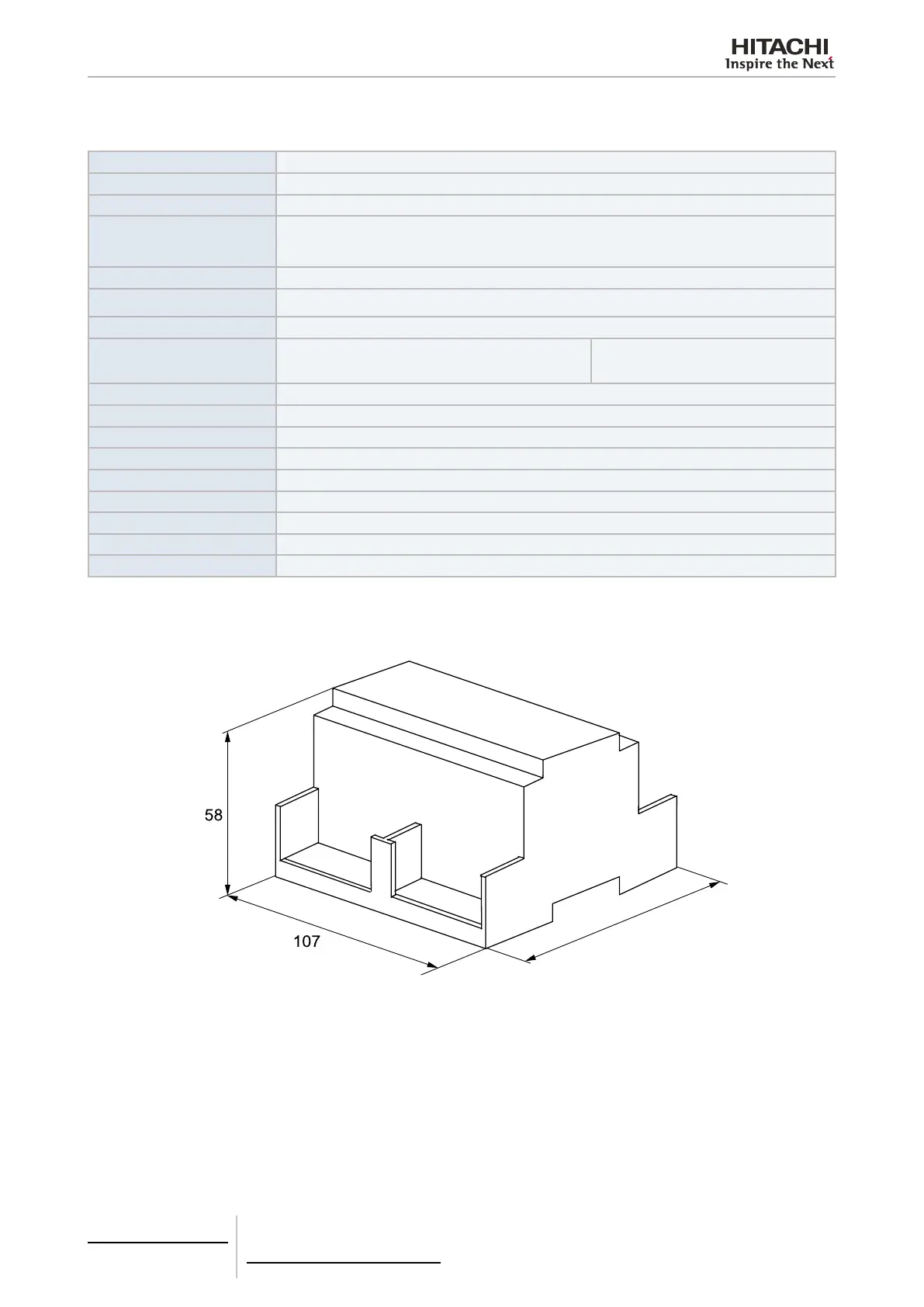

7.3.2.5 Dimensional data
90
(mm)
