8.6 THM-R2AE
8.6.1 Installation
8.6.1.1 Installation site selection
The thermistor for detecting room temperature is installed inside the remote sensor.
The installation position of the remote sensor should be determined in consideration with the following conditions:
• where the average room temperature can be detected.
• where is not exposed to the sun.
• where a heat source is not located near the remote sensor.
• where the discharge air from the air conditioner does not blow directly.
• where is not affected by the outdoor air when opening /closing the door, etc.
8.6.1.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.

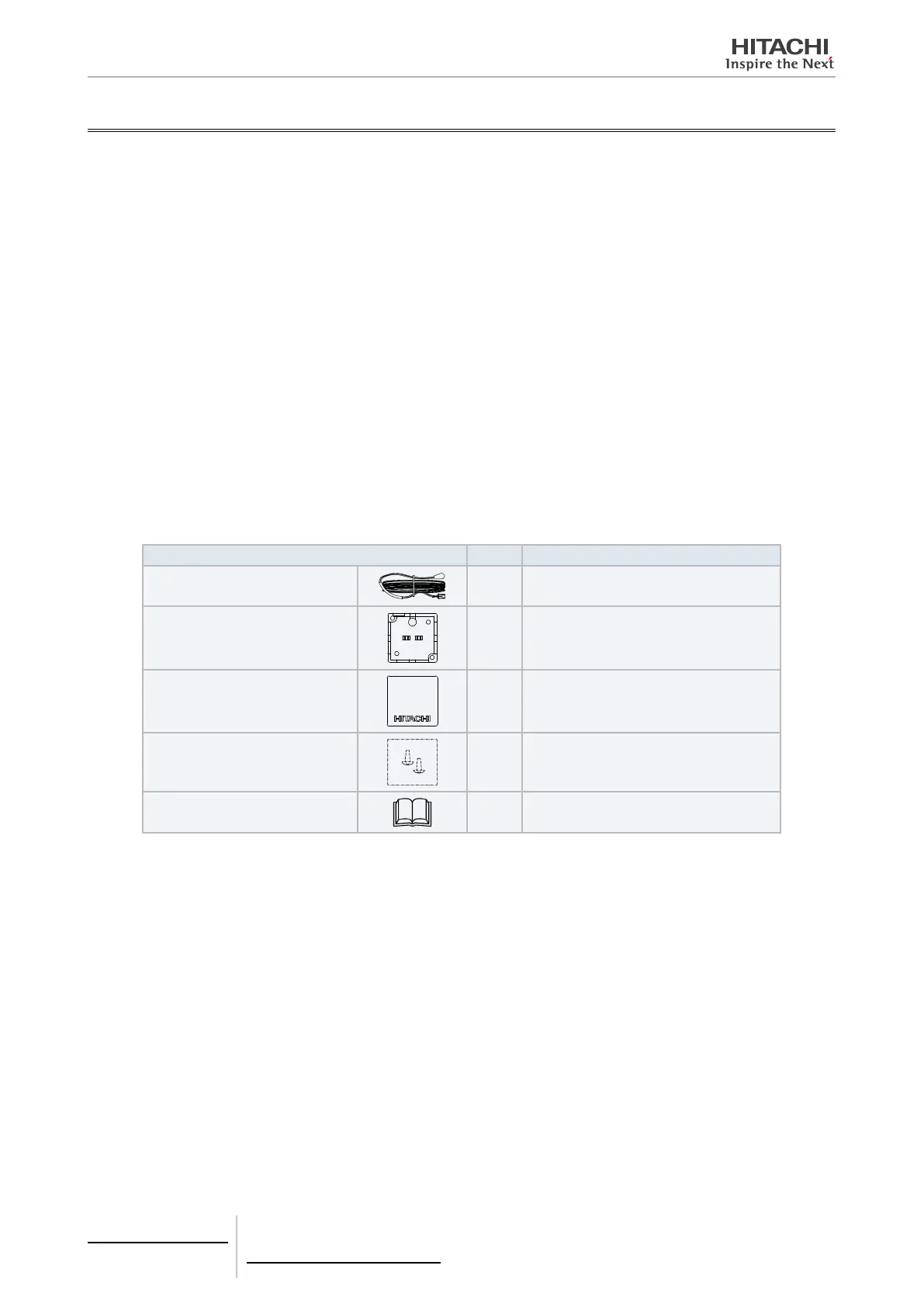

Name Quant. Comments
Thermistor
1 -
Thermistor case
1 -
Thermistor case cover
2 -
Fixing screw
2 For xing the accessory to the wall
Installation and operation manual
1 Installation and operation unit instructions.
8 Control support devices
THM-R2AE
TCGB0106 rev.0 - 12/2014
