6 Building air conditioning controls
HC-A64NET
TCGB0106 rev.0 - 12/2014
617617
6

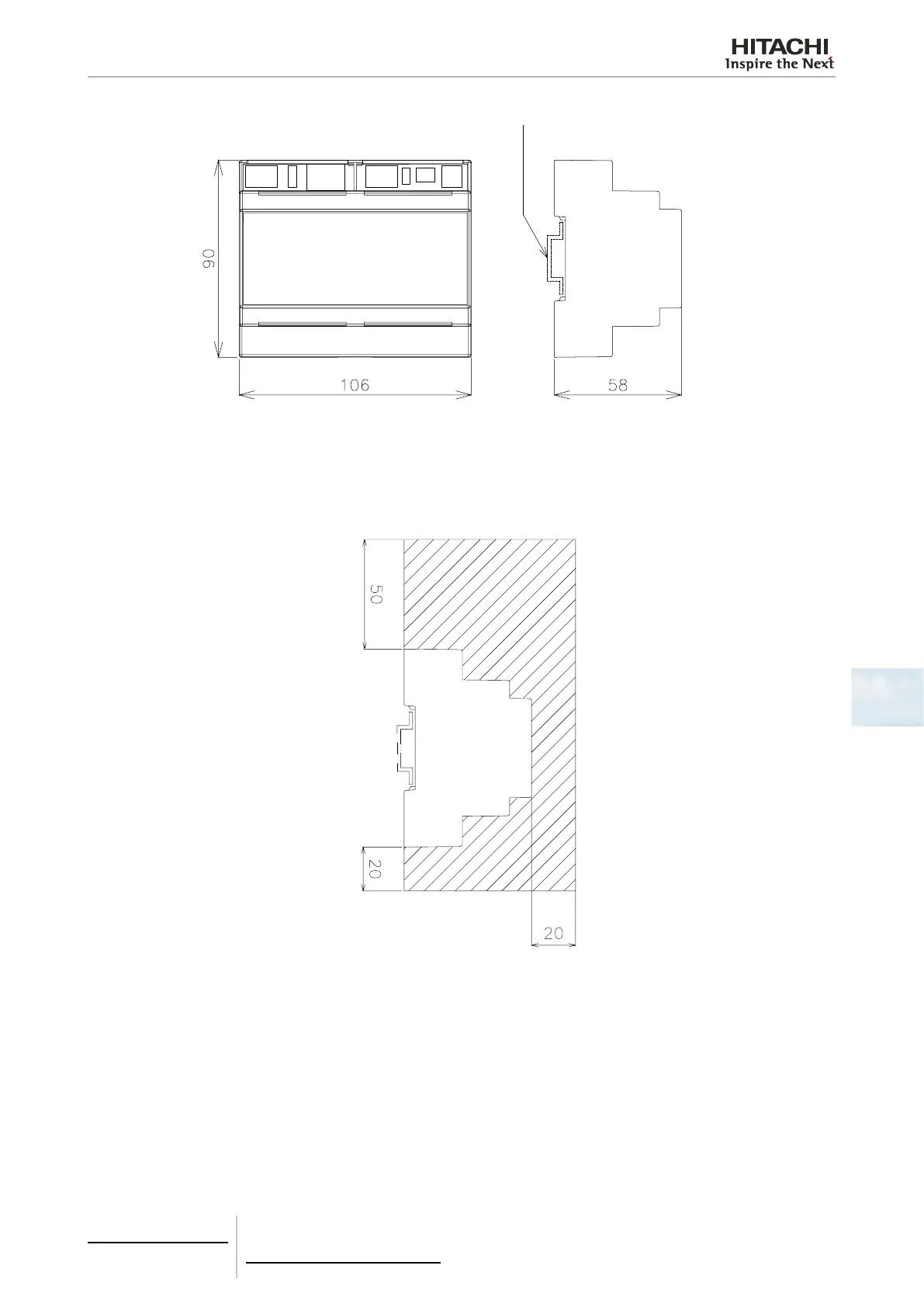

6.3.2.5 Dimensional data
Rail DIN 35 mm
(mm)
6.3.2.6 Installation space
Keep free the grey area for the correct operation of the device.
(mm)
