8
8.1.2 Installation
8.1.2.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units themselves,
as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m

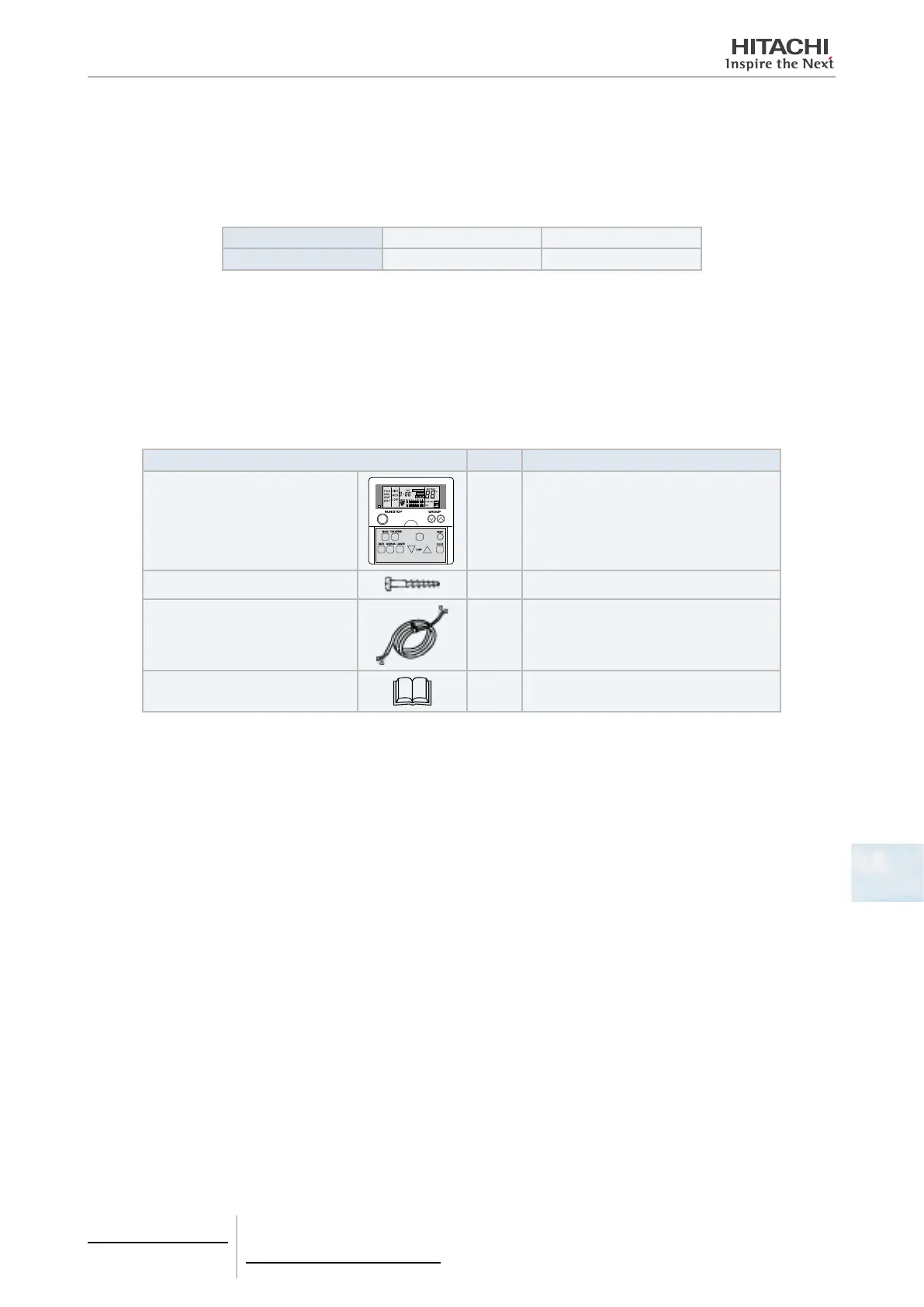

8.1.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
Control timer
1 For controlling system operation.
M4x16L screws
2 For îš¿xing the bracket to the wall
Cable (1 m)
1 For remote control-timer connection.
Installation and operation manual
1 Installation and operation unit instructions.
8 Control support devices
PSC-A1T
TCGB0106 rev.0 - 12/2014
695
