4 Individual remote controls
Receiver kit for wireless remote control
TCGB0106 rev.0 - 12/2014
214

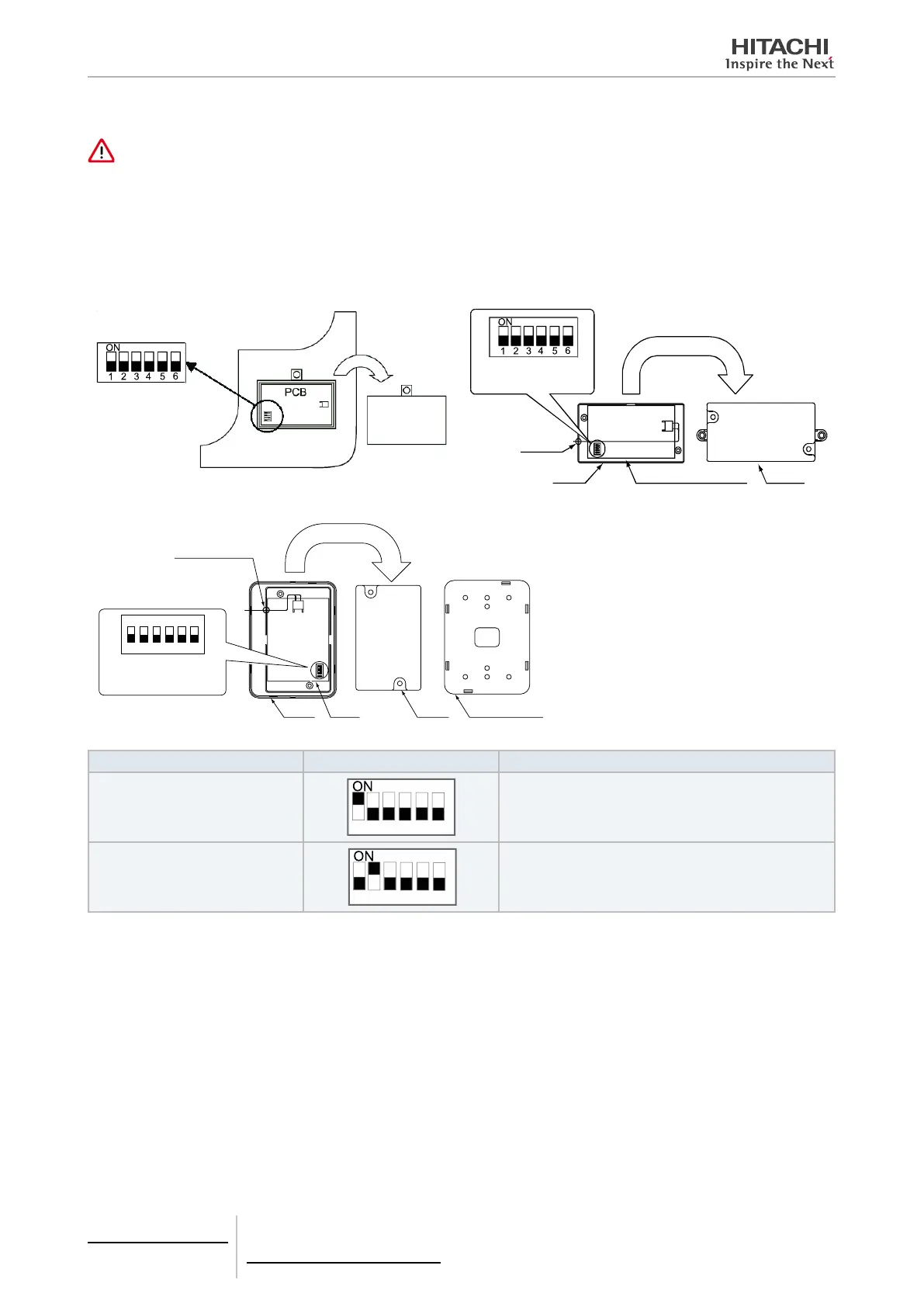

4.5.9 Optional functions
DANGER
Turn OFF the power source completely before performing the dip switch setting for receiver kit. If not, it may cause an electric
shock.
DIP switch for optional functions (SW3)
Open the cover by removing the two screws in order to access the following functions.
PC-ALH(N) and PC-ALHC PC-ALHD
Dip Switch
(SW3: Factory Supplied)
Rear side of Indoor unit
Cover
Remove the screw
Dip Switch
(SW3: Factory Setting)
Hole for cable
Cover
Printed circuit board
Case
Remove two
screws and
open the case
PC-ALHZ
3412 56
ON
RUN
DEF
FILTER
TIMER
COOL
HEAT
EMERGENCY
PCB
Dip switch (DSW1)
(Factory-setting)
Cover
Outlet for
connecting cable
Case
Fixing braket
(1) Remove the xing bracket.
(2) Remove 2 xing screws to
open the case.
Operational function DIP switch adjustment Details
Secondary receiver adjustment.
1 2 3 4 5 6
Change the Main (OFF setting) / Sub (ON setting) remote
control switch used for two remote control system.
Identifying of indoor units
1 2 3 4 5 6
In case of ON setting, it performs as B mode (Identifying of
indoor unit) of wireless remote control switch.
To Next Page
