6.1.3.3 Description of the parts

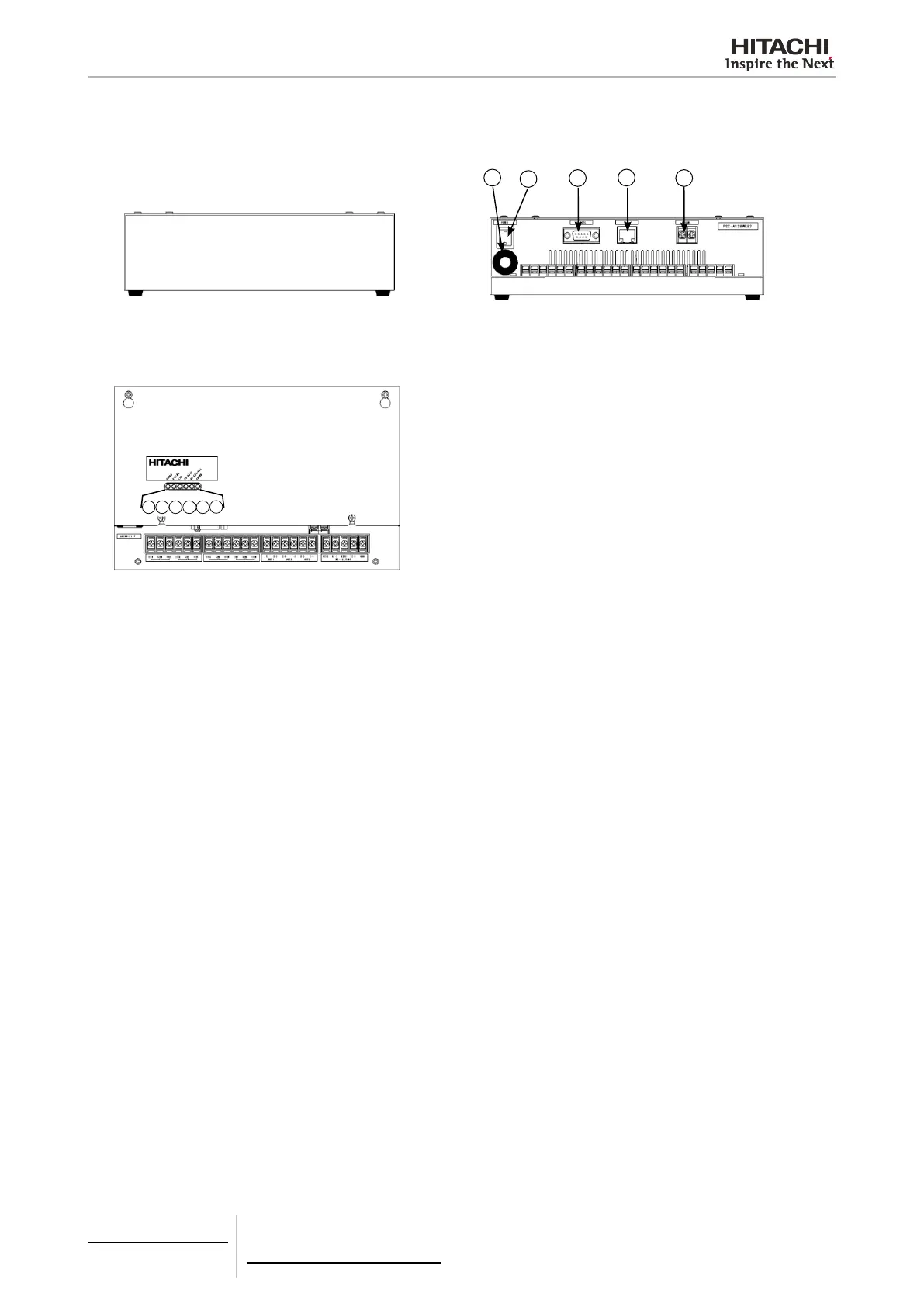

Rear view Front view from “A”
11
10
2
1
3
4 5 6 7 8
9
H-LINK connector. Connected to the air conditioning
equipment.
LAN connector. Connected to the local area network.
Power supply cable. Power supply input.
POWER: LED power indicator.
H-LINK: LED indicator of transmission from the air condition-
ing equipment.
RS-422/RS-485: Transmission LED (not used)
RS-232-C: LED indicator of transmission (not used)
LAN: LED indicator of LAN transmission. The LED is ON
when adjusting the LAN link.
ERROR: LED indicator of abnormality. Blinks in case of error.
Unused connectors.
ON/OFF button.
6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
