2.2.4.5 FIDELIO interface

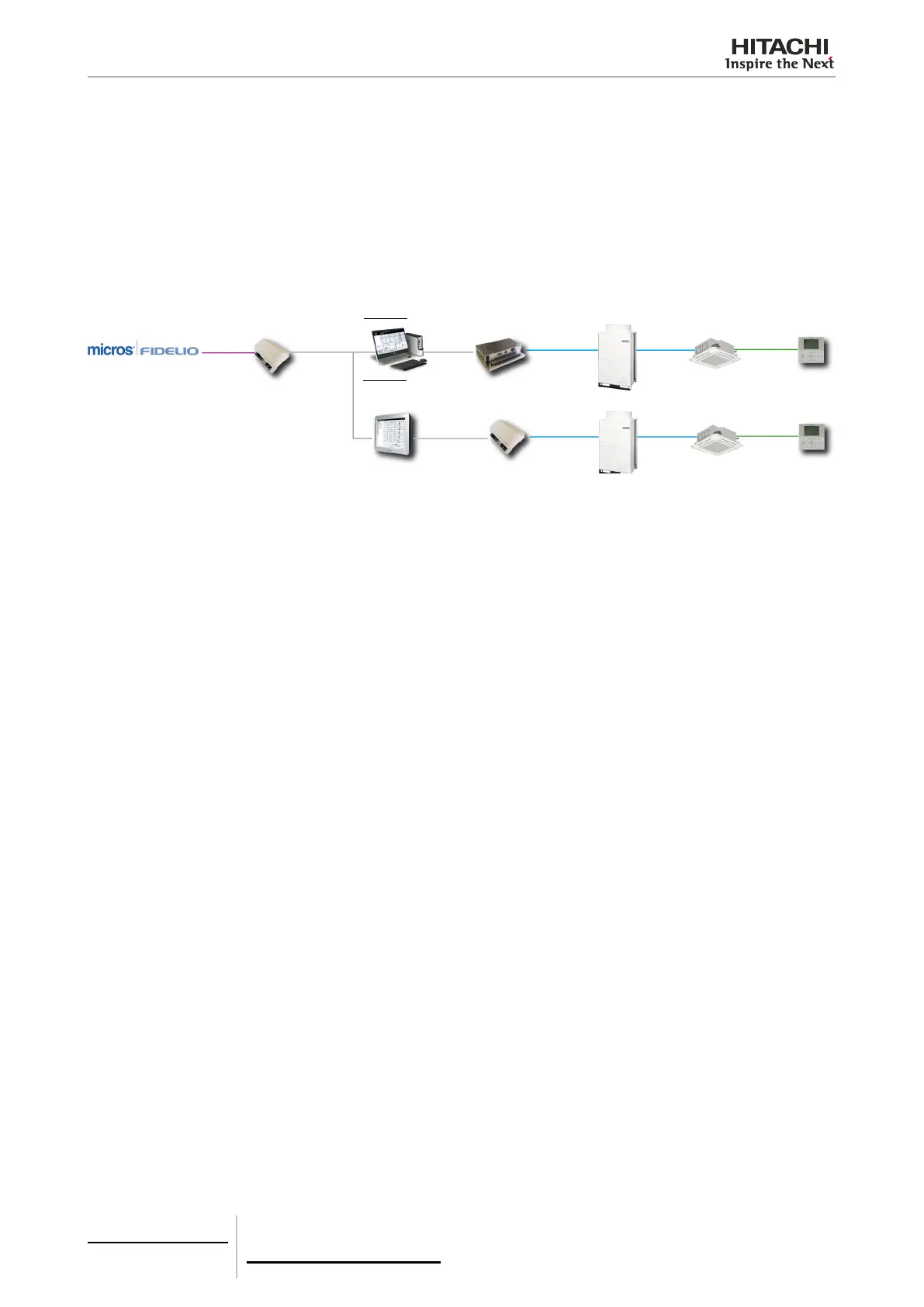

The integration of HITACHI systems into a FIDELIO installation can be carried out by using a double gateway system:
• HITACHI MODBUS gateway: HC-A(8/64)MB, PSC-A160WEB1 or CSNET Manager with HC-A64NET which provide
HLINK data into a Modbus protocol.
• Standard MODBUS-FIDELIO gateway available in the market which transfers MODBUS data into FIDELIO data.
There are wide several solutions available in the market which should allow the transfer of MODBUS collected data by
HITACHI gateways into FIDELIO data. Anyway, HITACHI recommends the solution offered by Intesis Software company.
CSNET MANAGER
(LT/XT)
HC-A64NET
PSC-A160WEB1
MODBUS-FIDELIO
GATEWAY
ETHERNET
ETHERNET
ETHERNET
OPTION 1
OPTION 2
Up to 640 (160x4)
indoor units
Up to 512 (64x8)
indoor units (*)
Option 1: CSNET WEB hardware interface (PSC-A160WEB1)
This option allows to take advantage of the CSNET WEB functionality.
Option 2: CSNET Manager and its H-LINK gateway (HC-A64NET)
This option allows to take proîš¿t of the great CSNET Manager functionality, connecting it to its HC-A64NET gateway.
(*): Using CSNET Manager with other CSNET Managers or with CSNET WEB hardware (PSC-A160WEB1) the maximum
number of controllable indoor units is increased up to 1280 indoor units.
