Hitachi PSC-A1T - Dimensional Data; Installation Space; Installation Procedure

7 Gateways for building management systems
HARC-BX E
TCGB0106 rev.0 - 12/2014
671671
7

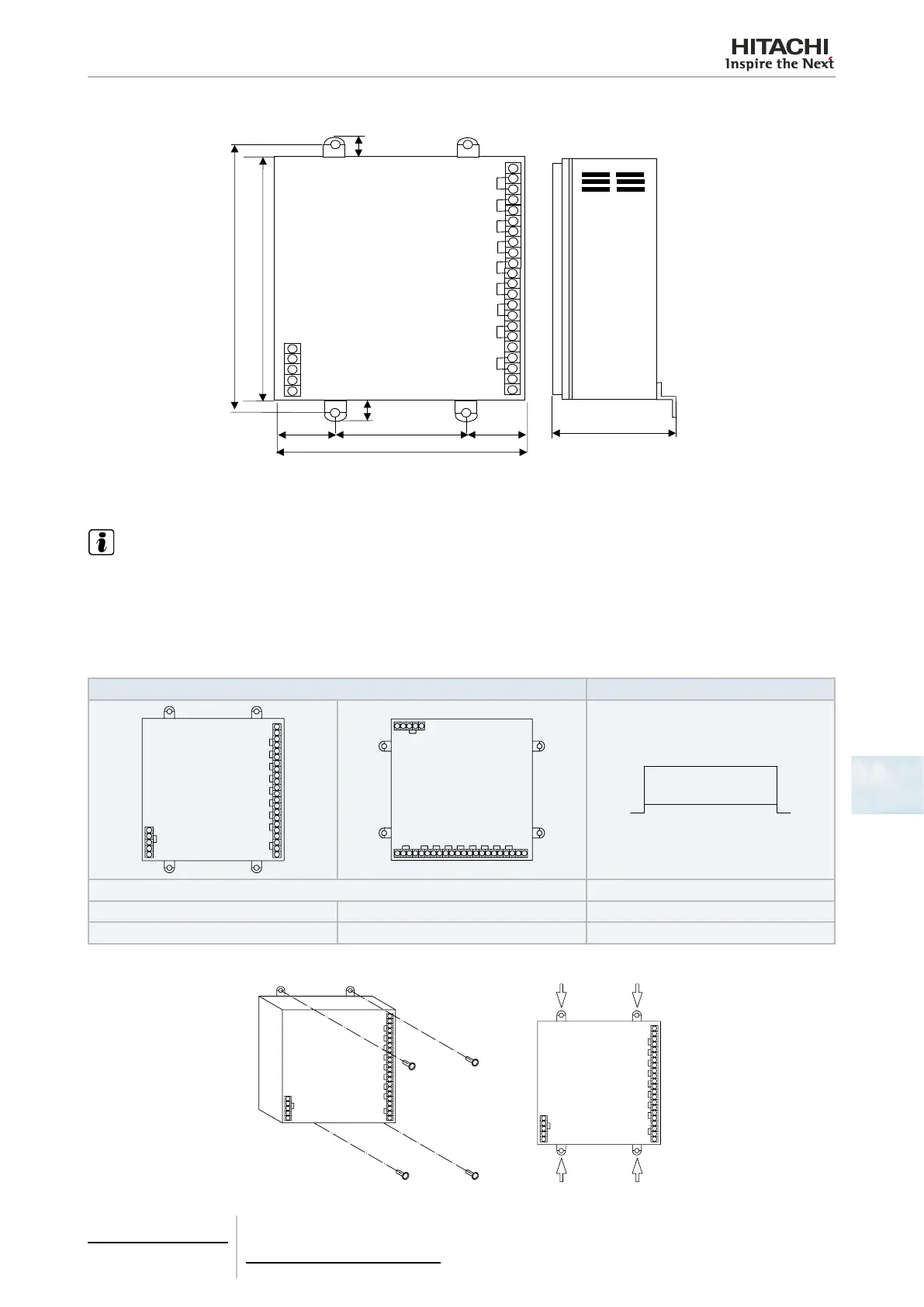

7.4.2.5 Dimensional data
240
150 4545
128.5
30
30
225
255
HARC-BX E
(mm)
HITACHI BMS Interface
7.4.2.6 Installation space
NOTE
• Bear in mind the safety summary warnings when selecting the installation site.
• The installation site should be located in a place with an earthing connection.
7.4.2.7 Installation procedure
1 Install the HARC-BX E, placing the screwed terminal board on the right-hand side.
Upper view Side view
Lower Horizontal installation
OK X OK
Correct Incorrect Correct
2 Fix the HARC-BX E to the wall with 4 M4 eld supply screws.
