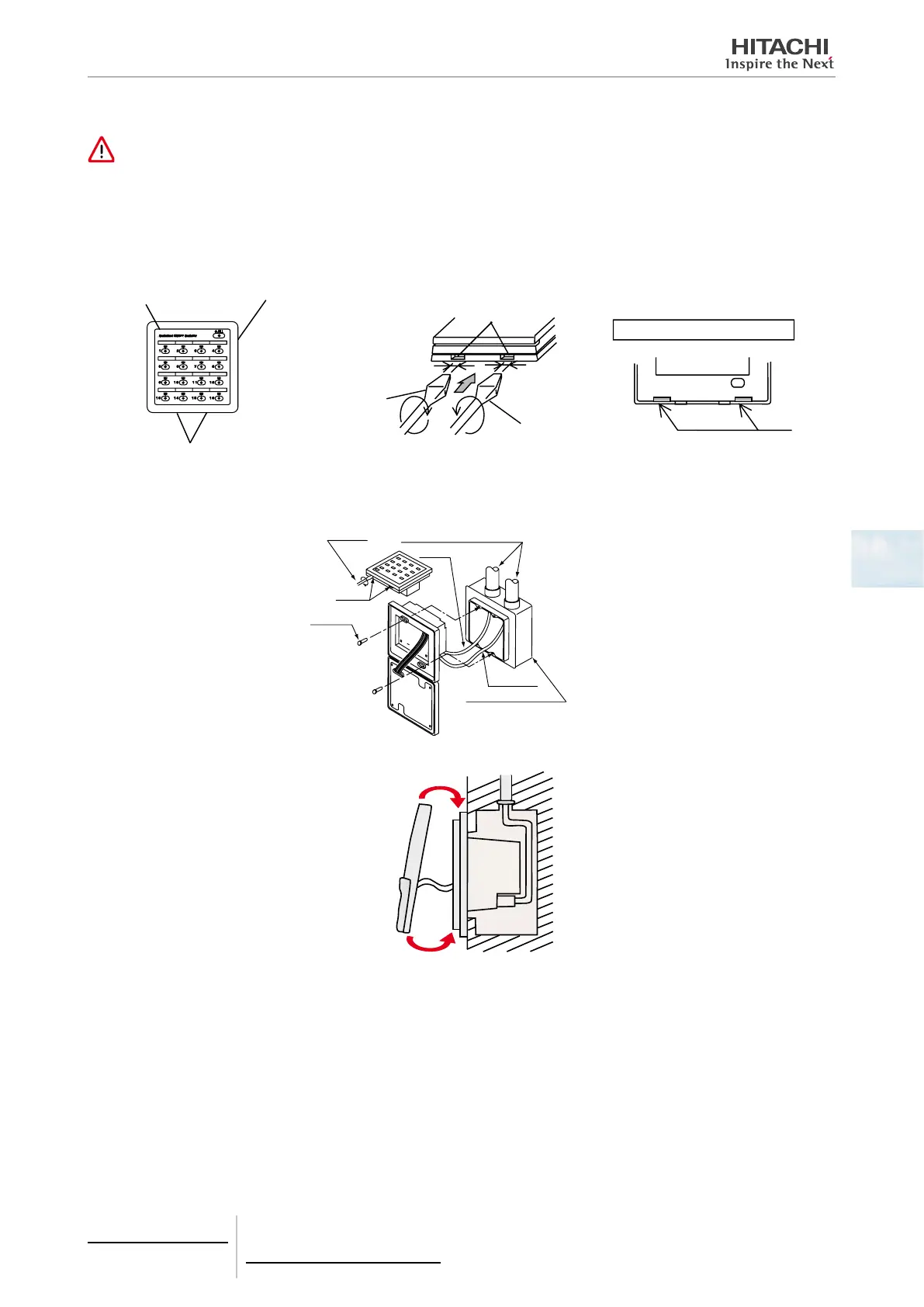

5.4.2.6 Installation procedure
DANGER
Ensure to îš¿x the centralised ON/OFF controller according to this manual. The incorrect installation will cause personal injury
due to the fall of the centralised ON/OFF controller
1 Insert the edge of the screwdriver into the slot parts at the bottom of the case, push and turn the screw-driver and
remove the control part from the power supply part. Do not insert the screwdriver into the nail near the slot part, or the
nail will be damaged.
Control part
Power Supply Part
Slot part
Screw
driver
Screw
driver
Approx. 6 mm
Slot Part
Figure seen from bottom side
Nail
2 Attach the power supply part to the switch box.
Do not run the power line and
the control line through the
same conduit tube
Screw driver
(2 pcs.)
Screw (x2)
Control line
Switch Box with cover
Power line
3. Attach the control part onto the power supply part. At îš¿rst, attach the upper side, and then the lower side.
(Field supplied)
5 Centralised remote controls
PSC-A16RS
TCGB0106 rev.0 - 12/2014
397
5
