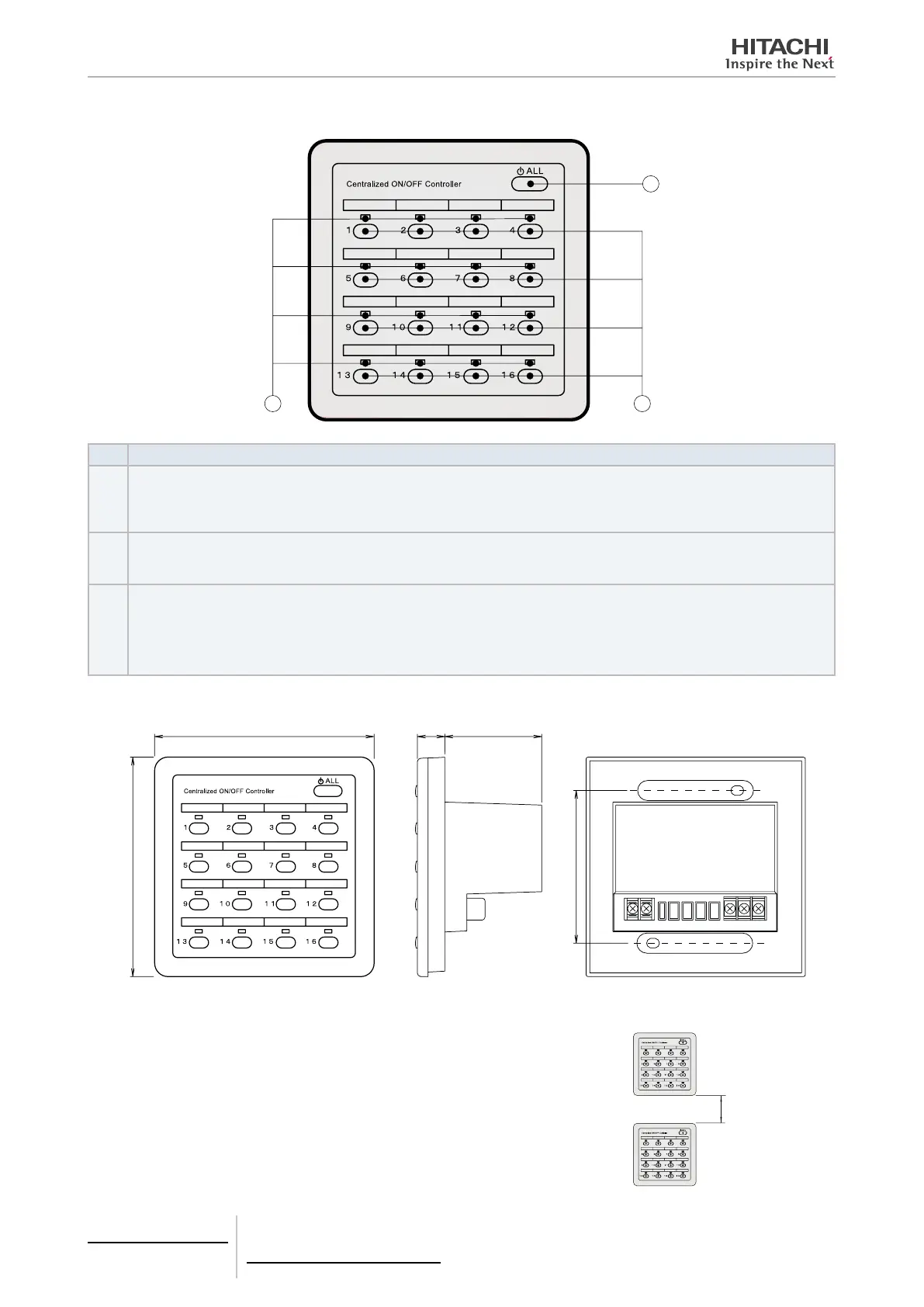

5.4.2.3 Description of the parts
23
1
No. Description

Simultaneous RUN/STOP Switch
This switch is for ordering the simultaneous operation/stoppage to all groups. Depressing this switch when there is any group in
operation, all the group is stopped simultaneously. Depressing this switch when all the group is stopped, all the group is started
operation simultaneously.

Individual RUN/STOP Switch
This switch is for ordering the operation/stoppage of the air conditioner. Depressing this switch when the air conditioner, which
is stopped, is started operation and the air conditioner in operation is stopped.

Individual Operation Lamp (Red)
The operation state of the air conditioner is indicated.
• ON: Operation
• OFF: Stoppage
• Flickering: Abnormal
5.4.2.4 Dimensional data
(mm)
53
83.5
120
120
16
5.4.2.5 Installation space
If several control units are to be installed in a vertical position, leave a distance of
at least 50 mm between them to allow the front cover to be opened and to insert
the tool for removing the control from its housing.
At least 50 mm
