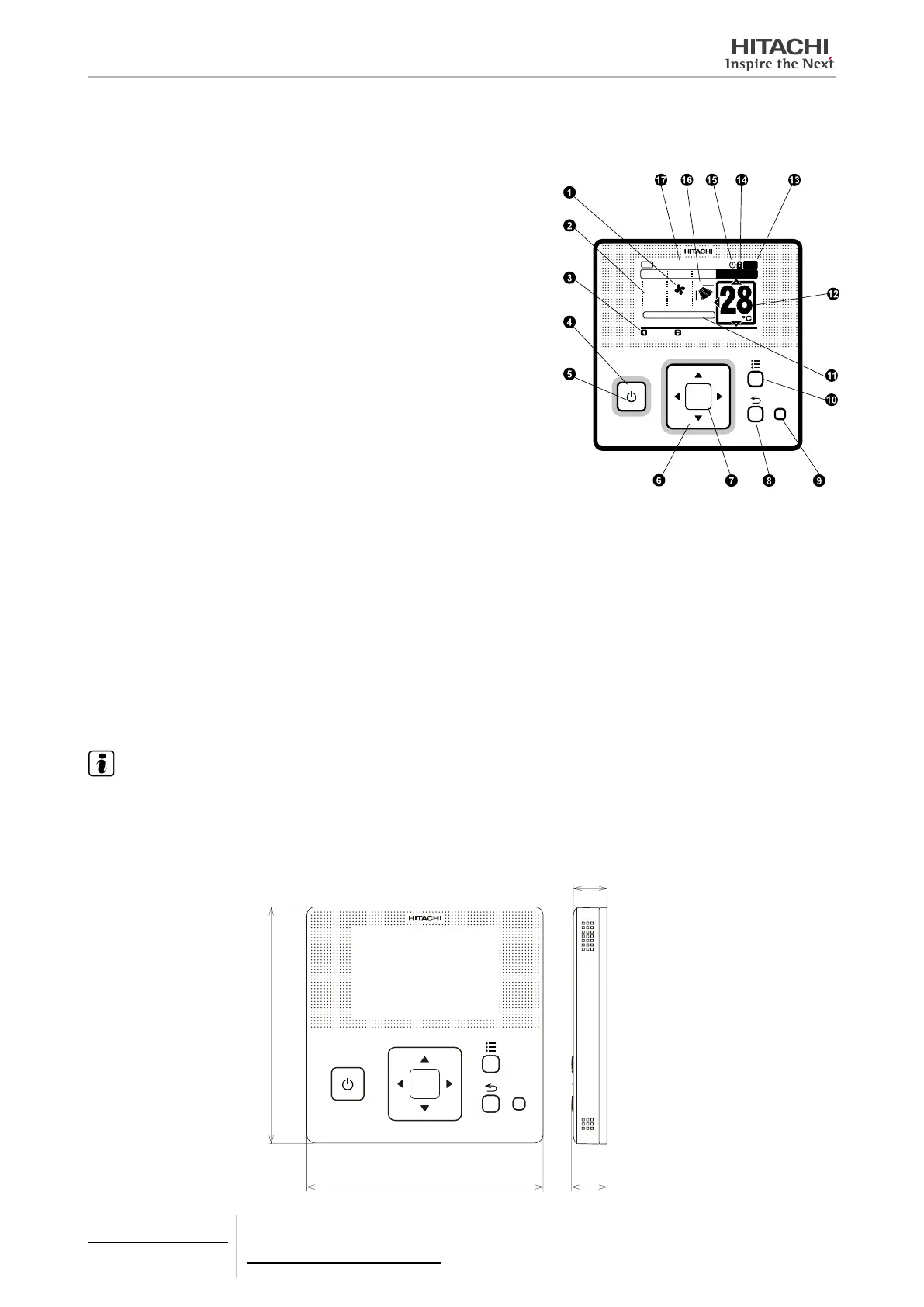

4.1.2.3 Description of the parts
Fan speed indicator (*):
Indicates the fan speed selected: H-HI, HIGH, MED or LOW
A/C
COOL
HIGH
LOUV. ADJ
Meeting Room
MODE SPEED LOUV. TEMP
FLTR
Motion Sensor is activated
OK
?
Model: PC-ARF
Operation mode Indicator:
The indications of “HEAT” and “AUTO” are indicated only for the heat pump
type models.
Operation Guide indicator
“Central Control” is indicated while the remote control operation is prohibited.
Run Indicator
It lights while the unit is operated, and it ashes in an abnormal conditions.
RUN/STOP button
ARROW Key
ENTER Key
RETURN button
To return to the previous screen.
HELP button
To display Help Menu.
MENU button
To display Menu.
MOTION SENSOR Indicator
It is indicated only for the air panel with motion sensor.
Setting Temperature Indicator
Filter Sign Indicator
It is indicated at the set period for lter cleaning.
Operation Lock Indicator
It is indicated when the operation lock function is set.
Schedule Timer Indicator
It is indicated when the schedule timer function is set.
Swing louver indicator
Room Name Indicator
NOTE
(*): The fan speed settings “HI-H” and (or) “AUTO” may not be available depending on the indoor unit type.
4.1.2.4 Dimensional data
120
17.9
OK
?
(mm)
4 Individual remote controls
PC-ARF
TCGB0106 rev.0 - 12/2014
62
