4 Individual remote controls
Receiver kit for wireless remote control
TCGB0106 rev.0 - 12/2014
210
4.5.8 Operation
4.5.8.1 Communication between wireless remote control and receiver kit
Sending commands from wireless remote control
• The operation commands are sent by pressing the required operation switch by facing the transmitter of the wireless
remote control switch toward the receiver of the indoor unit.
• When commands are sent from the wireless remote control switch, it should face vertically and be as close as possible
to the receiver kit. The capable distance for transmitting will get shorter in case that the transmitting angle is not vertical
to the receiver or an electronic type light is used in the room, etc.
• The distance for transmitting will get shorter due to battery consumption. In this case, replace the battery.
• The wireless remote control switch has directivity against the receiver. In case of receivers installed on the panel, the
distance for transmitting depends on the ceiling height. Refer to the table below about the distance. The distance may
differ depending on the building structure. Control the wireless remote control switch within the distance shown in the
table below.

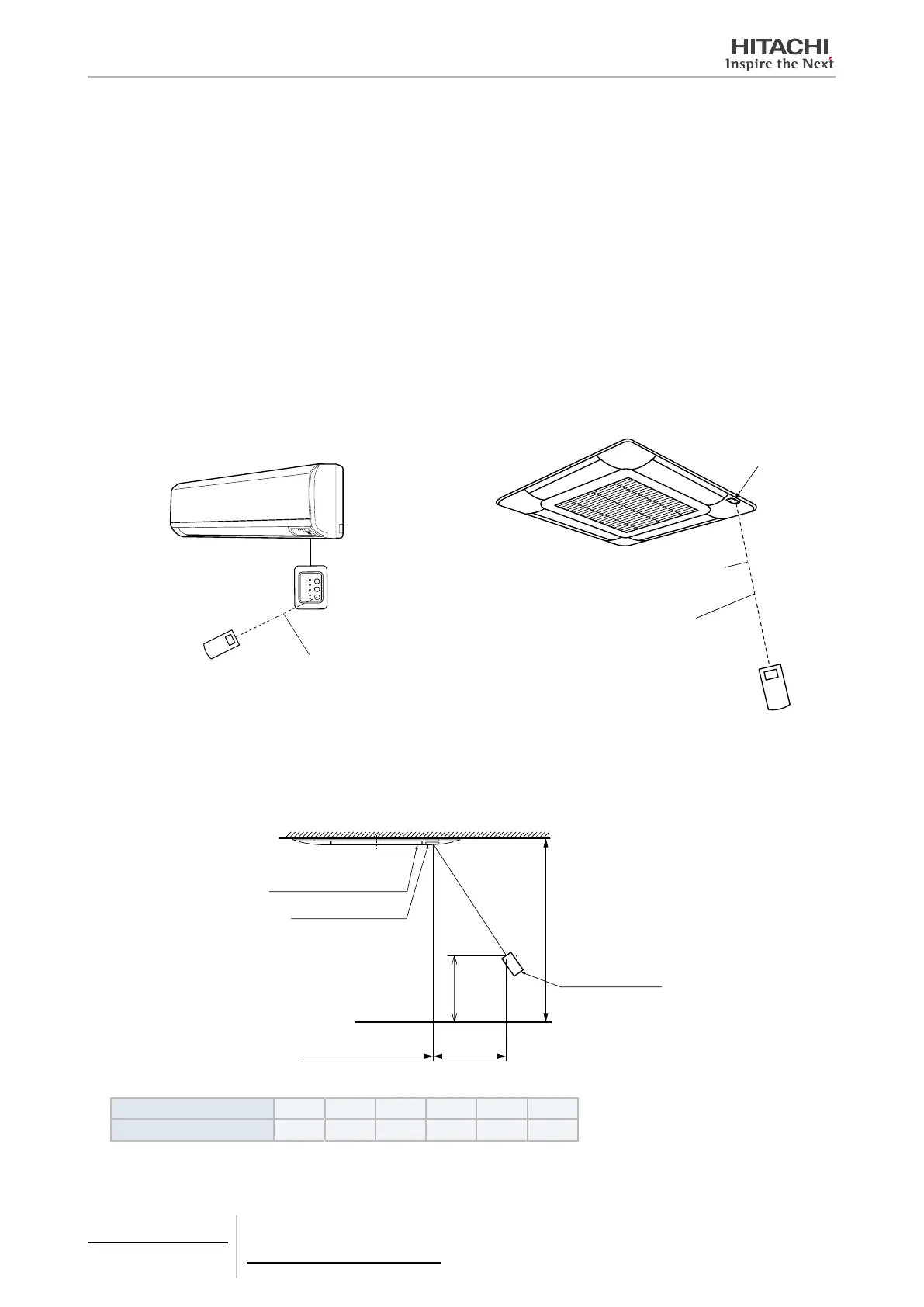

On the wall receiver kit On the panel receiver kit
COOL
HEAT
Receiver kit
(Receiver
part)
Capable Distance for
Transmitting: Max. 5m
Wireless remote
control switch
Receiver kit
(receiver part)
Capable distance for transmit-
ting Max. 6m (*)
Direct line between transmitter
and receiver
Wireless remote
control switch
(The gure shows for the wall type indoor unit (RPK)). (The gure shows for the 4-way casette type indoor unit (RPK)).
(*) The distance for transmitting differs depending on the ceiling
height. Refer to the table below about the detail.
Horizontal distance limit for receiver kit (in the case that height of wireless remote control from oor is 1 m):
1m
Wireless remote
control switch
Ceiling height
Ceiling
Indoor unit (air panel)
Receiver kit
Horizontal distance
Floor
• RCI-FSN3Ei
Height of indoor unit (m) 2.7 3.0 3.5 4.0 4.5 5.0
Horizontal distance (m) 2.9 3.5 4.0 4.5 4.5 4.5
