7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
647647
7

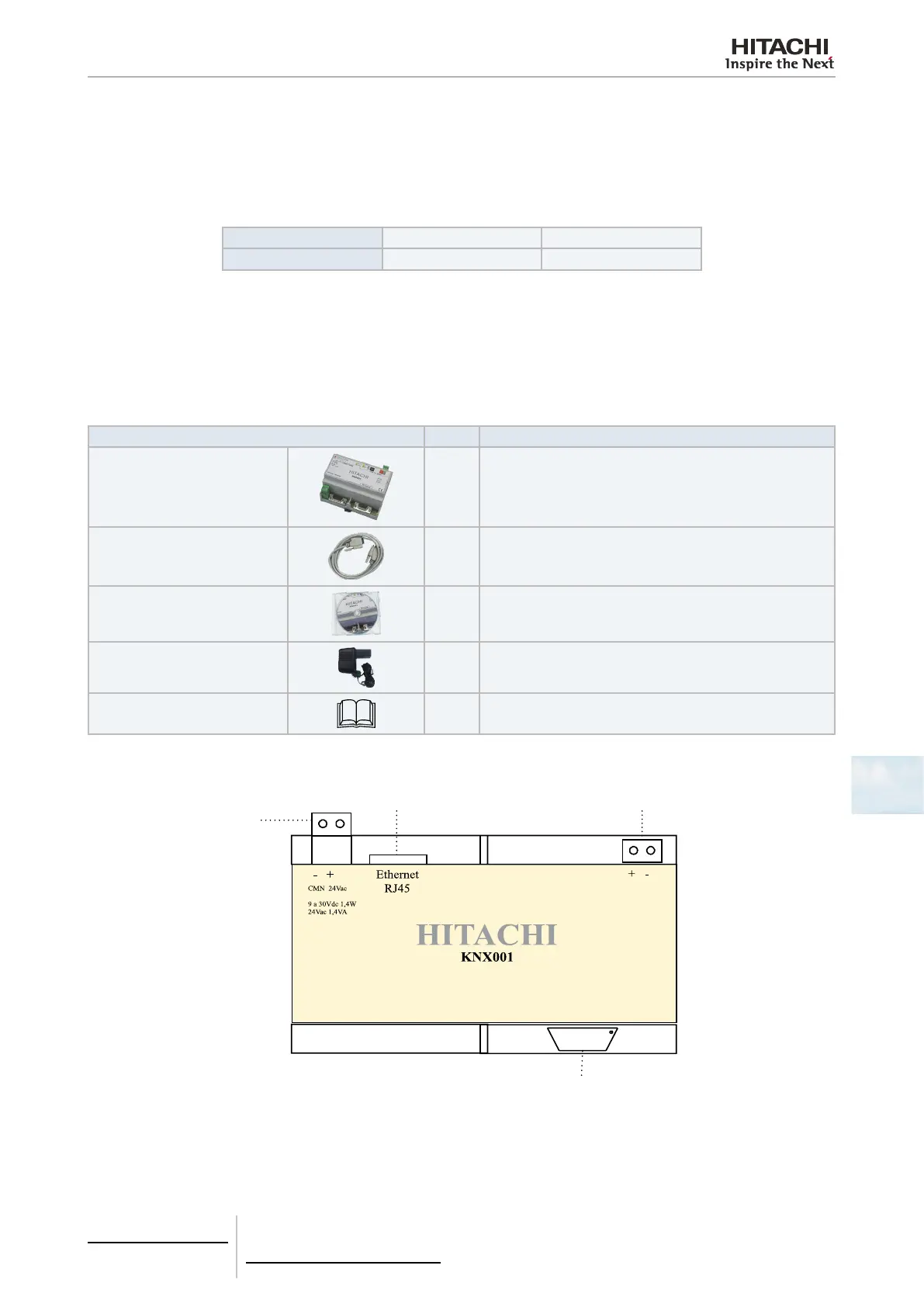

7.3.2 Installation
7.3.2.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units themselves,
as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m
7.3.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
KNX001 device
1 To control the system operation using this KNX gateway.
Console cable
1 DB9 male - DB9 female (1,8 m length).
CD ROM
1
Software conguration, compatible with OS Windows® and
user manual.
Power adaptor
1 12 V DC, 300 mA
Installation and operation manual
1 Installation and operation unit instructions.
7.3.2.3 Description of the parts
1
4
32
1. Power Supply Terminals
2. CSNET WEB Port
3. KNX TP-1 Port
4. PC-Console
