Hitachi PSC-A1T - Installation; Installation on Site Selection; Components List

5.2.2 Installation
5.2.2.1 Installation on site selection
Select a suitable place for handling and determine the installation place of the central station with the customer’s accept-
ance.
Do not install the central station at such places as:
- Where children can touch.
- Where the air from the air conditioner is directly discharged.
Before installing the controller, prepare the following items.
Parts Specication
Switch Box JIS switch box for 2 switches (with cover) (JIS C 8340)
Power Supply Cable
Cable specication: 1.25 to 2 mm
2
Recommended cable: 600V CV, CCV, CEV
H-LINK Cable (For control)
Cable SPEC: 0.75 to 1.25 mm
2
Recommended cable: JKEPV-S, JKEV-S, CVV-S, CVV, 600V VCT
* The recommended cables are the model name of Hitachi Cable, Ltd.

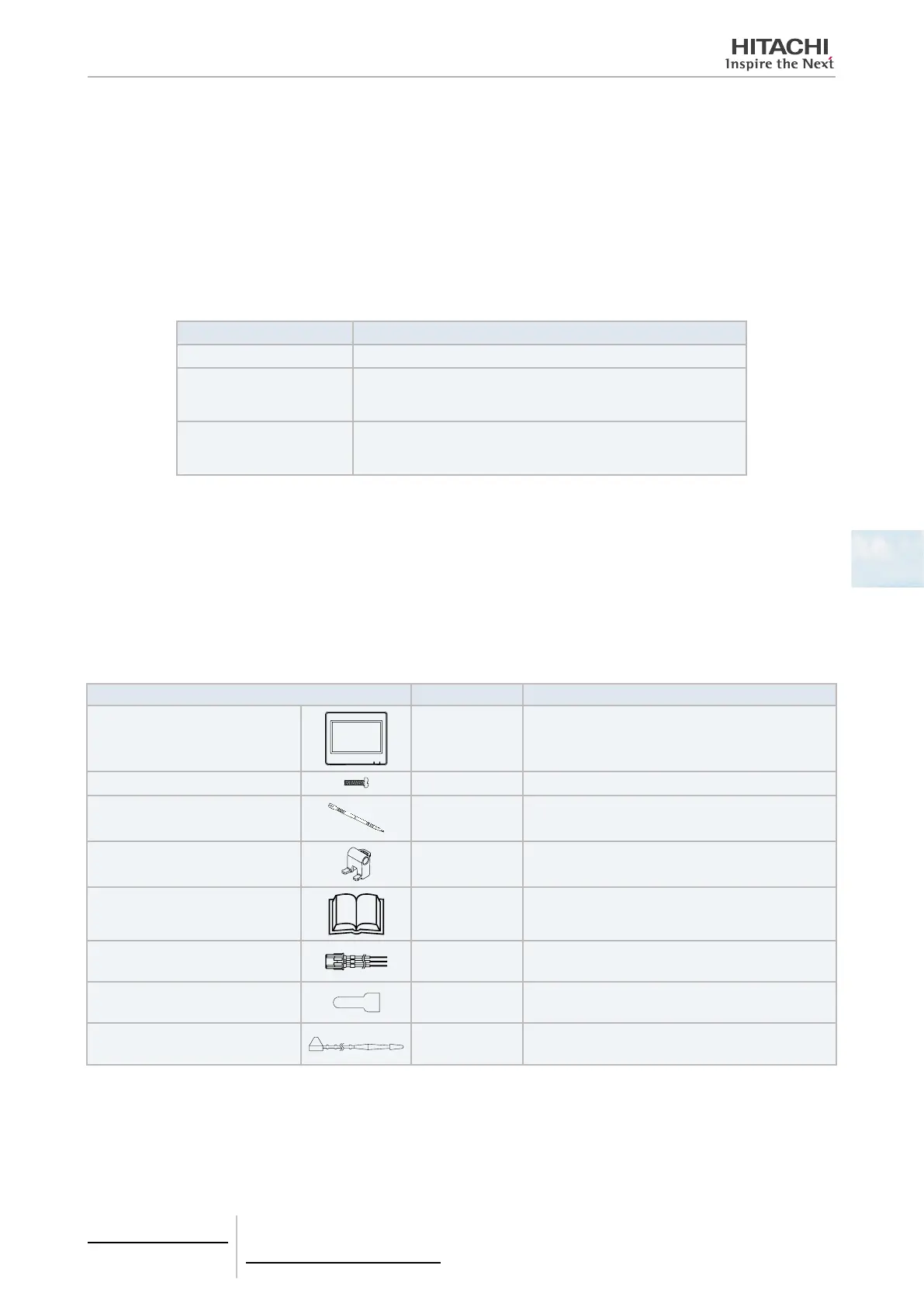

5.2.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quantity Comments
Central station
PSC-A32MN
運転/停止 電源
1
For controlling system operation
M4x16L screws
4
For xing the central station.
Touch pen
2
For activating/deactivating the touch options on the
screen.
Touch pen holder
1
For holding the touch pen on the central station.
Installation and operation manual
1
Installation and operation unit instructions.
Connector Cord
3
For using external input/output functions (CN1~3).
Closed End Connector
9
For closing the wire end of the connection cord.
Nylon Band
3
For xing the cables.
