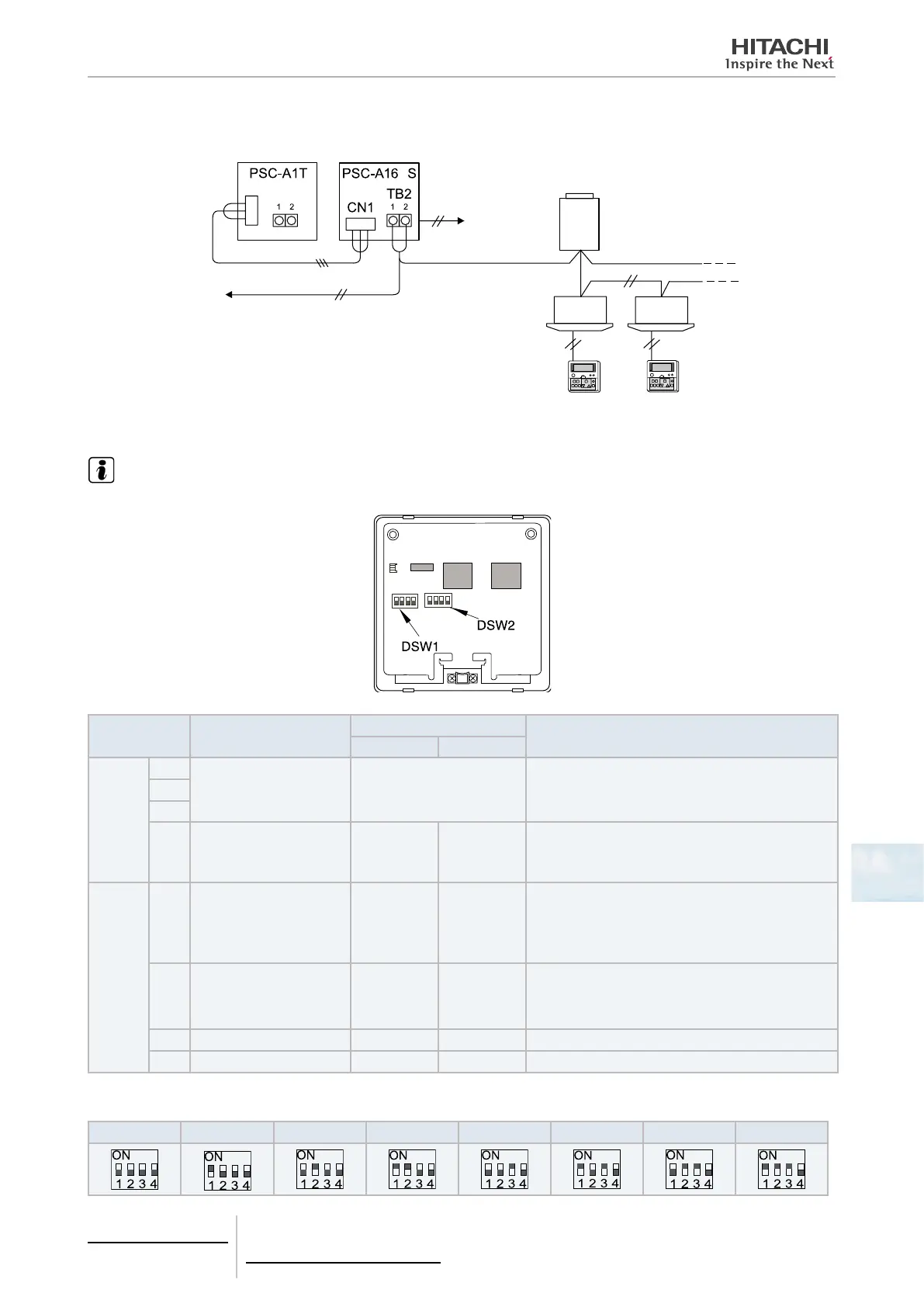

PSC-A1T timer combined with PSC-A16RS centralised ON/OFF controller
Set DSW1-4 pin OFF and DSW2-2 pin to ON position on the PSC-A1T.
R
Connector
220 VAC or 240 V
power supply
Outdoor unit
Indoor units
Remote control
switch
Available for H-Link con-
nection (to connect to the
indoor or to the outdoor unit
terminal boards 1 and 2)
Twisted pair cable
1P - 0.75 mm²
(max. 1000 m)
To TB2 of other
central stations
Accessory cable (1 m)
8.1.3.2 DIP switch setting
NOTE
The switches settings are all in OFF position before shipment.
Pin no. Setting content
DSW setting
Comments
OFF ON
DSW1
1
Set address Consult the following table
The setting needs only be made when the central
station (PSC-A64S) is used in combination. Set the
address of the central station that you wish to control.
2
3
4
For use in conjunction with
another remote control
PSC-A64S
and
PSC-A16RS
PC-ARH and
Wireless
receivers
Set pin no. 4 to ON if using the PC-ARH remote con-
trol or the wireless receiver kits in combination.
DSW2
1
Set the remote control
functional limit after the
scheduled stoppage time
Setting una-
vailable
Setting avail-
able
This setting is only available when used in conjunction
with PSC-A64S, PC-ARH or wireless receiver kit. The
remote controls will not run after the scheduled stop-
page time is set, and will only become available after
the start-up command.
2
For use in conjunction with
another remote control
PSC-A64S
PC-ARH,
Wireless
receivers and
PSC-A16RS
Set pin no. 2 according to the remote control used
together.
3 No function - - Do not change the “OFF” setting.
4 No function - - Do not change the “OFF” setting.
Address setting with DSW1
Address 1 Address 2 Address 3 Address 4 Address 5 Address 6 Address 7 Address 8
8 Control support devices
PSC-A1T
TCGB0106 rev.0 - 12/2014
