TCGB0106 rev.0 - 12/2014
175
4
3 Set the operation mode by pressing the “MODE” switch.
OFF
°C
Me
TIMER
COOL
Test run mode is
under operating
4 Operate the test run by pointing the transmitter towards the receiver of the indoor unit and press the
“RUN/STOP”
switch. When the commands are received by the indoor unit, the “
” lamp (yellow) of the receiver will come on brief-
ly. Check the commands are received well and the mode selected 3) is set correctly.
In the test run mode, the red lamp (RUN) of the receiver is turned ON and the green lamp (TIMER) ashes (0.5 sec-
onds ON
0.5 seconds OFF) (*2).
NOTE
• In the case that the “ ” lamp (yellow) does not turn ON, the controls may not have reached the receiver. Send the commands again.
• (*2) In the case of RPK model, “TIMER” lamp is turned ON without ashing.

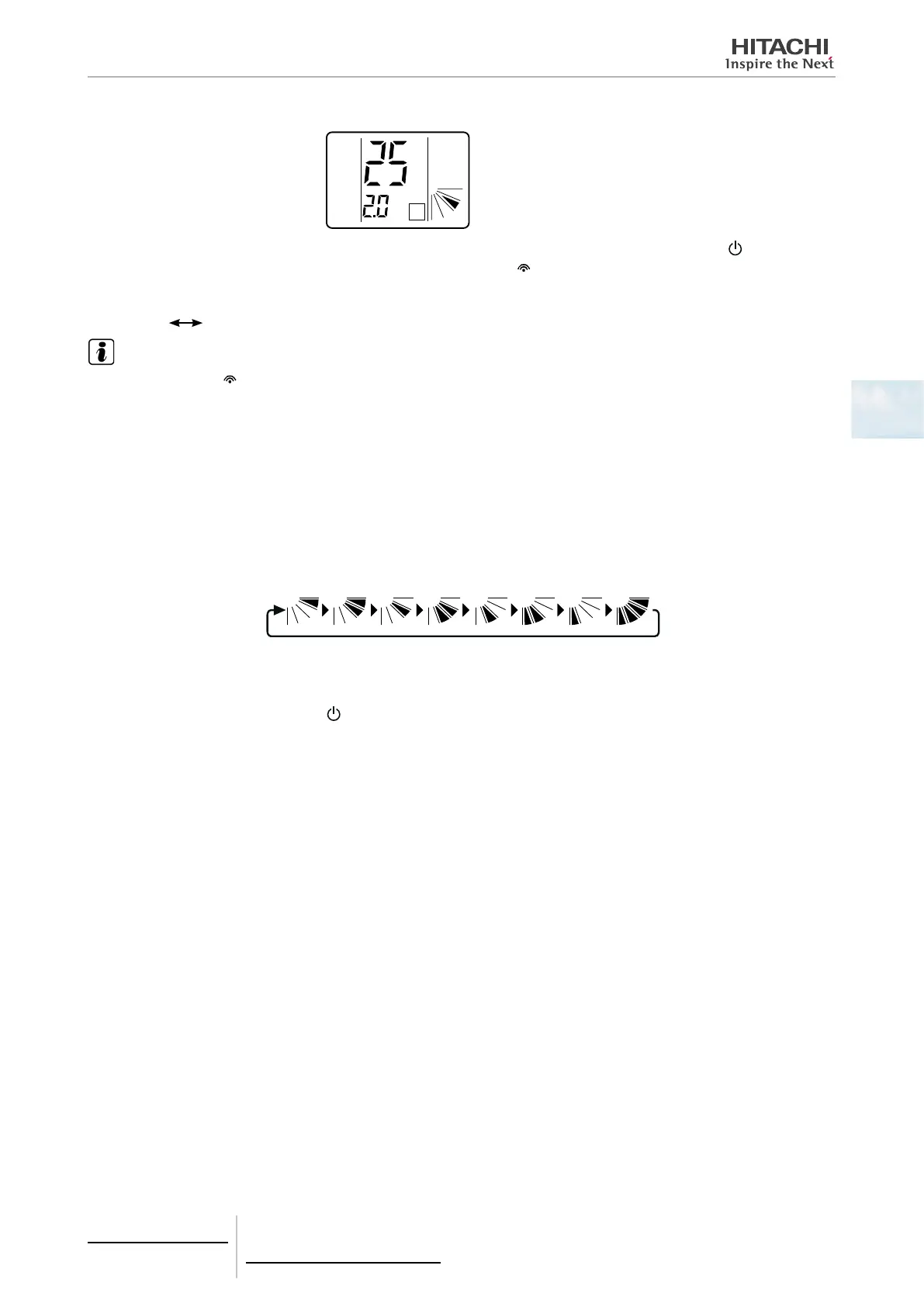

5 Adjust the angle of the air louver as follows.
The air louver has a mechanism for the auto-swing function.
Do not move the louver by hand forcefully.
a. Select the FAN mode by pressing the ‘MODE’ switch.
b. b. Set the louver angle by pressing the ‘LOUVER’ switch. The louver direction is changed as follows. (For heating
and fan operation).
LCD Indication
6 Stop the test run
a. Test run is stopped after 2 hours automatically.
b. Test run is stopped by pressing
“RUN/STOP” switch again. To complete test run, cancel the remained timer indi-
cation by pressing the “CANCEL” switch.
After Test Run is nished, check that the red lamp (RUN) and the green lamp (TIMER) are turned OFF.
