4 Individual remote controls
Receiver kit for wireless remote control
TCGB0106 rev.0 - 12/2014
208
Installation procedure
DANGER
• Turn OFF the power source completely before performing the dip switch setting, installation work and electrical wiring work
for receiver kit. If not, it may cause an electric shock.
• Perform securely the installation work referring to this installation manual. If the installation is not completed, it may cause
injury by falling down the receiver kit.
• Do not install the receiver kit where the ammable gases may generate or enter. It may cause heat generation or a re.
• Perform securely the electrical wiring work. If the electrical work is not completed, heat generation at the connection, a re
or an electric shock may occur.
• Make sure that the electrical wires are securely xed in order not to apply an external force to the terminal connections of
the wirings. If xing is not completed, it may cause heat generation or a re.
CAUTION
• When the receiver kit is attached near lighting which generates the ambient light, it may not receive the signal from the wireless remote
control. Pay attention to the installation position of receiver kit.
• Do not run the wire for receiver kit and wire of 220-240V (power source wire) in parallel. It may cause malfunction of receiver kit by
noise.
1 Install the wireless receiver kit and indoor unit at the same time.
2 If installing the wireless receiver kit after the indoor unit, unplug the power source from the indoor unit.
3 Make sure the distance between the wireless receiver kit and indoor unit is less than 5 metres.

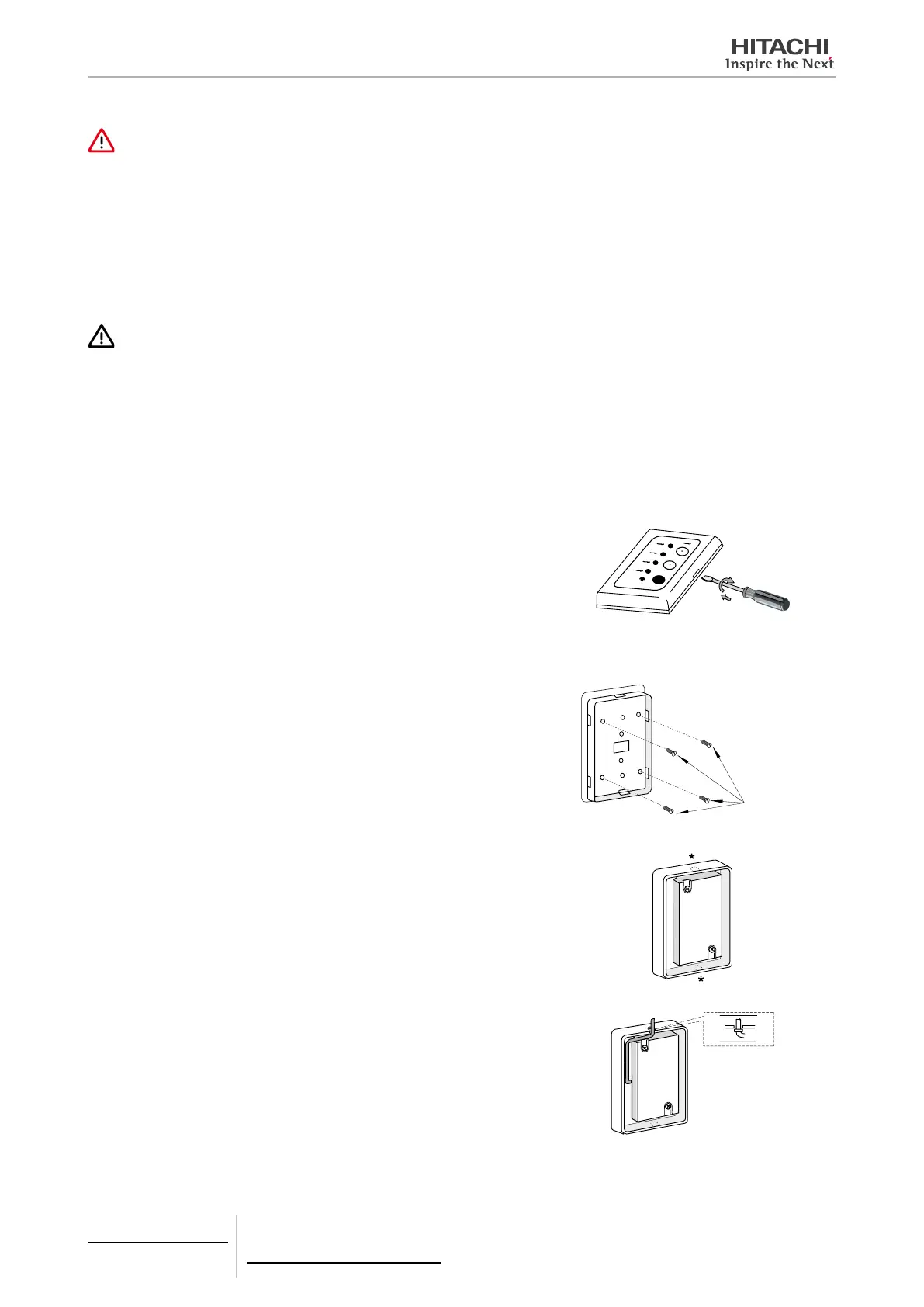

4 Remove the cover using a at-head screwdriver.
5 Install the wireless receiver kit on the wall or ceiling, as shown below:
In cases where the remote control cable is exposed
a. Mount the wireless receiver kit xing bracket with the screws (A) at
the 4 positions.
Screw (A)
b. Cut one of the pre-drilled holes (*) on the cover.
c. Run the cable through the groove and pull it out through the pre-
drilled hole.
To Next Page
