NOTE
• Turn OFF the power supply when setting the dip switches and rotary switch. Do not touch directly the printed circuit board and metal
part to avoid the central station malfunction.
• The central station is reconnected to H-LINK/H-LINK II automatically when change the setting of H-LINK or H-LINK II.
• When same central station are connected to H-LINK with incorrect DIP switch setting, then “63” alarm will be indicated in the central
station. In this case, turn OFF the power supply for all central control devices, and check the dip switch settings of each central control
device. After that, restart central control devices.
• (*): When using several central stations at the same time, set the values of each “RSW1” not to overlap.
DSW1 setting
Combination
of PSC-A64GT
with other central
controllers
Other central
controllers
Name Model
DSW1 DSW2 DSW3 DSW4
Central Station EZ PSC-A64GT
OFF OFF OFF OFF
Central Station mini PSC-A32MN
OFF OFF OFF OFF
Central Station PSC-A64S
OFF OFF OFF OFF
Centralised ON/OFF
Controller
PSC-A16RS
OFF OFF OFF OFF
BMS Gateways
HC-A(8/64)MB
Not compatible
HC-A16KNX
Not compatible
KNX001
Not compatible
HARC-BX E (A/B)
Not compatible
CSNET
CSNET Manager LT
Not compatible
CSNET Manager XT
Not compatible
CSNET WEB (1)
OFF OFF OFF OFF
Without other central controllers
OFF OFF OFF OFF
(1)Check compatibility limitations in CSNET WEB section.
2

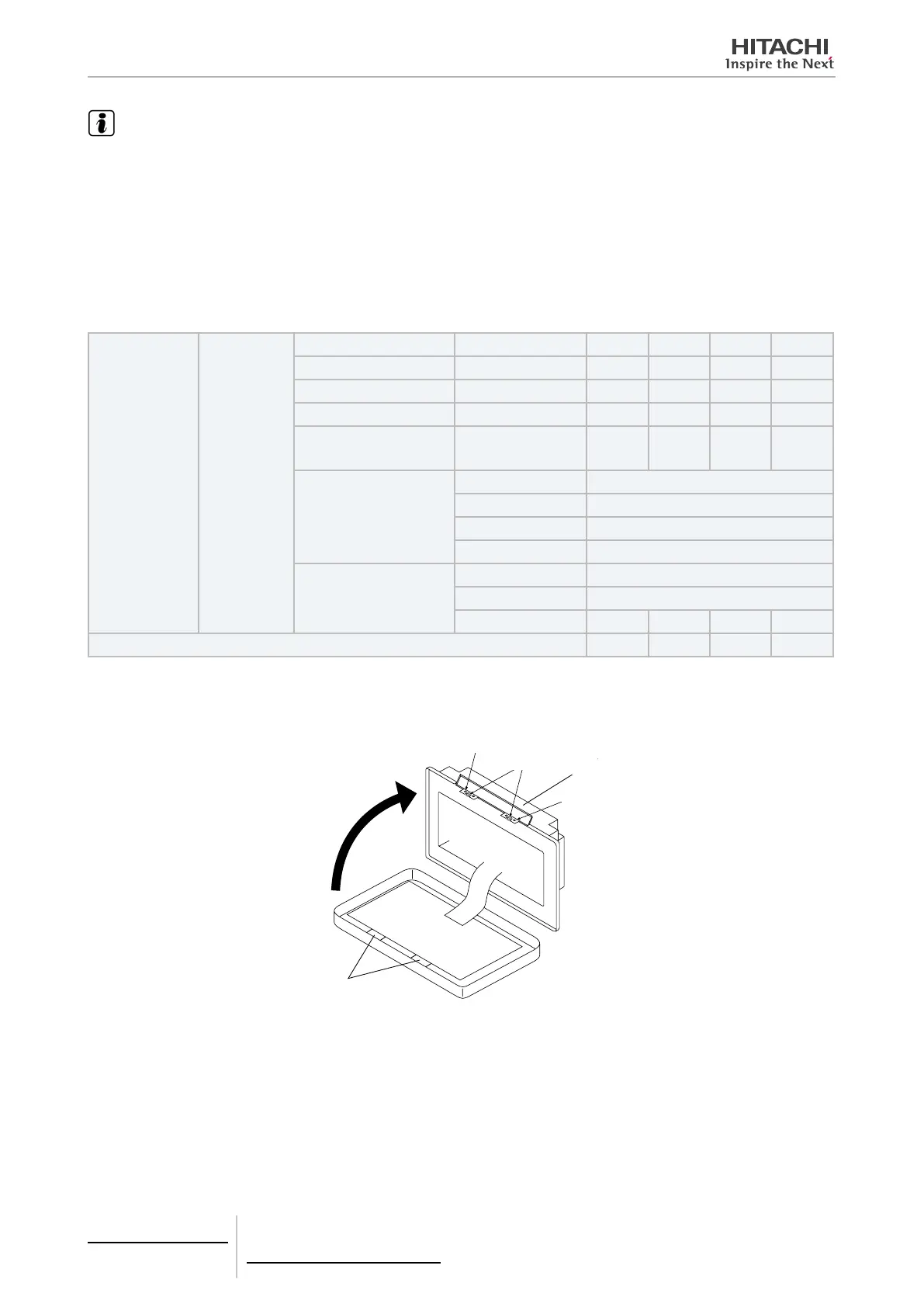

Close the unit case until hearing a snapping sound, and make sure that the front and rear parts of the case close fully.
At this time, check that connection bands are not trapped between the front and the rear parts of the case.
Catch for xing
Convex part
Top
cover
Catch
for x-
ing
Hook
5 Centralised remote controls
PSC-A64GT
TCGB0106 rev.0 - 12/2014
226
