2 Control solutions
H-LINK II Speciîš¿cations
TCGB0106 rev.0 - 12/2014
2626
Therefore, considering the previous maximums and the number of PSC-5HR devices, the maximum number of indoor units
with one central control is shown on the following table and graphic.
1 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
0 PSC-5HR
64 160 160 160 160 156 152 148 144 140 136 132 128 124 120 116 112
1 PSC-5HR
64 156 152 148 144 140 136 132 128 124 120 116 112 108 104 100 96
2 PSC-5HR
64 140 136 132 128 124 120 116 112 108 104 100 96 92 88 84 80
3 PSC-5HR
64 124 120 116 112 108 104 100 96 92 88 84 80 76 72 68 64
4 PSC-5HR
64 108 104 100 96 92 88 84 80 76 72 68 64 60 56 52 48
0
20
40
60
80
100
120
140
160
Indoor Units

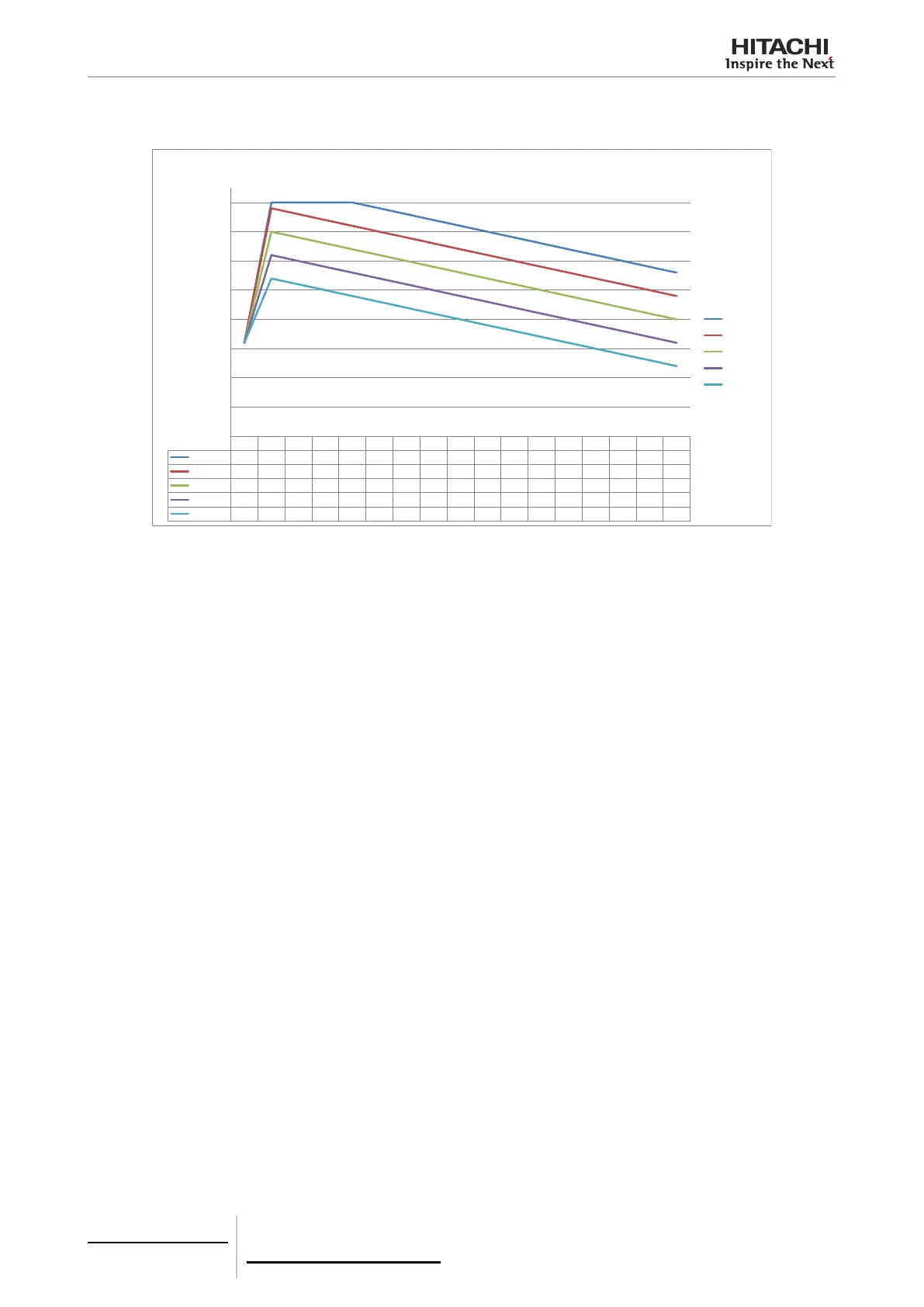

Maximum Indoor Unit Quantity
0 PSC-5HR
1 PSC-5HR
2 PSC-5HR
3 PSC-5HR
4 PSC-5HR
Indoor units
Maximum indoor units quantity
Outdoor units
