6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
460460

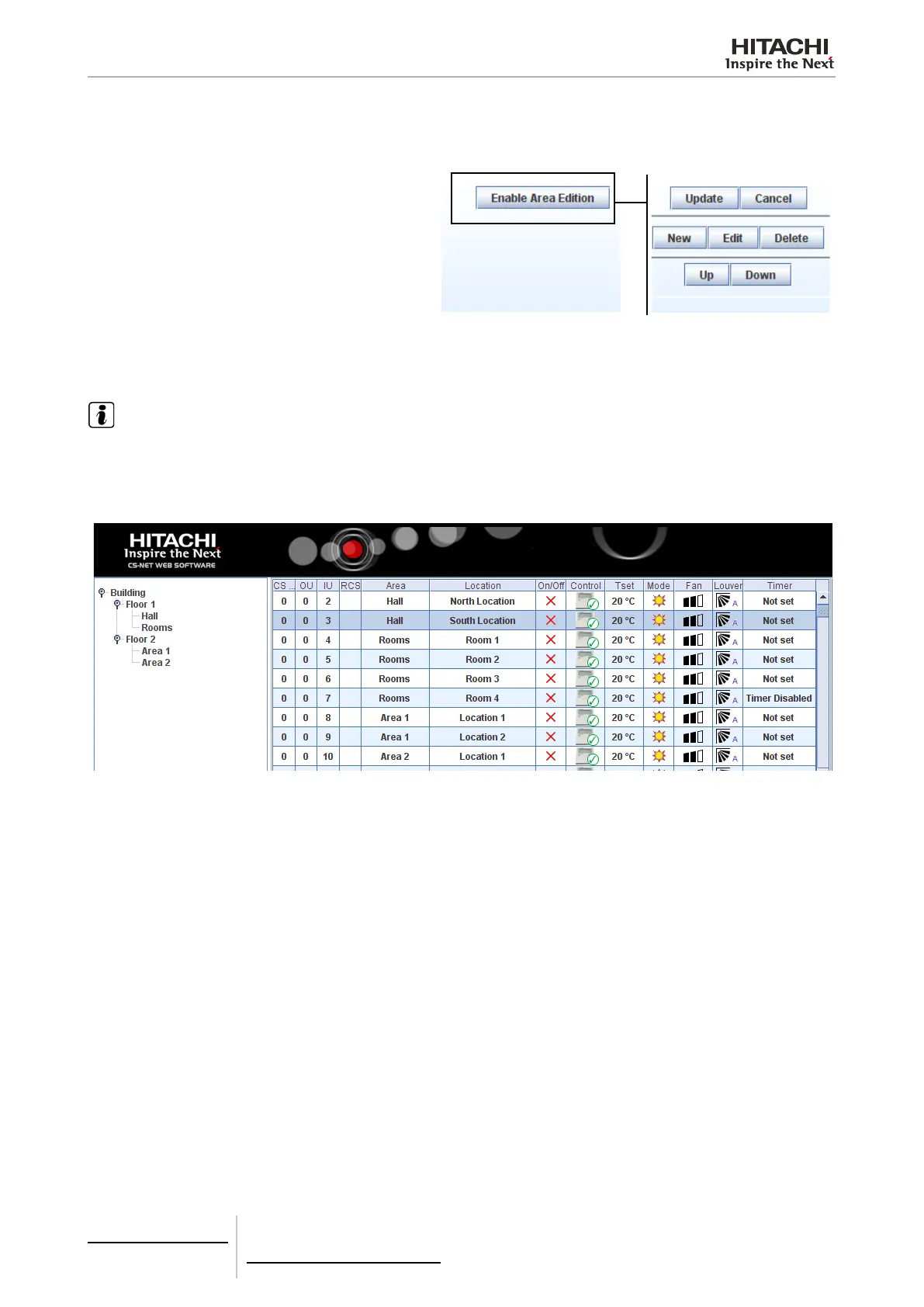

Area tree
Enable Area Edition activates an area tree for this installation.
• New: Creates a new area.
• Edit: Edits the selected area in the area tree.
• Delete: Deletes the selected area.
• Up: Moves the selected area up, respecting its
level.
• Down: Moves the selected area down, respecting
its level.
• Update: Saves all the areas created and closes the
Area Edition.
• Cancel: Closes the Area Edition without saving
changes made.
NOTE
The areas created contain indoor units. See the following chapter if you want to select to which area each of the units belongs.
Table of indoor units
The Table of indoor units is composed of a row for each indoor unit.
