6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
485485
6

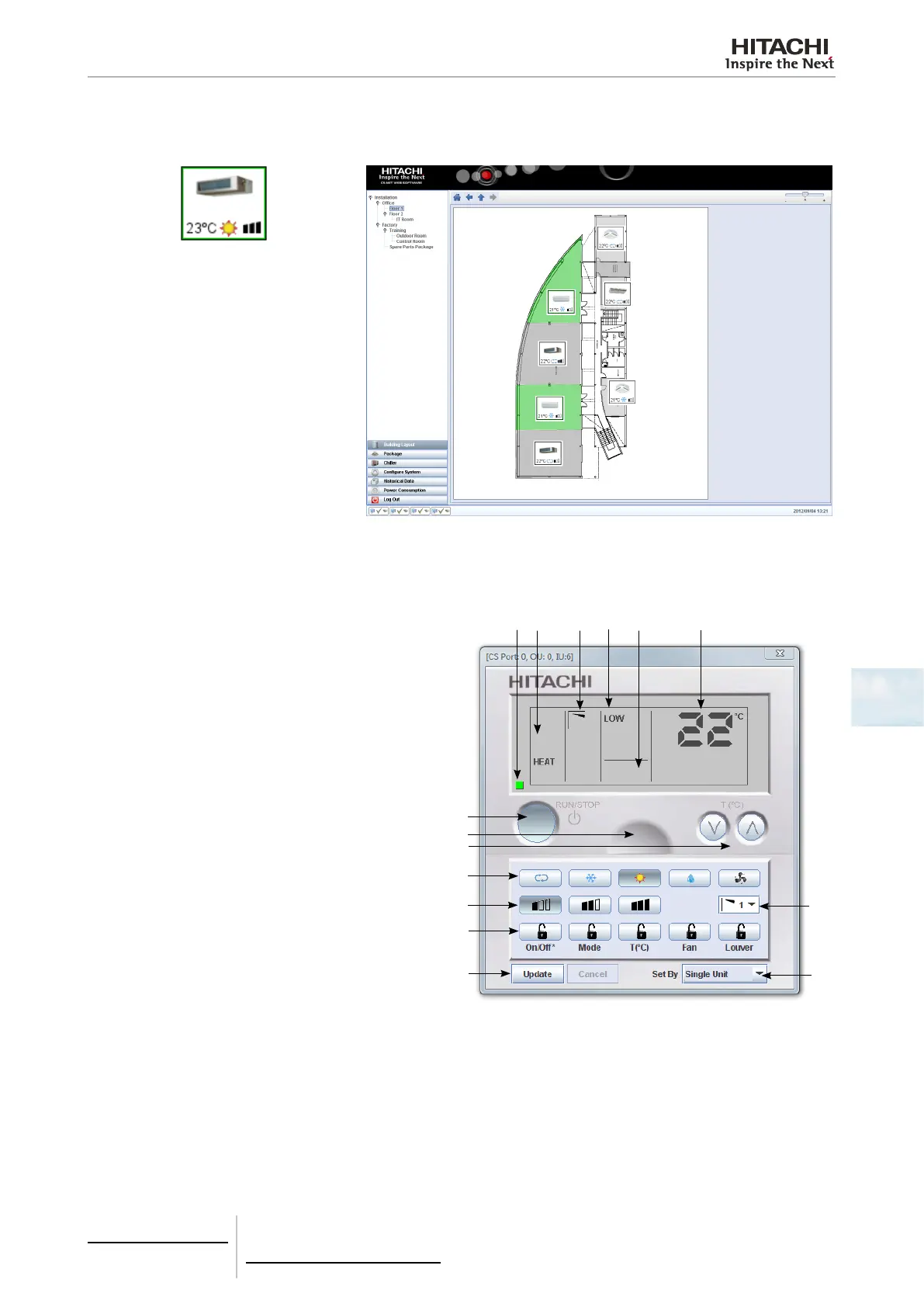

Icons give information of the Unit.
The border has an interior shadow made that has the state colour.
To control a unit just click on its area or unit icon and start working with the virtual remote controller.
The remote controller is divided in two parts, the rst one is the display zone that shows you the current values of the unit
and the second one is the buttons zone.
Display zones are described next:
1 Indicates the Run / Stop situation and if the unit has
an alarm.
2 Shows the unit operation mode.
3 Indicates the position of the bafe plate.
4 Shows the fan speed.
5 Display central is enabled if some central value is
activated.
6 Display the unit temperature.
Button zones are described next:
7 Changes the value of Run/Stop.
8 Show or hide the remote controller cover.
9 Set the temperature value.
10 Changes the unit mode. From left to right: Auto,
Cool, Heat, Dry and Fan.
11 Set fan speed.
12 Set the position of louver.
13 Parameter lock. These parameters will be locked on
the remote controller.
14 Update will send the current state of the remote con-
troller to the unit. Cancel will restore previously set-
ting.
15 “Set by” options congure the current remote con-
troller order to be sent to a single unit, an outdoor
unit, a zone, a zone and its sub zones or to all units.
2
3
4
5 6
1
7
8
9
10
11
13
14
15
12
