6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
591591
6

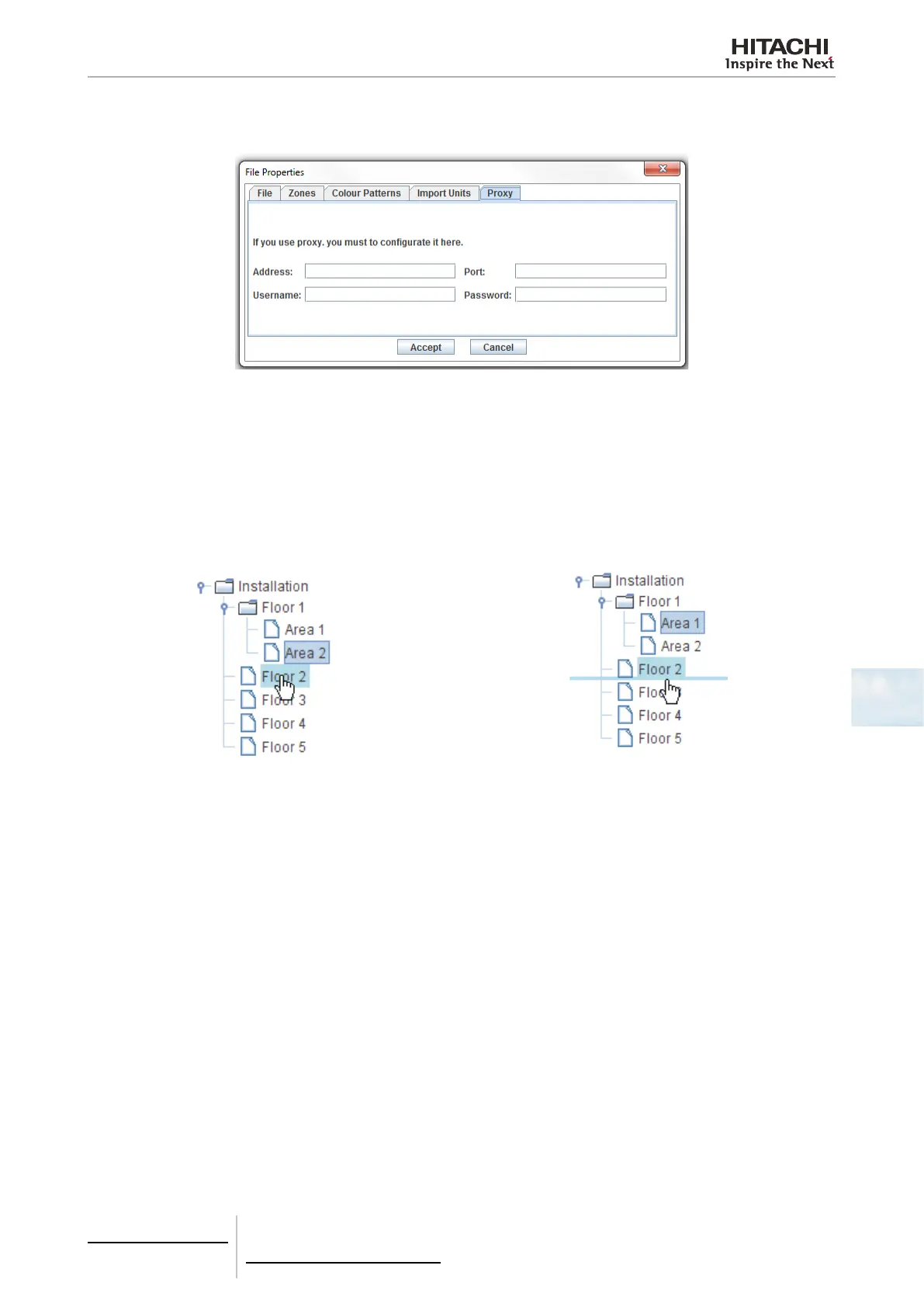

Proxy connection is useful when Building Layout Software is importing the units from a CSNET Manager that is not directly
connected on same LAN than the computer.
Layout tree
The layout tree shows you the topology of your installation. It is helpfully to nd the zones of your installation and it is easy
a very good tool to organise your installation.
Using the tree you can select which zone you want to see on the display zone.
Dragging a zone to another one this will be moved as a child of destination zone.
To specify concrete order we move zone to bottom of destination zone, a line will appear. On release mouse button original
zone will go after destination zone.
