Virtual PC-ARF
Sending orders to the units can be done by enabling the Virtual PC-ARF on local computer conguration. After selecting a
unit, the remote controller will appear on the screen.

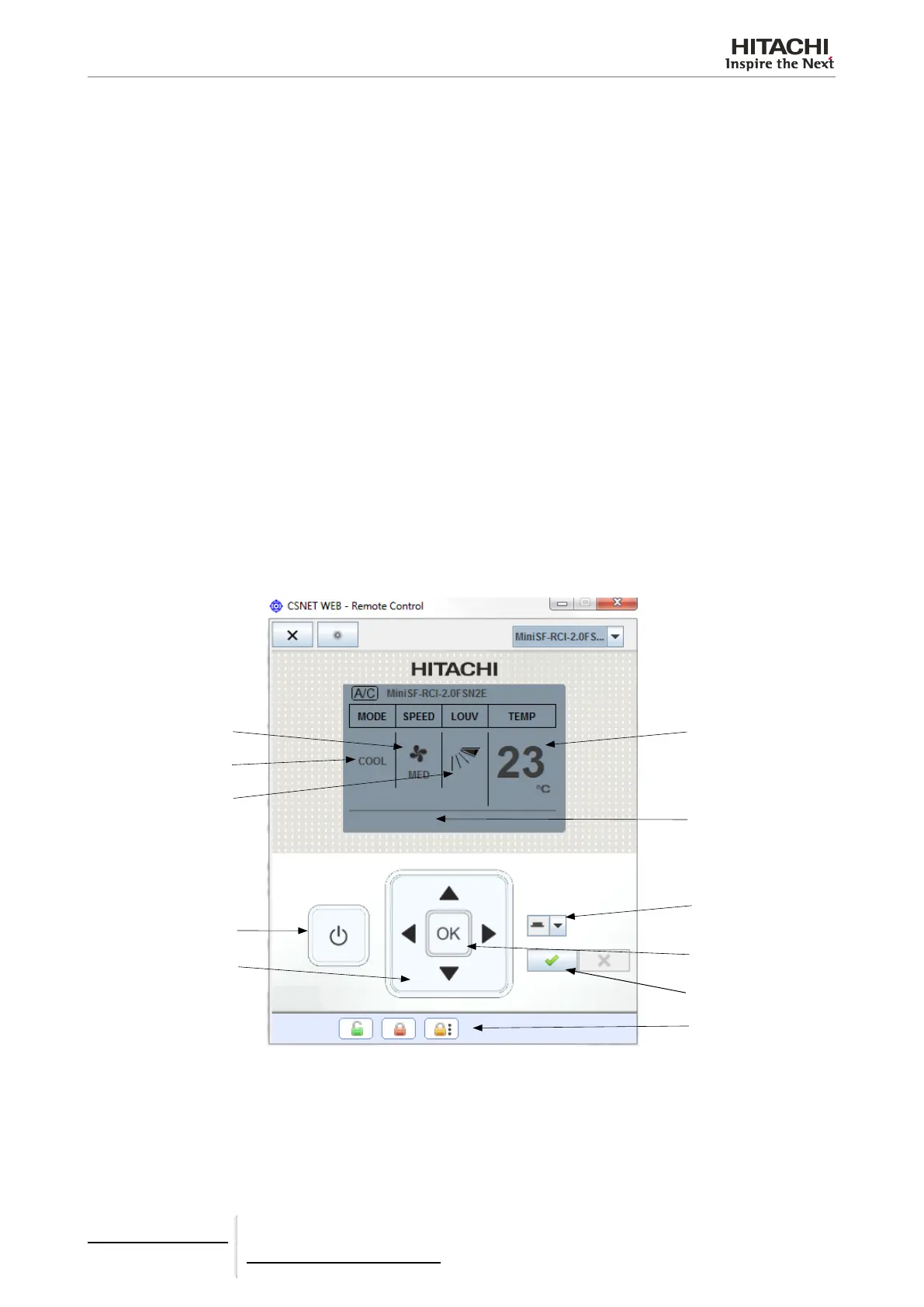

The remote controller is divided in two parts, the rst on is the display zone that shows current values of the unit and the
buttons zones that let move through the menus.
Display zone describes next:
1 Shows the unit operation mode.
2 Shows the fan speed.
3 Indicates the position of the bafe plate.
4 Display central is enabled if some central value is activated.
5 Display the unit temperature.
Buttons describes the next:
6 Indicates and change the Run / Stop situation and if the unit has an alarm.
7 Arrows let select the item on the screen and adjust its value.
8 OK button lets select a parameter to be modied.
9 Parameter lock. These parameters will be locked on the remote controller.
10 Update will send the current state of the remote controller to the unit. Cancel will restore previously setting.
11 “Set by” options congure the current remote controller order to be sent to a single unit, an outdoor unit, a zone, a zone
and its sub zones or to all units.
