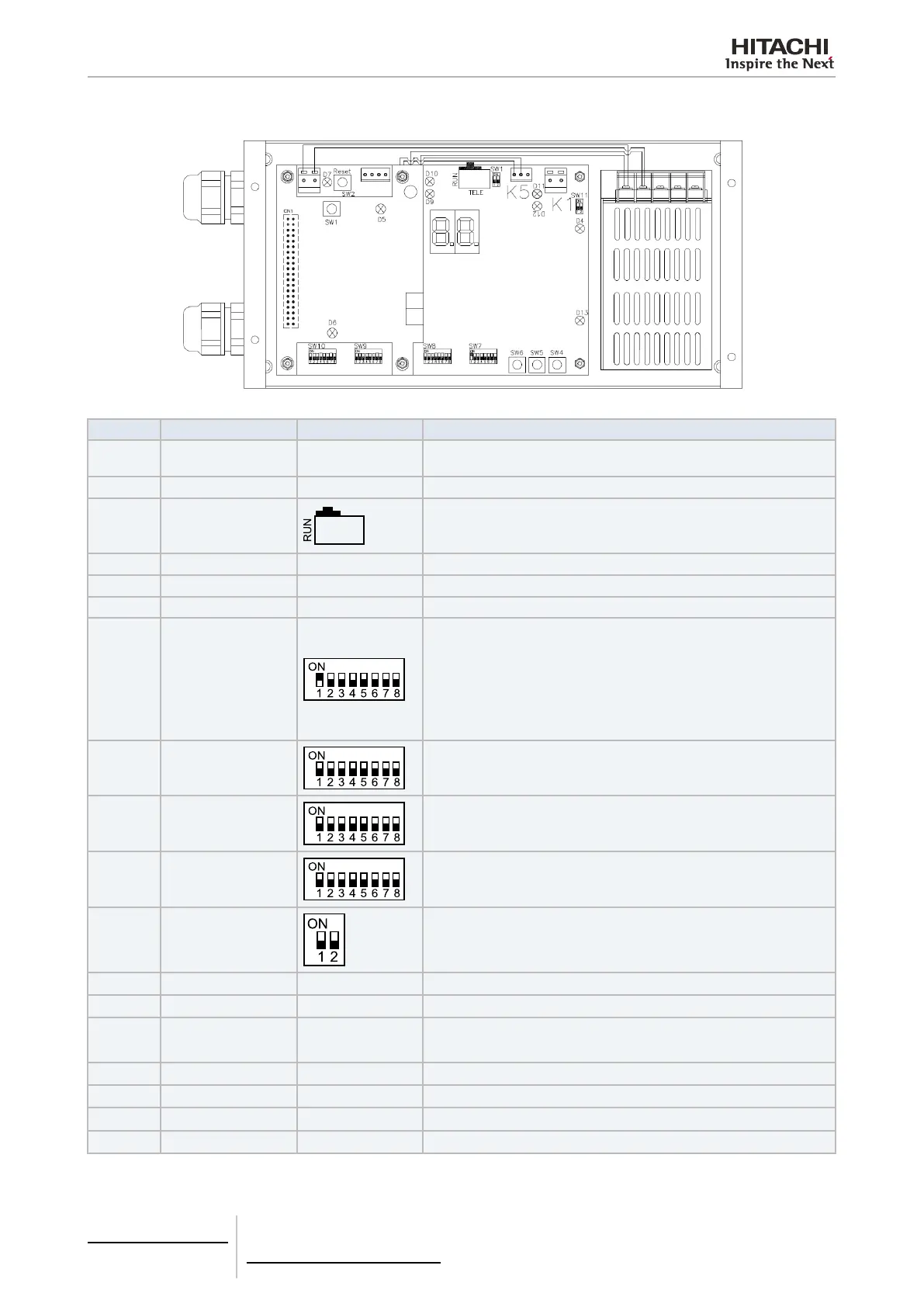

DIP switch setting
Name Function Factory setting Description
SW1 Reset KNX PCB –
Reset button. To be used in case of KNX communication has been
locked.)
SW2 Reset – Reset button. To be used in case of program has been locked
SW3
(TELE)
Not available
Factory purposes. Never change it
SW4 Conguration – Setting functions
SW5 Conguration – Setting functions
SW6 Conguration – Setting functions
SW7 Options 2
Conguration as MASTER HC-A16KNX: SW7-1=ON.
Only one HC-A16KNX can be set as a MASTER HC-A16KNX. Setting
by default.
Conguration as SLAVE HC-A16KNX: SW7-1= OFF.
It should be 1 HC-A16KNX congured as MASTER, all the rest of HC-
A16KNX must be congured as SLAVE
SW8
Options 1
(Application type)
All in off (no function)
SW9 Not available
All in off (no function)
SW10 Not available
All in off (no function. Do not change)
SW11 H-LINK DSW
SW11-1: H-LINK end resistance
SW11-2: Not used
D4, D11 H-LINK – H-LINK transmission
D5 Not used -
D6
Units conguration
alarm
–
ON- No alarms
OFF- Units not congured
D7 Power – Power supply ON/OFF
D9/D10 Not used - -
D12 KNX - Internal communication between the KNX PCB and the H-LINK PCB.
D13 Operation - Normal software operation
7 Gateways for building management systems
HC-A16KNX
TCGB0106 rev.0 - 12/2014
640640
