7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
665665
7

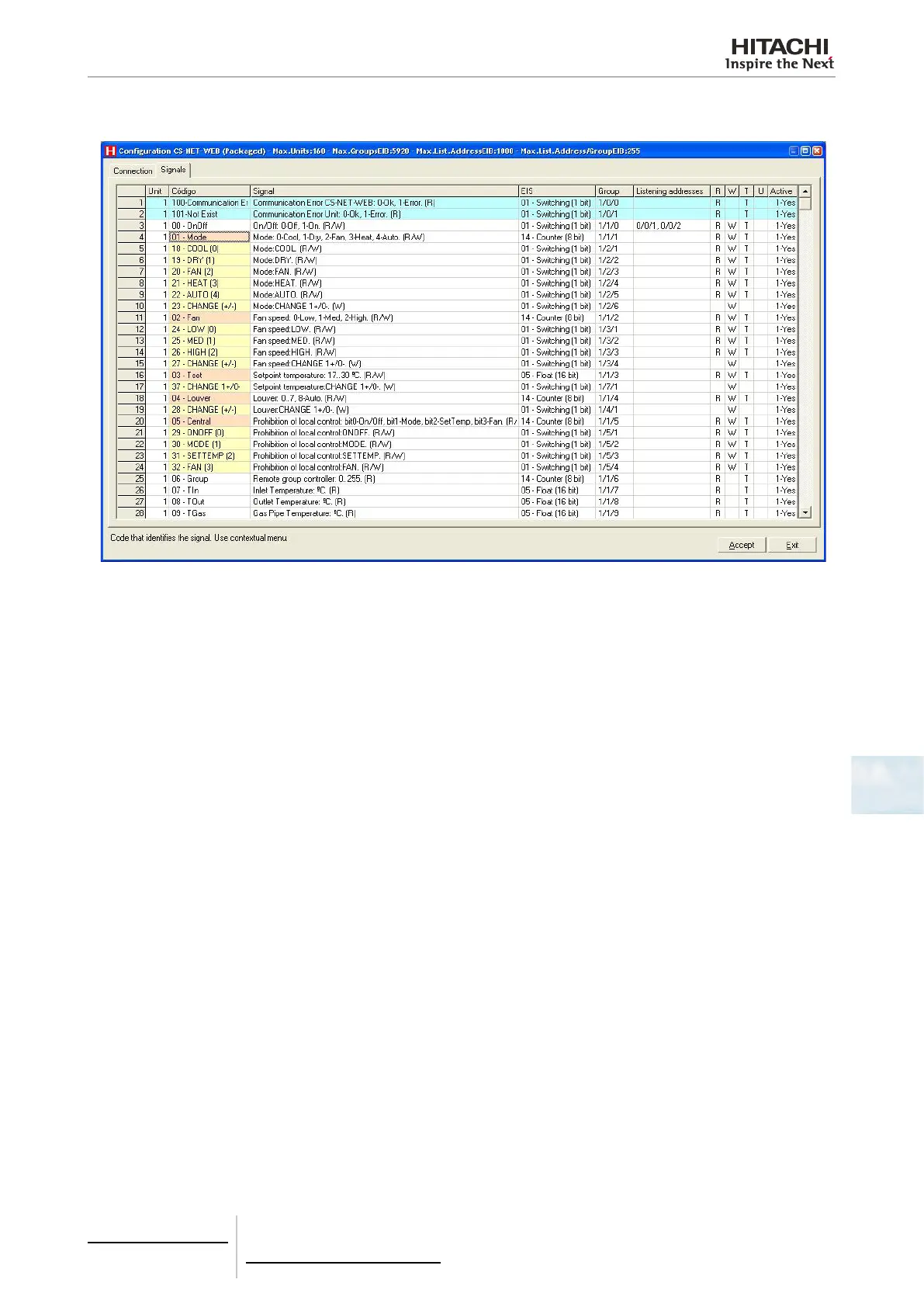

The following image shows all the multibit signals pulled down.
By default, all multibit signals are shown pulled down. If they are not going to be used you can do Hide-All to have a table
with fewer signals in order to work more comfortably.
It is permitted to enable byte and multibit signals simultaneously. The bits will be updated according to the status they
represent. Only one of the multibit signals will be enabled at any time, except in the case of the Central signal, since
in this case various bits can be enabled simultaneously.
