ii. When using the cover. It can be installed at the right and left side of room air-conditioner. Double-face tape îš¿xes
the cover and RAC adapter.

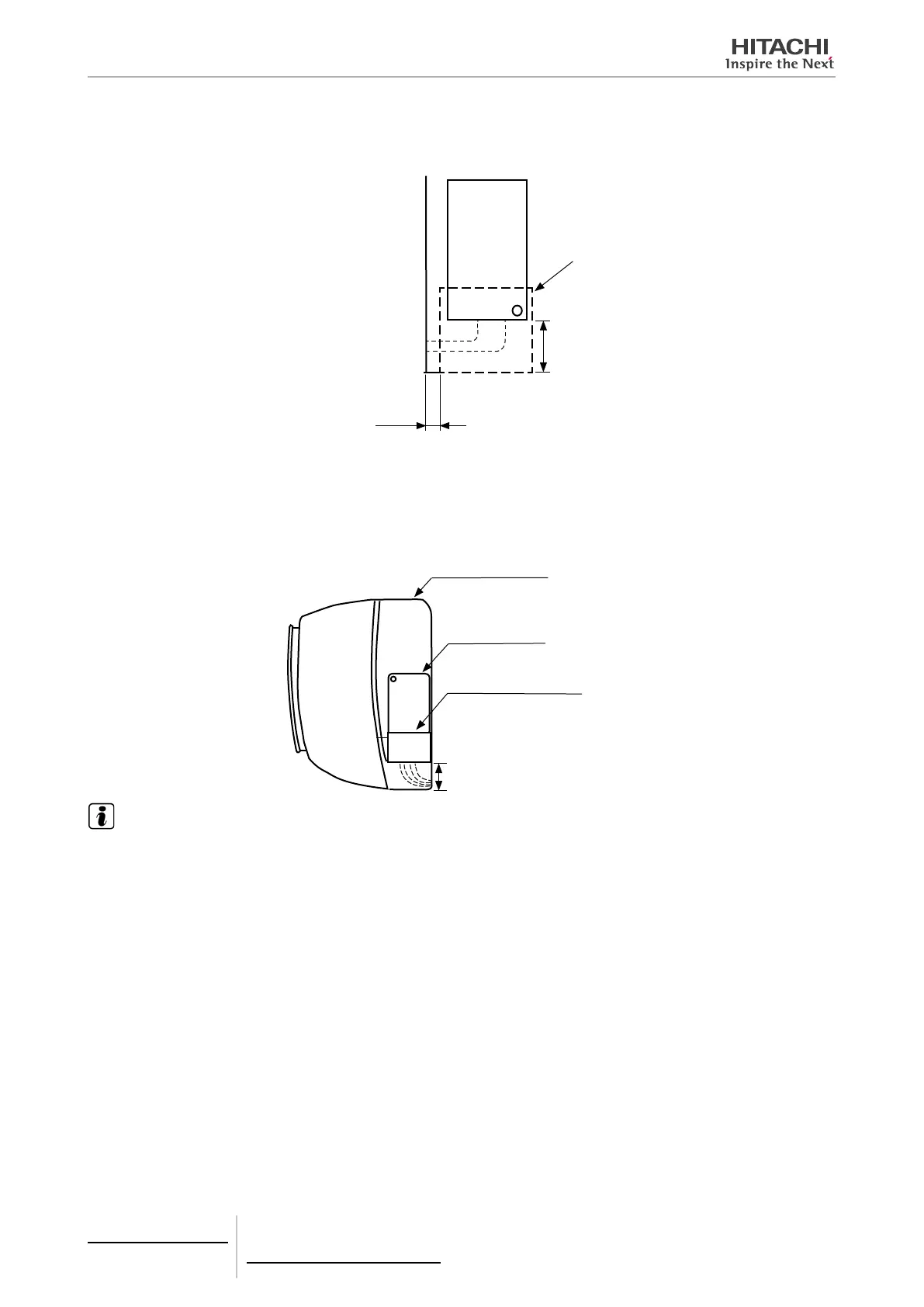

Example of installation:
RAC
adapter
Cover
40 mm
Keep a distance
of 10mm
Wiring outlet
Room Air-conditioner
b. In case that it cannot be installed to the wall due to the space or material problem, double-face tape is used for
installation on the room air-conditioner.
i. Conîš¿rm if the piping cover of the Unit can be removed when performing the service maintenance, and then îš¿x
RAC adapter in the side of room air-conditioner with double-face tape. (Available at the right as well as left side)
ii. Clean with a dry cloth the surface to be installed.
Room Air-conditioner
RAC adapter
Cover
40 mm
Fix it to RAC adapter with the
enclosed double-face tape
NOTE
Consider the following points since the adhesivity changes according to the environmental conditions (temperature, humidity etc).
• The adhesivity is decreased in the humidity or oil.
• Warm the adhesive part and installation place of Double-face tape to avoid the decrease of the adhesivity in case that ambient tem-
perature is low.
• Do not touch the adhesive part by ngers nor re-use it many times.
• Any forced power shall not be added in 24 hours after the installation.
