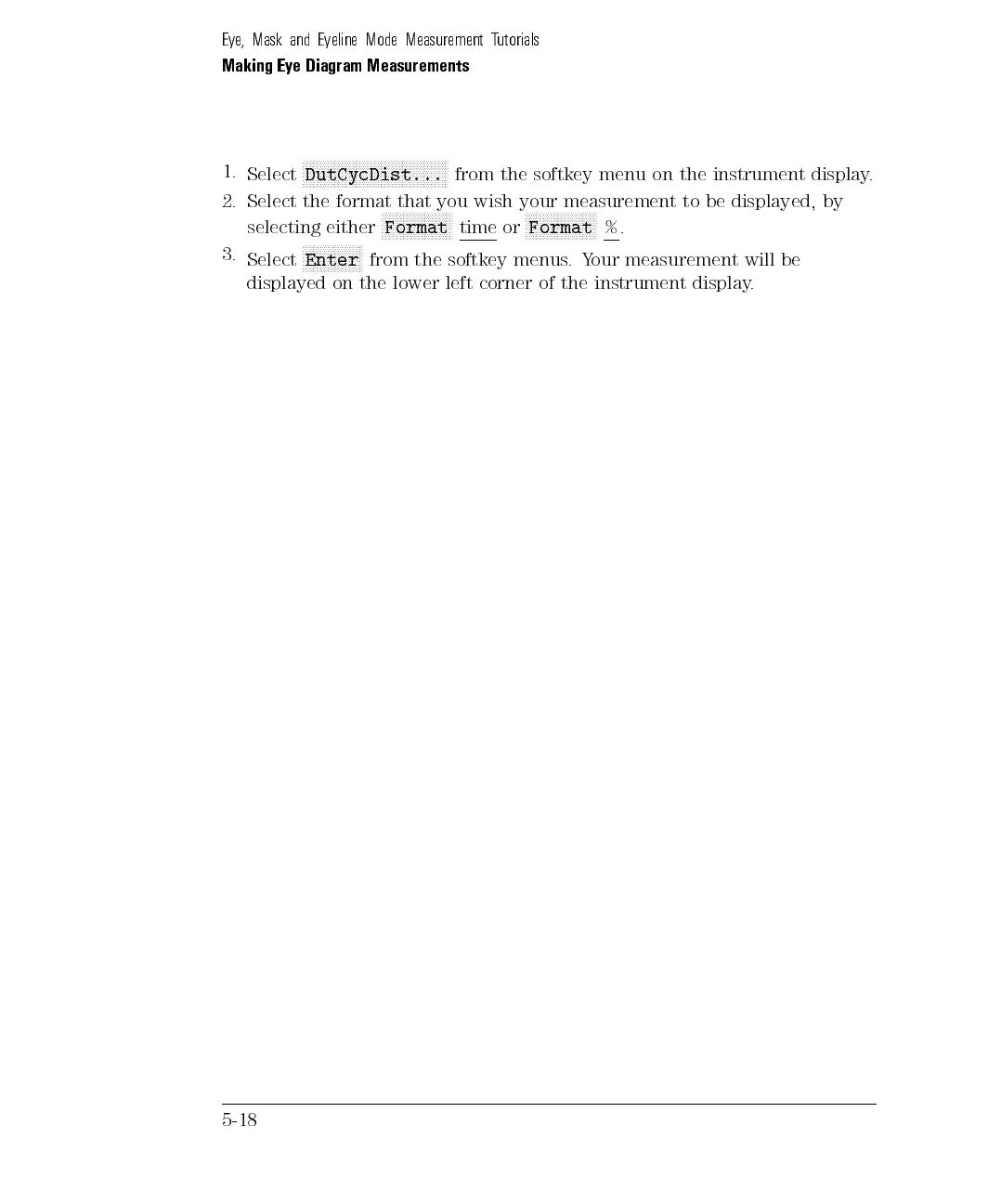

Eye, Mask and Eyeline Mode Measurement Tutorials
Making Eye Diagram Measurements
1.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
DutCycDist... from the softkey menu on the instrument display.
2. Select the format that you wish your measurement to be displayed, by
selecting either
NNNNNNNNNNNNNNNNNNNN
Format time or
NNNNNNNNNNNNNNNNNNNN
Format %.
3.
Select
N
NNNNNNNNNNNNNNNN
Enter from the softkey menus.Your measurement will be
displayed on the lower left corner of the instrument display.
5-18
