HP 83480A User Manual

Waveform Measurements

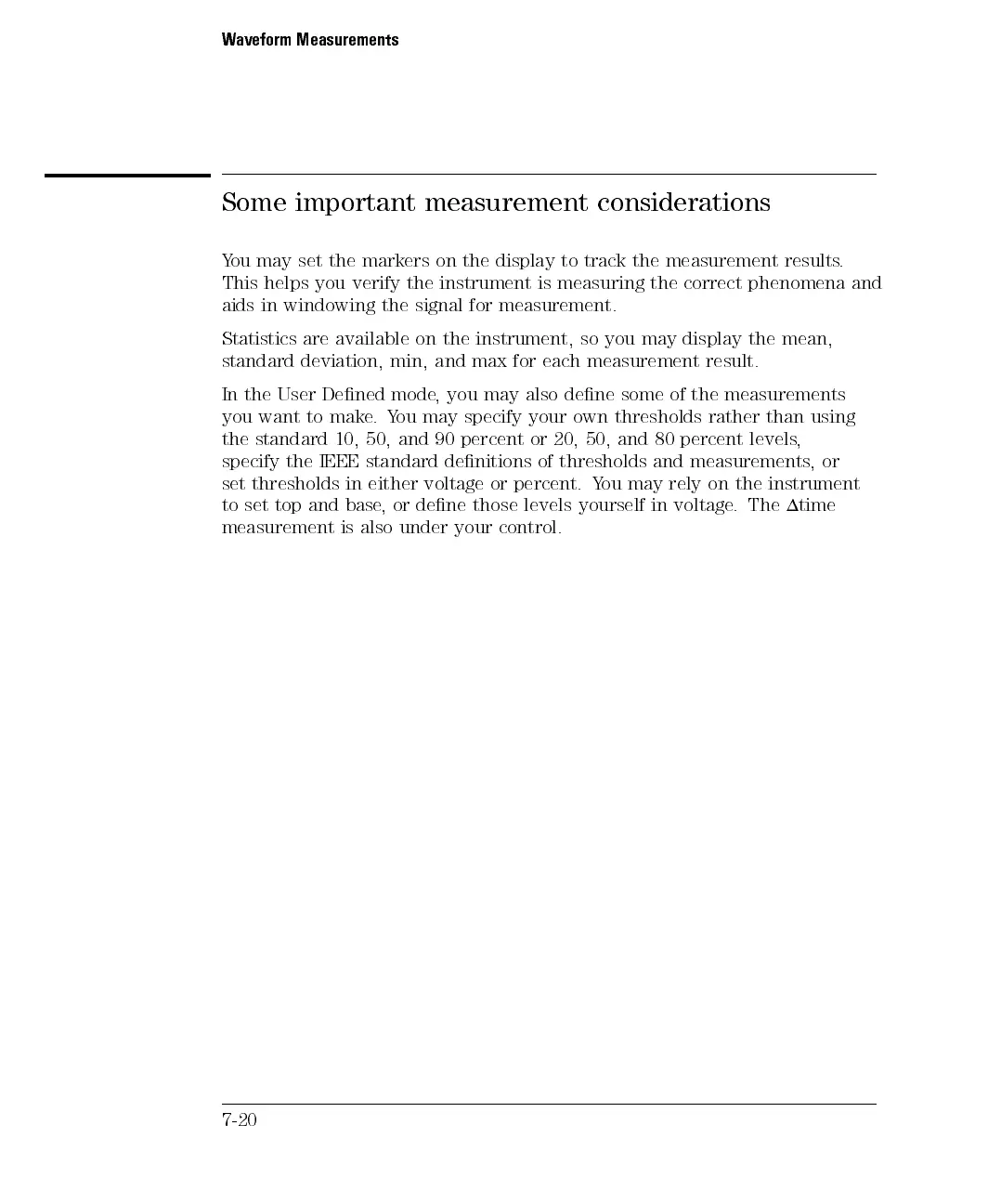

Some important measurement considerations
You may set the markers on the display to track the measurement results.
This helps you verify the instrument is measuring the correct phenomena and
aids in windowing the signal for measurement.
Statistics are available on the instrument, so you may display the mean,
standard deviation, min, and max for each measurement result.
In the User Dened mode, you may also dene some of the measurements
you want to make.You may specify your own thresholds rather than using
the standard
10, 50,
and 90
percent
or
20,
50,
and
80
percent
levels
,
specify the
IEEE standard
denitions of
thresholds
and
measurements
,
or
set thresholds
in either
voltage
or
percent.
Y
ou
may
rely
on
the
instrument
to
set
top
and
base
,
or
dene
those levels
yourself in
voltage
.
The
1time
measurement
is
also
under
your
control.
7-20
