Dene Measure Menu
The Dene Measure menu sets the measurement points (thresholds)
where the automatic measurements are made. The menu inuences
the measurement algorithm by allowing you to use the standard IEEE
measurement points, or by allowing you to customize the measurements with
the user-dened selections.

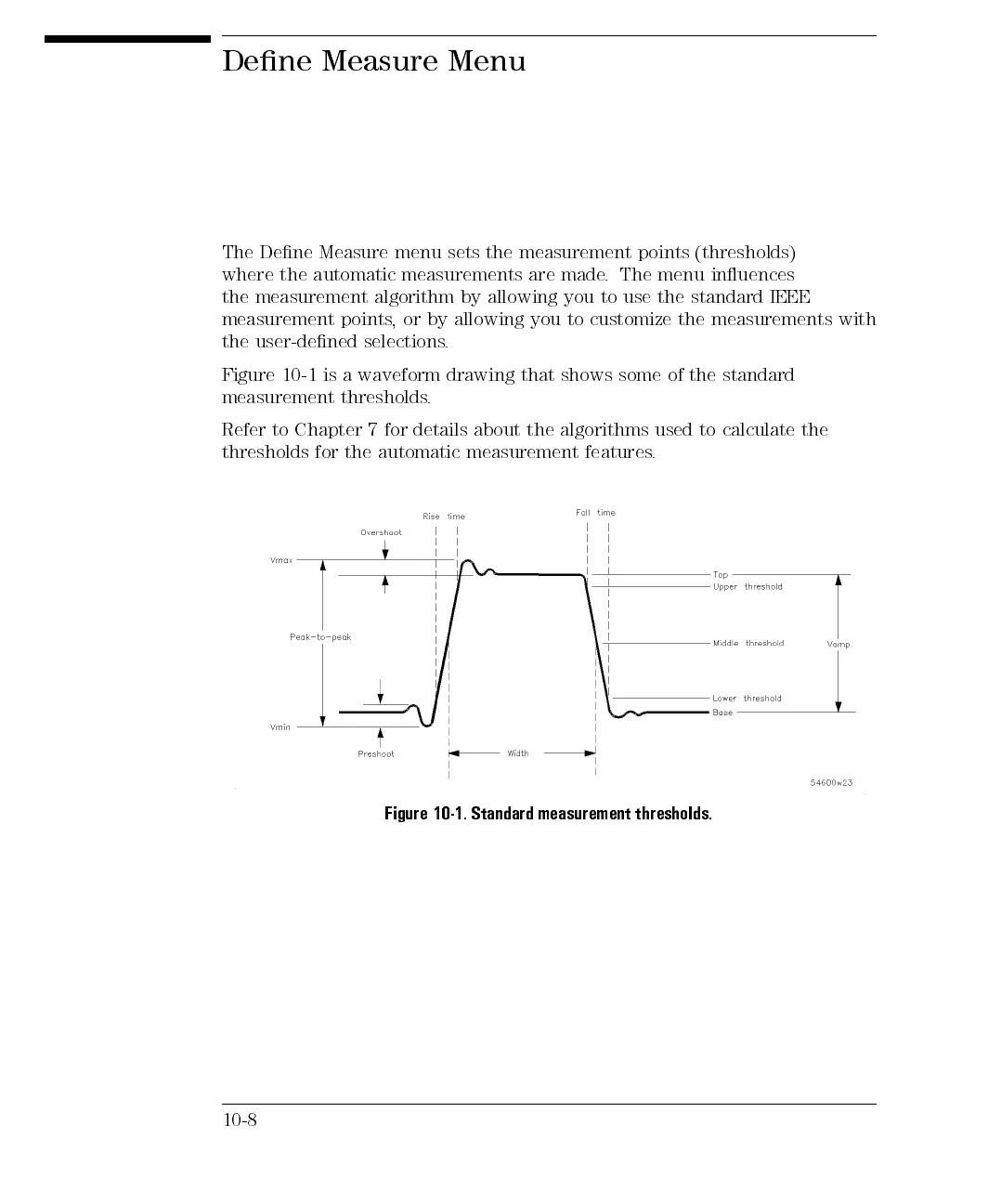

Figure 10-1 is a waveform drawing that shows some of the standard
measurement thresholds.
Refer to
Chapter 7
for details
about
the
algorithms
used
to
calculate
the
thresholds for
the automatic
measurement features
.
Figure 10-1. Standard measurement thresholds.
10-8
