Increasing Measurement Accuracy

and Time-Interval Measurement

Increasing Measurement Accuracy

Jitter and Averaging

Vertical averaging removes the apparent jitter on the display, but may give

misleading information about the true behavior of the signal. For example,

consider measuring rise time. Figure 9-1 shows a rise time measurement on a

jittering signal with averaging turned on.

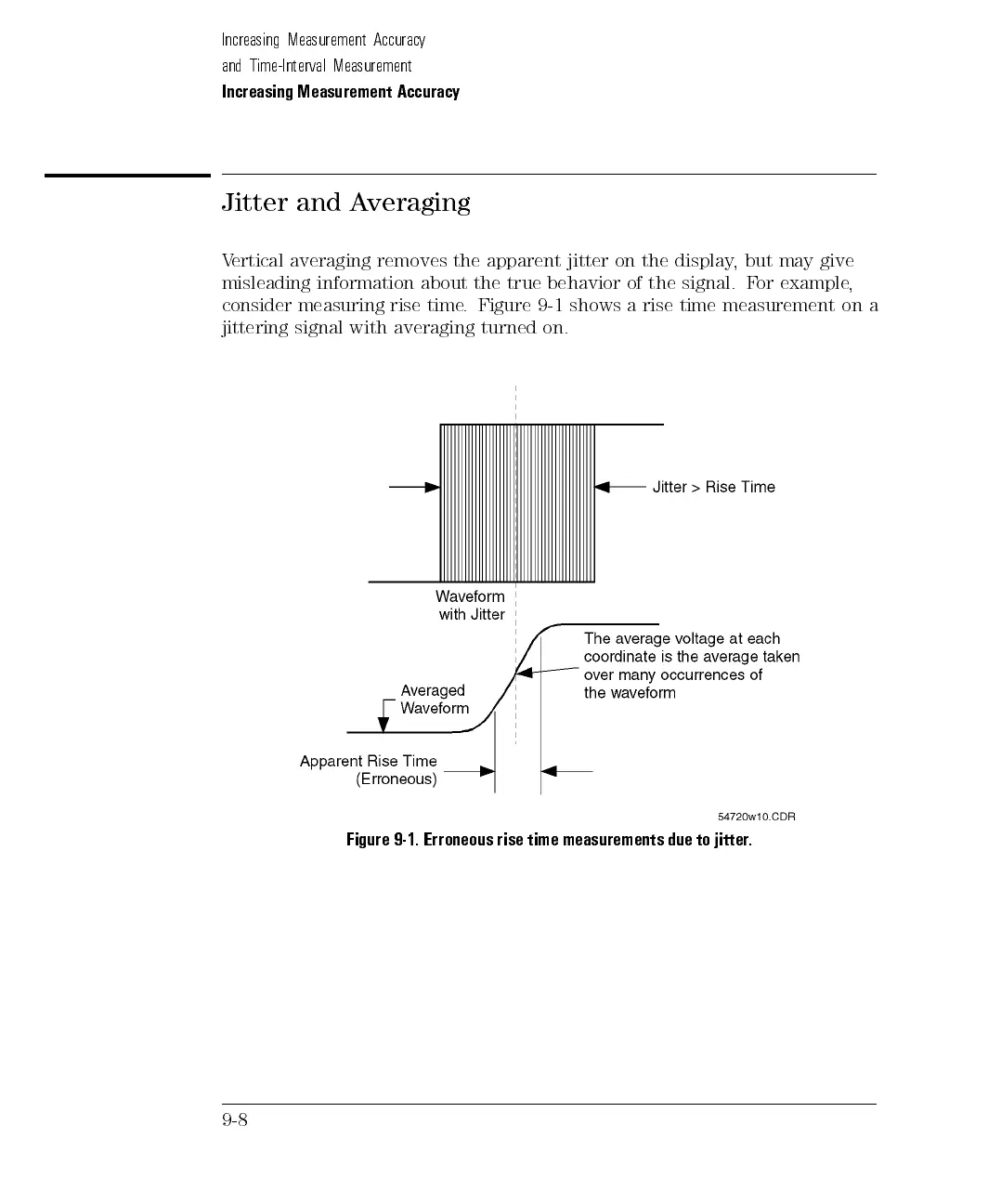

Figure 9-1. Erroneous rise time measurements due to jitter.

9-8
