The Instrument at a Glance

The Front Panel

Display

The instrument has a high-resolution, color display. The display is divided

into several areas as shown in Figure 1-2.

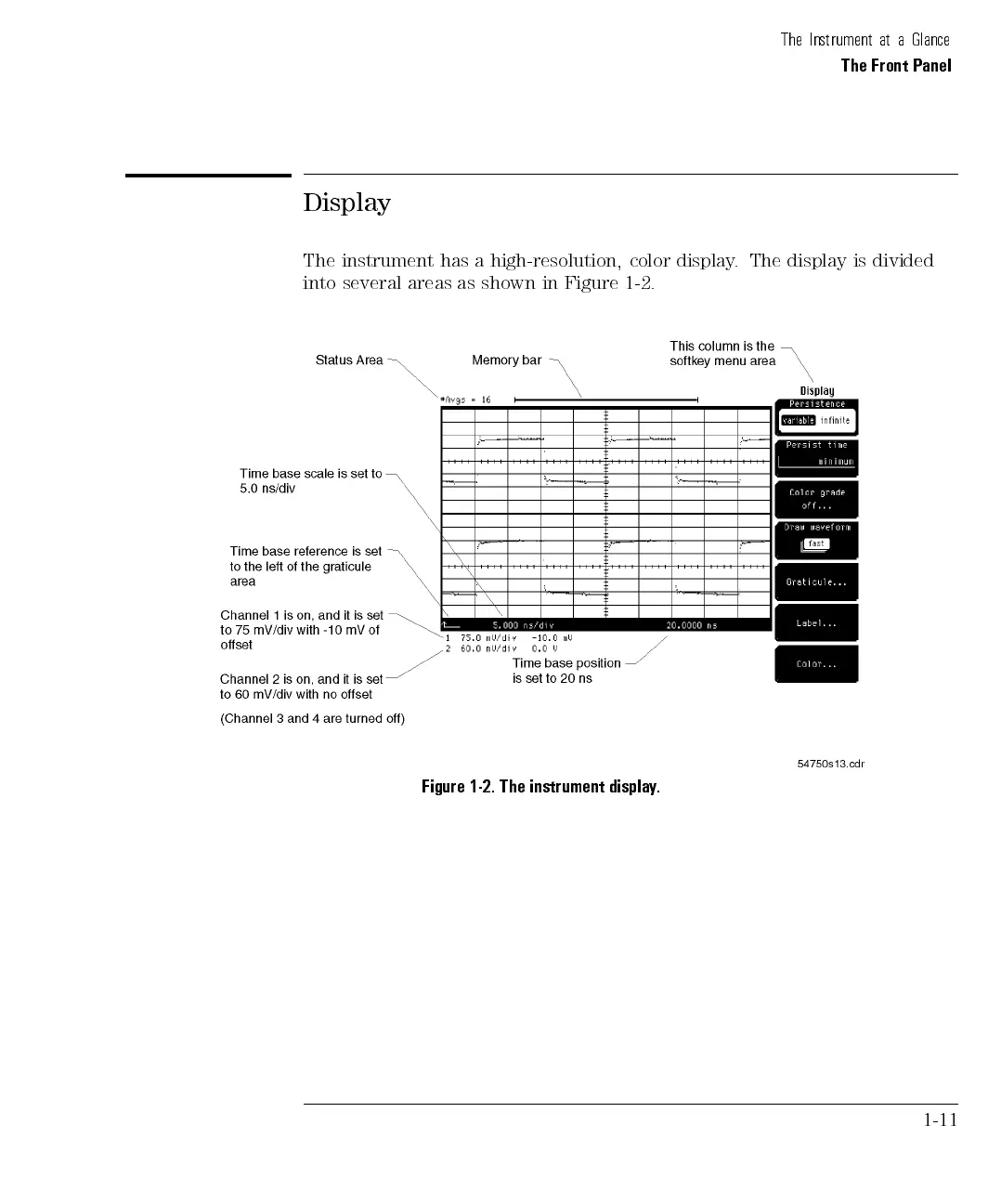

Figure 1-2. The instrument display.

1-11
