Waveform Measurements
Standard Waveform Denitions
User-dened 1time
On the instrument, you may select the threshold level (lower/middle/upper),
polarity of edge (either rise or fall), and the edge number. The measurement
is then calculated as the time from the rst source's edge to the second
source's edge.
This gives exibility in dening 1time measurements between channels or on
a single channel between edges.To avoid confusing the delay measurement
with time base delay and trigger delay, the delay measurement has been
called 1time
as shown
in
Figure
7-10
.
Refer
to
Chapter
10
for
information
on
delay measurements
.

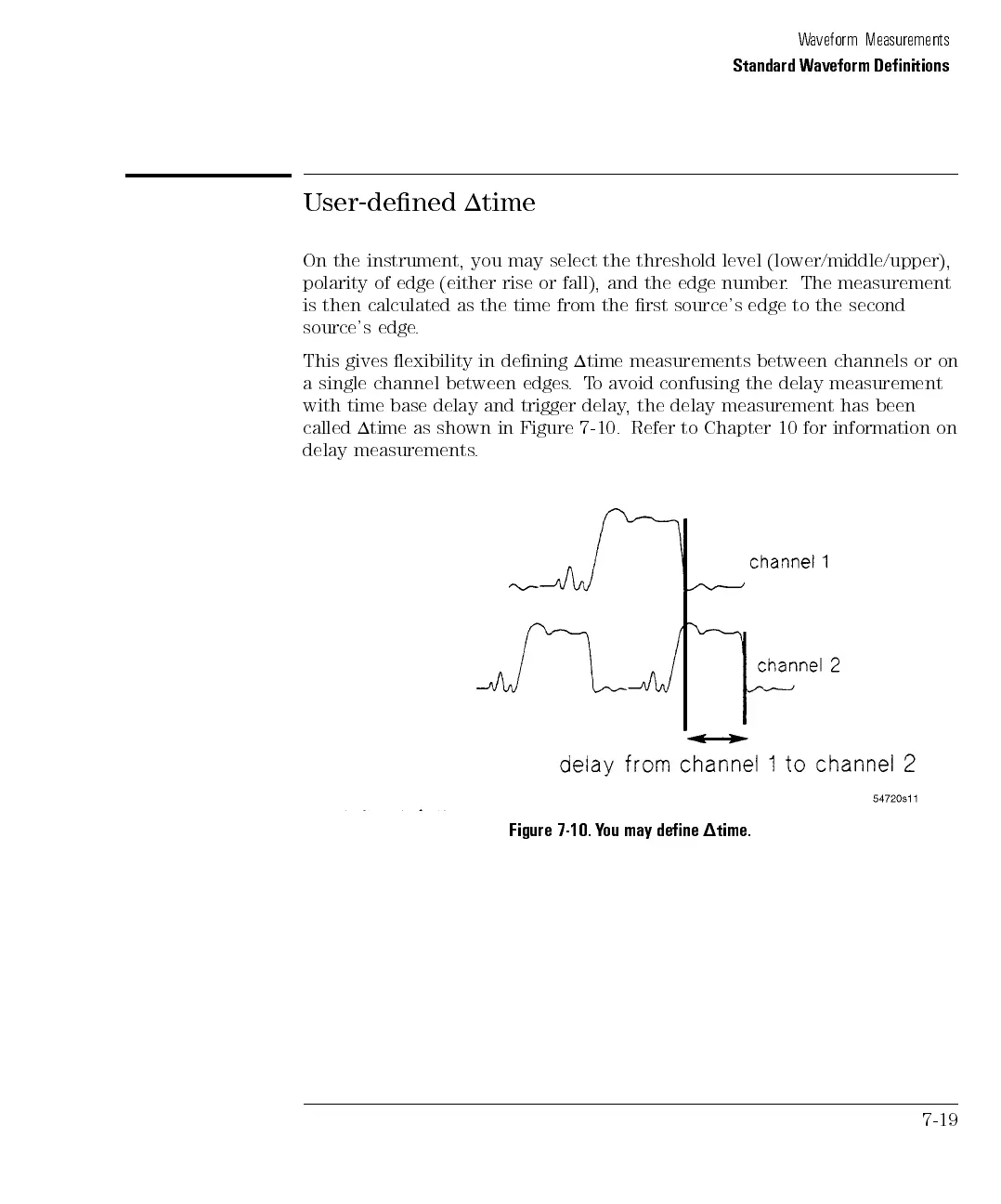

Figure 7-10. You may dene 1time.
7-19
