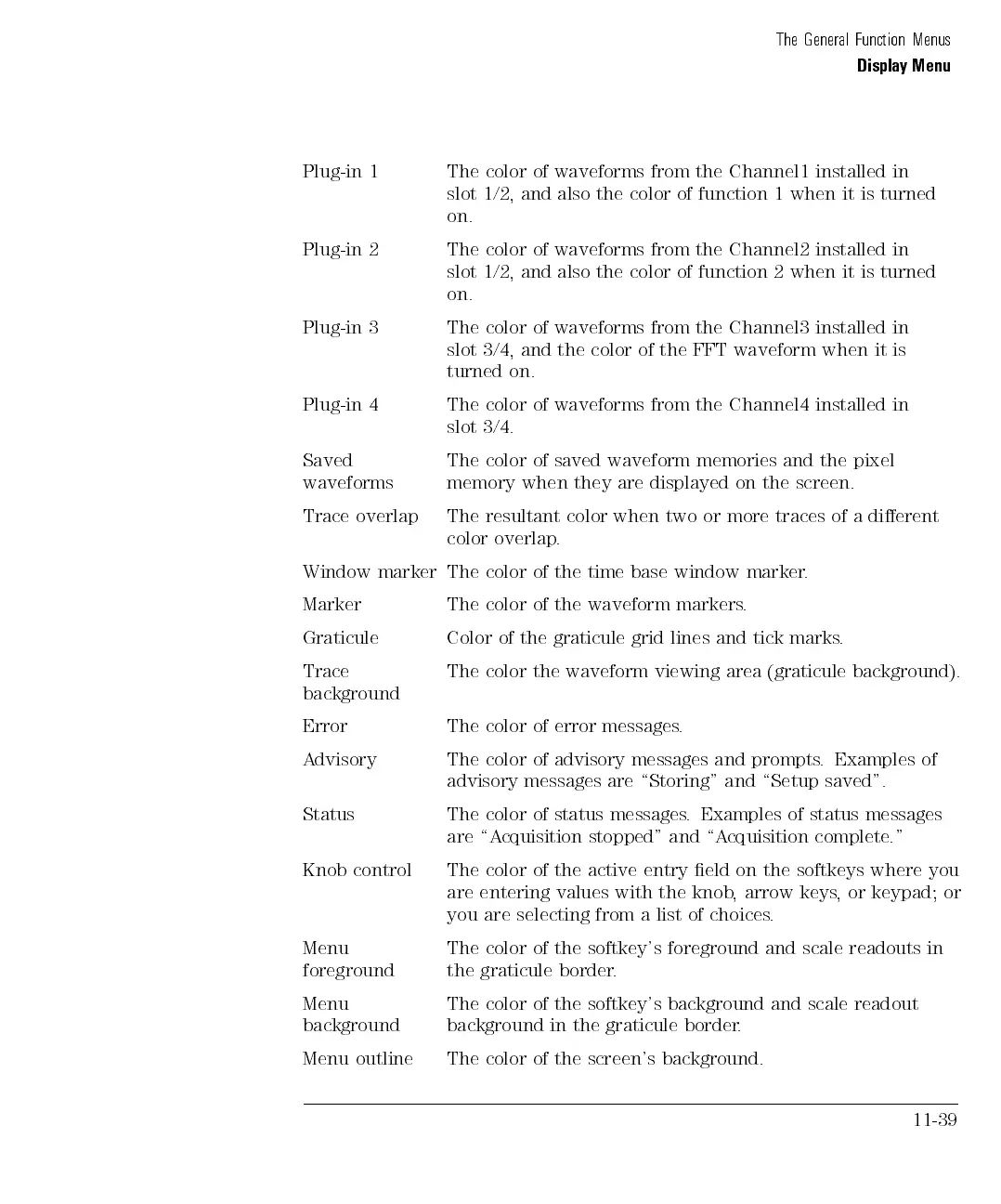

The General Function Menus
Display Menu
Plug-in 1 The color of waveforms from the Channel1 installed in
slot 1/2, and also the color of function 1 when it is turned
on.
Plug-in 2 The color of waveforms from the Channel2 installed in
slot 1/2, and also the color of function 2 when it is turned
on.
Plug-in 3 The color of waveforms from the Channel3 installed in
slot 3/4, and the color of the FFT waveform when it is
turned on.
Plug-in 4 The color of waveforms from the Channel4 installed in
slot
3/4.
Saved
waveforms
The
color
of
saved
waveform
memories
and the
pixel
memory
when
they
are
displayed
on
the
screen.
Trace
overlap
The
resultant
color
when
two
or
more
traces
of
a
dierent
color
overlap
.
Window
marker
The
color
of
the
time
base
window
marker
.
Marker
The color
of
the
waveform
markers
.
Graticule
Color of
the
graticule
grid
lines
and
tick
marks
.
Trace
background
The
color the
waveform viewing
area
(graticule
background).
Error The
color of
error messages
.
Advisory
The color
of advisory
messages
and
prompts
.
Examples
of
advisory messages are \Storing" and \Setup saved".
Status The color of status messages. Examples of status messages
are \Acquisition stopped" and \Acquisition complete."
Knob control The color of the active entry eld on the softkeys where you
are
entering
values
with
the knob
,
arrow
keys
,
or
keypad;
or
you are
selecting
from
a
list
of
choices
.
Menu
foreground
The color of the softkey's foreground and scale readouts in
the graticule border
.
Menu
background
The color of the softkey's background and scale readout
background in the graticule border
.
Menu outline The color of the screen's background.
11-39
