Mask Test Menu
Moving an X or Y value o of the graticule area (value is either minimum or
maximum), xes that point to the edge of the screen. Changing the scaling
will not shrink that point into the screen. For example, the top line of the
polygon in Figure 6-2 looks like both points are o the screen. However,
rescaling the polygon by changing the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Y2 Position value from 1 mW to
500  W shrinks the polygon in Figure 6-3.You may notice that the top-left
point stayed xed to the top of the screen, while the top-right point moved
into the graticule area. To keep a point xed to a side of the graticule area,
set the point's value to either minimum or maximum.

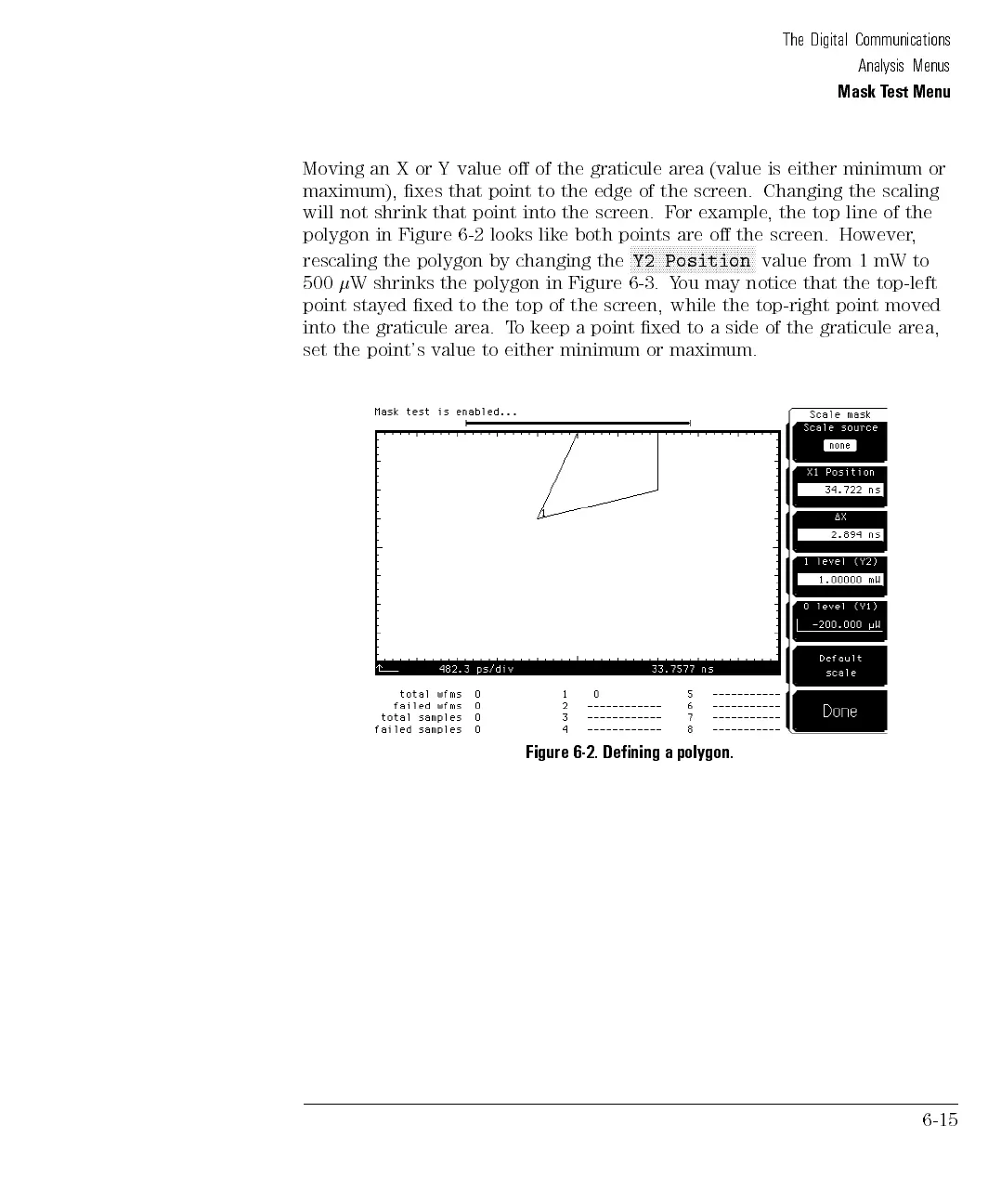

Figure
6-2.
Dening
a
polygon.
6-15
