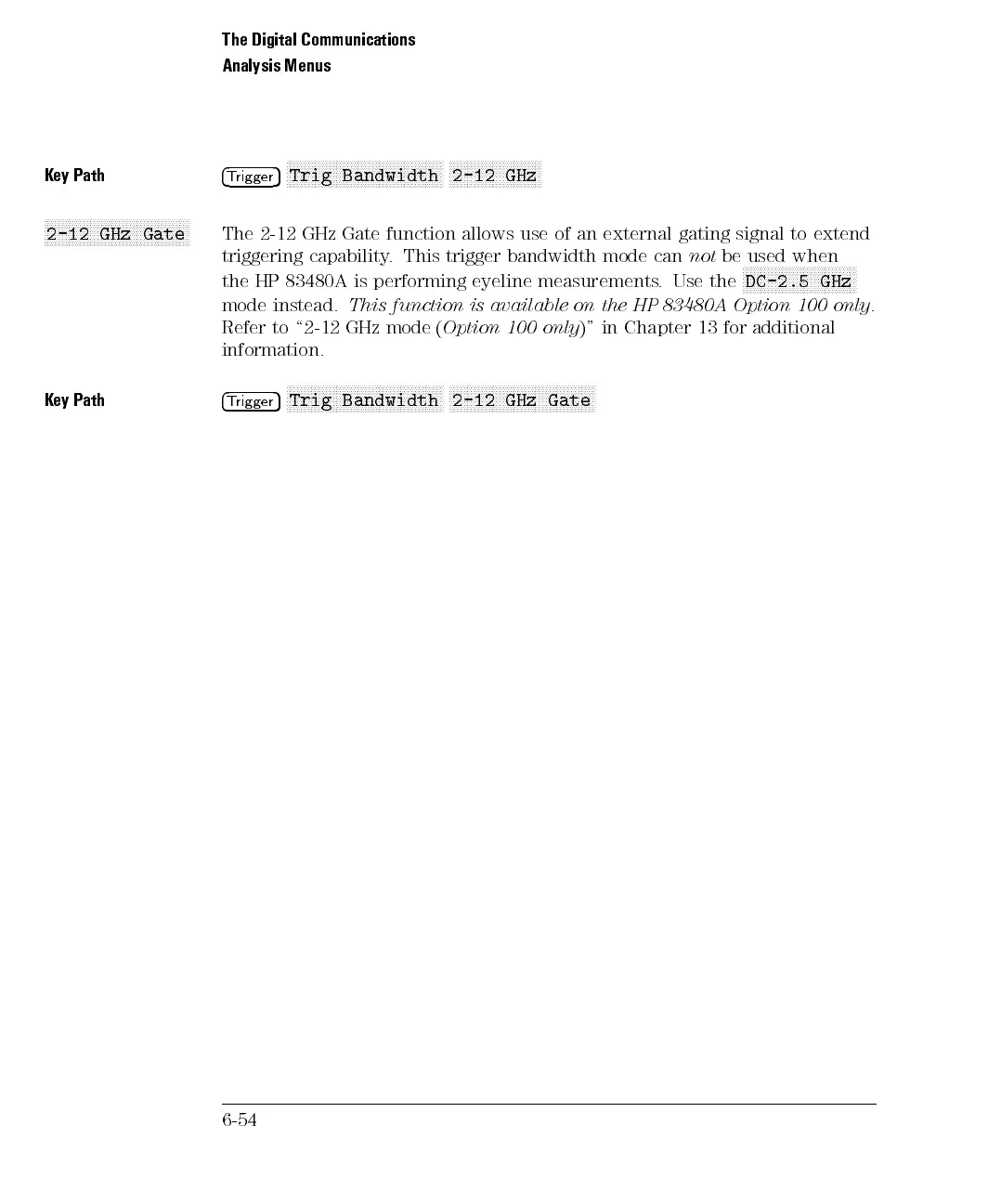

The Digital Communications
Analysis Menus
Key Path 4
Trigger
5
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Trig Bandwidth
NNNNNNNNNNNNNNNNNNNNNNNNNN
2-12 GHz
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
2-12 GHz Gate The 2-12 GHz Gate function allows use of an external gating signal to extend
triggering capability. This trigger bandwidth mode can not be used when
the HP 83480A is performing eyeline measurements. Use the
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
DC-2.5 GHz
mode instead. This function is available on the HP 83480A Option 100 only.
Refer to \2-12 GHz mode ( Option 100 only )" in Chapter 13 for additional
information.
Key Path 4
Trigger
5
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Trig Bandwidth
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
2-12 GHz Gate
6-54
