Increasing
M
easurement
Accurac
y
and
Time-Interval
Measurement
Time-Interval
M
easurements
F
or
time-interval
measurements
between
edges
of
opposite
p
olarity
,
t
he
errors
caused
by
dc
level
e
rrors
add
r
ather
than
cancel
as
shown
i
n
Figure
9-3
.
The
time
errors
in
locating
the
leading
edge
and
trailing
edge
of
the
pulse
reinforce
rather
than
cancel.

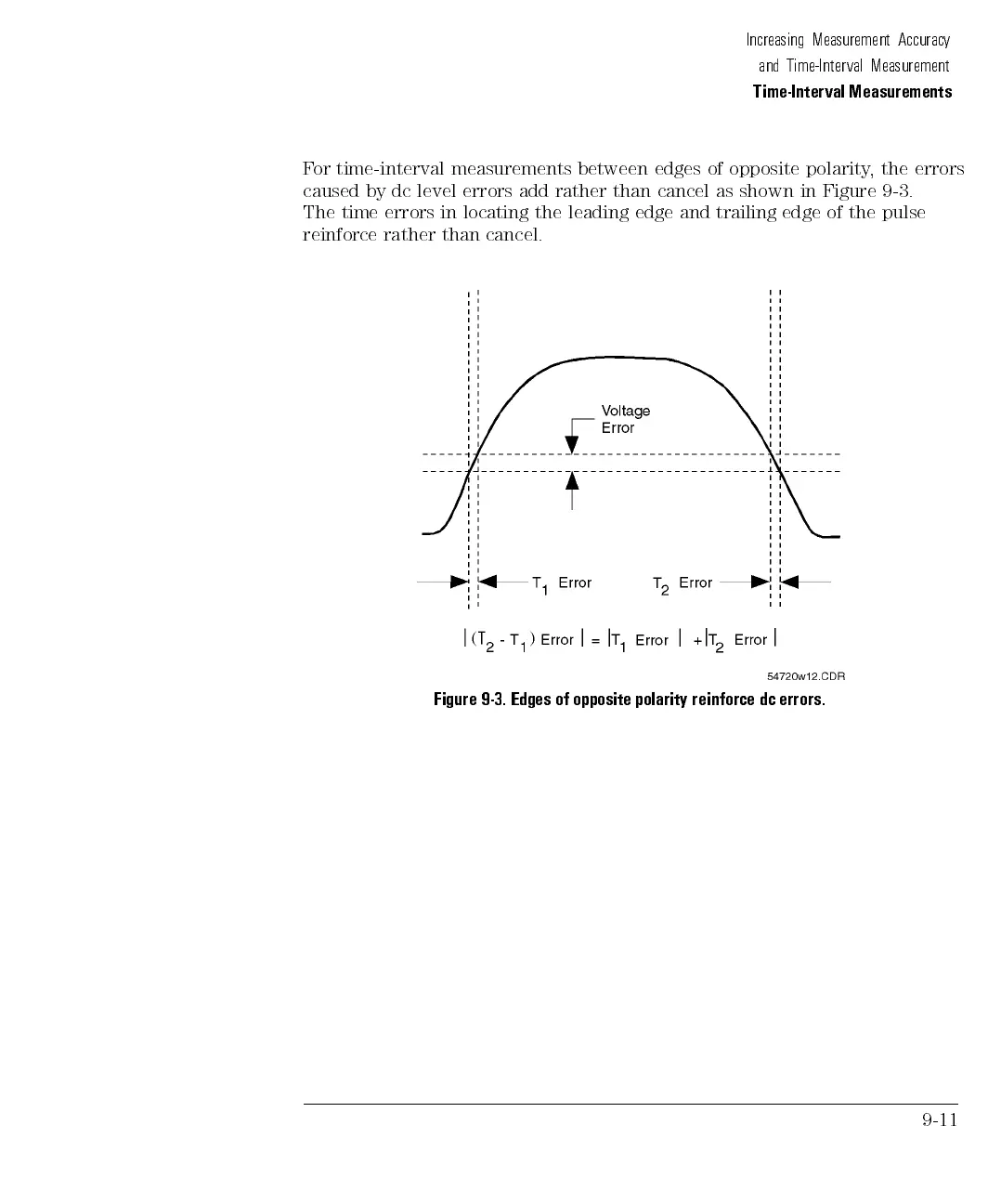

Figure
9-3.
Edges
of
opposite
polarity
reinforce
dc
errors.
9-11
242
244
