General Purpose Oscilloscope Menus
Histogram Menu
that the database is building because color graded display is turned on.
When mask testing or histograms are turned on, they take advantage of the
information already established in the database as if they had been turned on

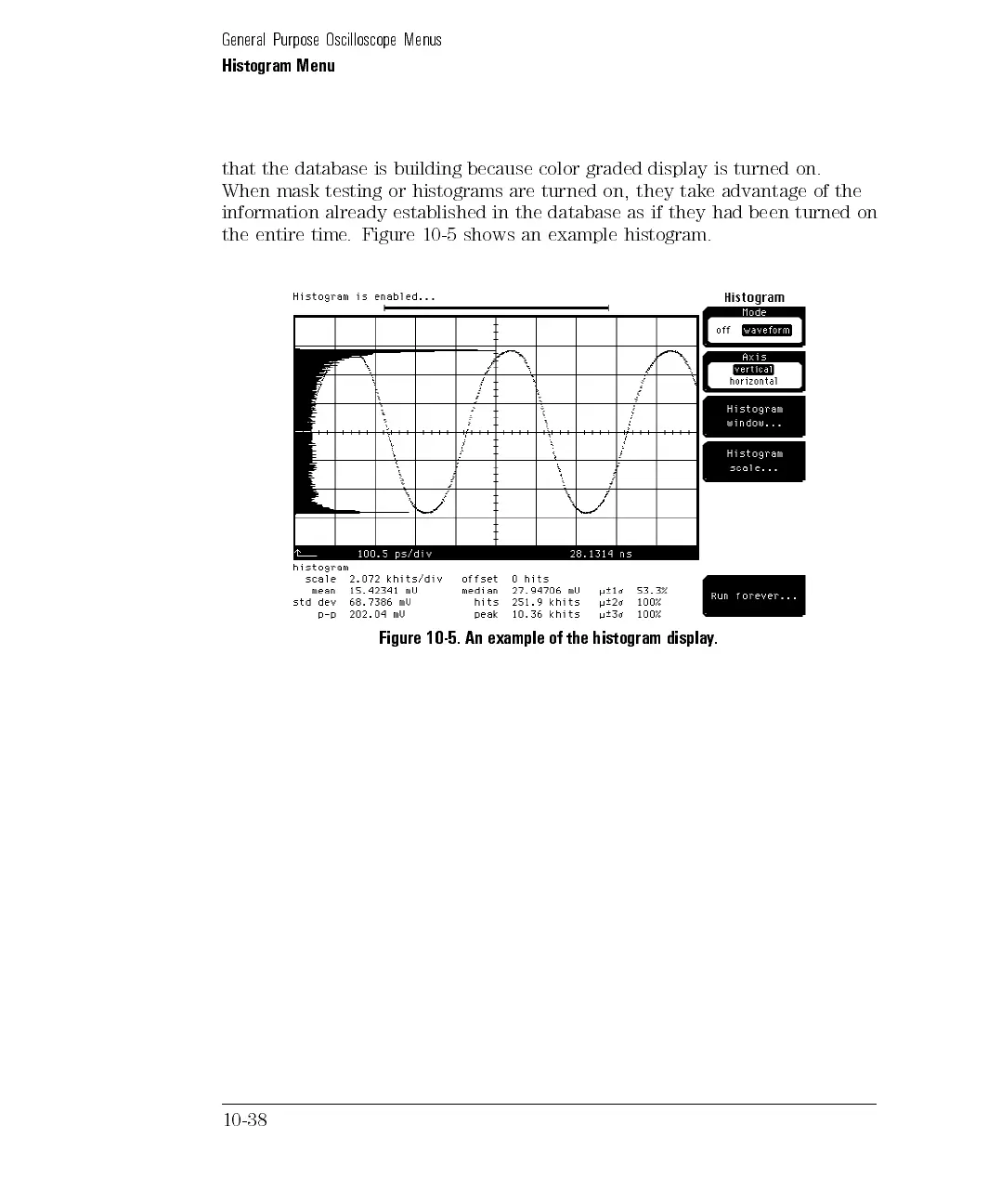

the entire time. Figure 10-5 shows an example histogram.
Figure
10-5. An
example
of
the
histogram
display
.
10-38
