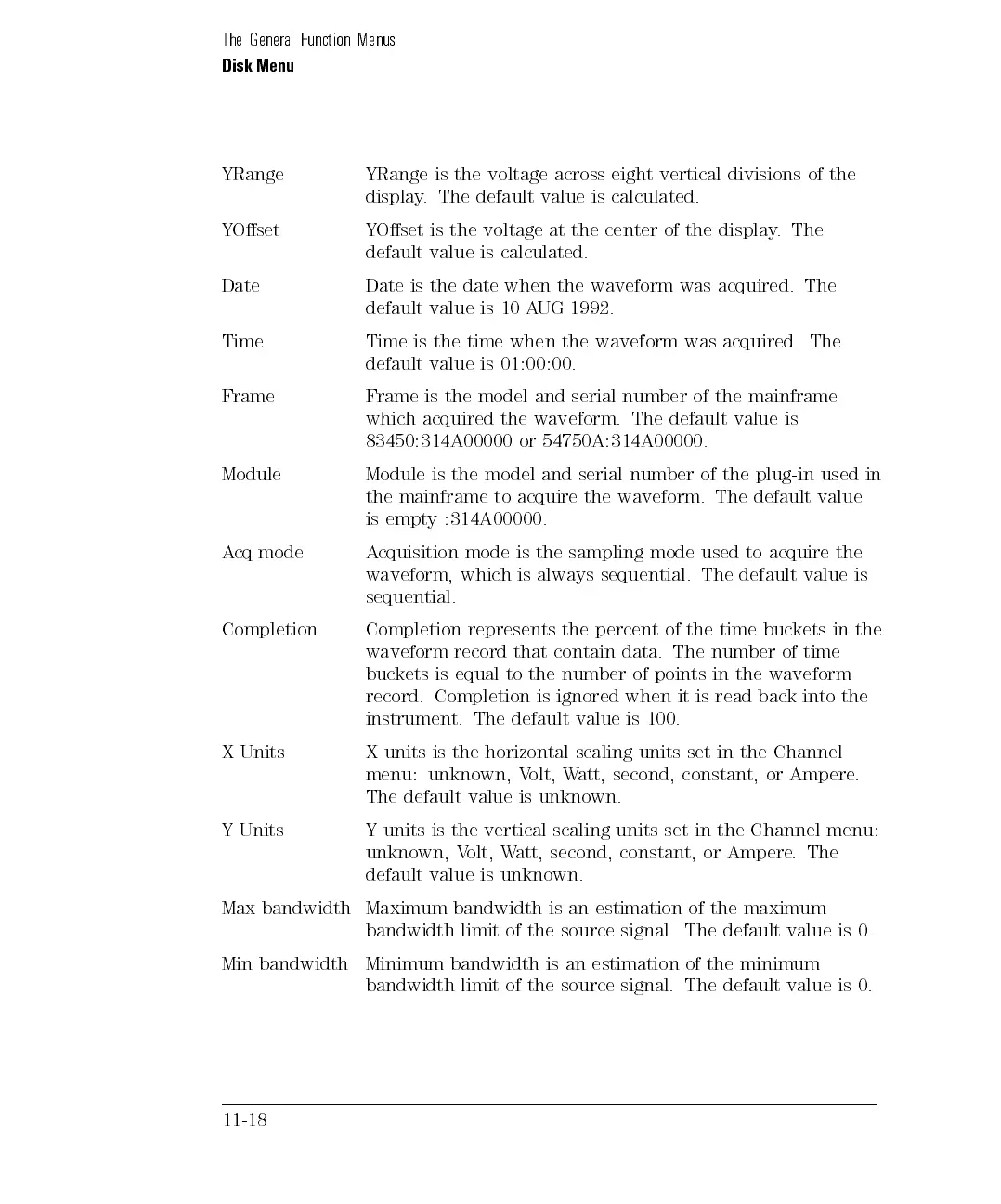

The General Function Menus
Disk Menu
YRange YRange is the voltage across eight vertical divisions of the
display. The default value is calculated.
YOset YOset is the voltage at the center of the display.The
default value is calculated.
Date Date is the date when the waveform was acquired. The
default value is 10 AUG 1992.
Time Time is the time when the waveform was acquired. The
default value is 01:00:00.
Frame Frame is the model and serial number of the mainframe
which
acquired
the
waveform.
The
default
value
is
83450:314A00000 or
54750A:314A00000.
Module Module
is the
model and
serial number
of
the
plug-in
used
in
the
mainframe
to
acquire
the
waveform.
The
default
value
is
empty
:314A00000.
A
cq
mode
A
cquisition
mode
is
the
sampling
mode
used
to
acquire the
waveform,
which
is
always
sequential.
The
default
value
is
sequential.
Completion
Completion
represents
the
percent
of
the
time
buckets
in
the
waveform
record
that
contain
data.
The
number
of
time
buckets
is
equal
to
the
number
of
points
in
the
waveform
record.
Completion
is
ignored
when
it
is
read
back
into
the
instrument.
The
default
value
is
100.
X
Units X
units is
the horizontal
scaling units
set
in
the
Channel
menu: unknown, Volt, Watt, second, constant, or Ampere.
The default value is unknown.
Y Units Y units is the vertical scaling units set in the Channel menu:
unknown, Volt, Watt, second, constant, or Ampere.The
default value is unknown.
Max
bandwidth
Maximum
bandwidth
is
an
estimation
of the
maximum
bandwidth
limit
of
the
source
signal.
The
default
value is
0.
Min bandwidth
Minimum bandwidth is an estimation of the minimum
bandwidth limit of the source
signal. The default value is 0.
11-18
