HP 8360 B Series User Manual

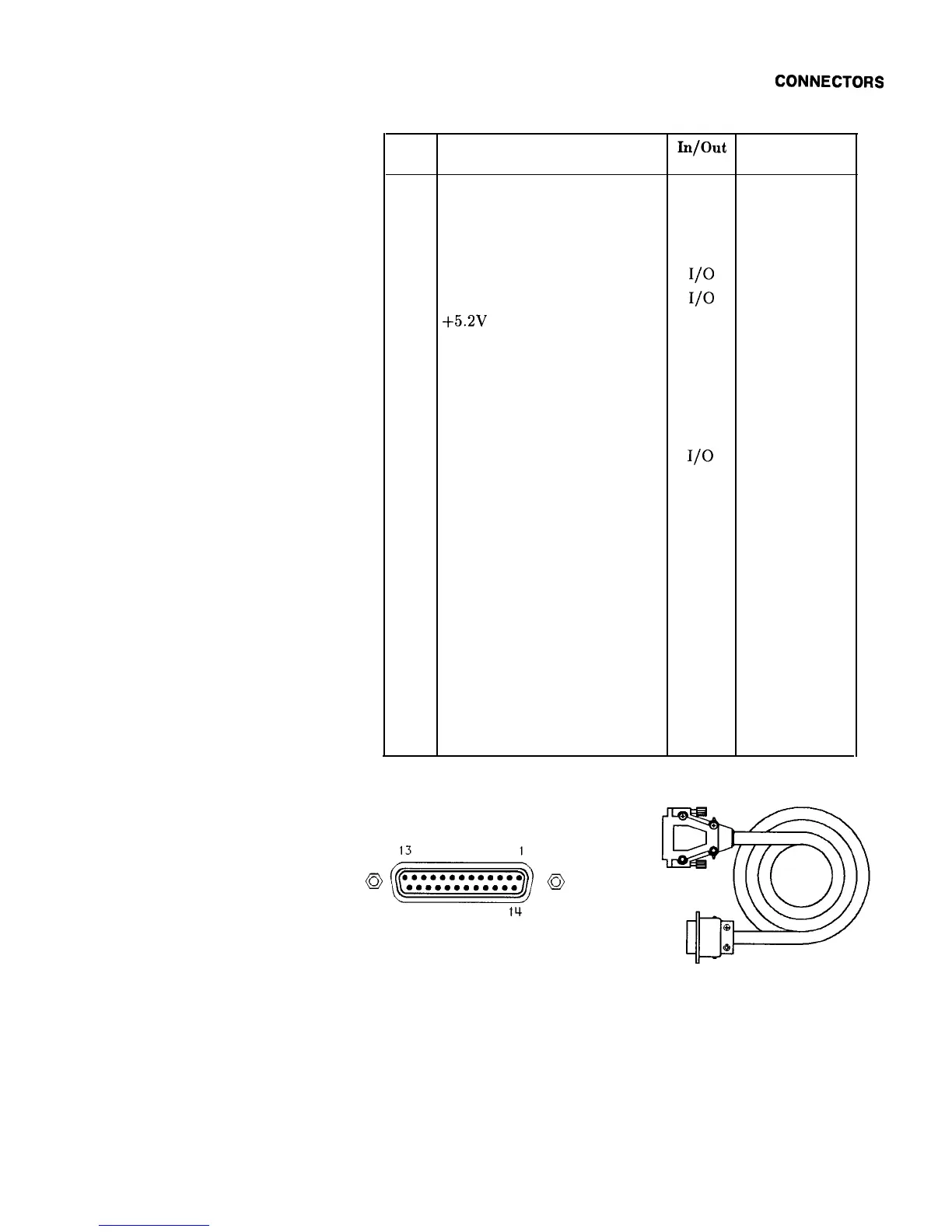

Table C-l. Pin Description of the Auxiliary Interface
Pin#
Function
In/out
Signal
Level
1
No Connection
2
Z-Axis Blanking/Markers
out Blank=+5 V
Marker=-5
3
Spare
4
Spare
I/O
TTL
5
Low Stop Sweep
I/O
TTL
6
+5.2V
out
TTL
7
No Connection
8 Divider-Sync
out
TTL
9
External Trigger
In TTL
10
Spare
out TTL
11
Spare
out TTL
12
Low Retrace
I/O
TTL
13
No Connection
14
Low Marker
out
TTL
15
Low Qualified Stop Sweep
out
TTL
16
Spare
out
TTL
17
Spare
out
TTL
18 Sweep Output
out 0 to 10 V ramp
19 Ground
20 Low Blank Request
In
TTL
21
Spare
22 No Connection
23
Spare
24 Low Source Settled
out
TTL
25
No Connection
AUXILIARY INTERFACEAUXILIARY INTERFACE
2525
1414
RS-232 CABLERS-232 CABLE
Figure C-l. Auxiliary Interface ConnectorFigure C-l. Auxiliary Interface Connector
Operating and Programming Reference C-7Operating and Programming Reference C-7
