Command Remarks
4. Assign the interface to an
MFR interface.
fr mfr interface-number
By default, an interface is not assigned to
any MFR interfaces.
5. (Optional.) Set the MFR
bundle link identifier.
mfr link-name name
By default, the name of the current
interface is used.
6. (Optional.) Set the interval at
which the MFR bundle link
sends hello messages.
mfr timer hello seconds
The default setting is 10 seconds.
Hello messages maintain link status.
7. (Optional.) Set the time that
the bundle link waits for a
hello acknowledgment
before resending the hello
message.
mfr timer ack seconds
The default setting is 4 seconds.
A hello acknowledgment notifies the
peer that the local end received a hello
message.
8. (Optional.) Set the maximum
number of times that the MFR
bundle link can resend hello
messages.
mfr retry number The default setting is 2.
Displaying and maintaining MFR
Execute display commands in any view and reset commands in user view.
Task Command
Display MFR interface information.
display interface [ mfr [ interface-number ] ] [ brief [ description |
down ] ]
Display the configuration and statistics
for MFR bundles and bundle links.
display mfr [ interface interface-type interface-number | verbose ]
Clear statistics for MFR interfaces.
reset counters interface [ mfr [ interface-number |
interface-number.subnumber ] ]
MFR configuration example
Network requirements
As shown in Figure 76, use MFR to bind the physical links between Router A and Router B into a logical
link with higher bandwidth than each physical link.

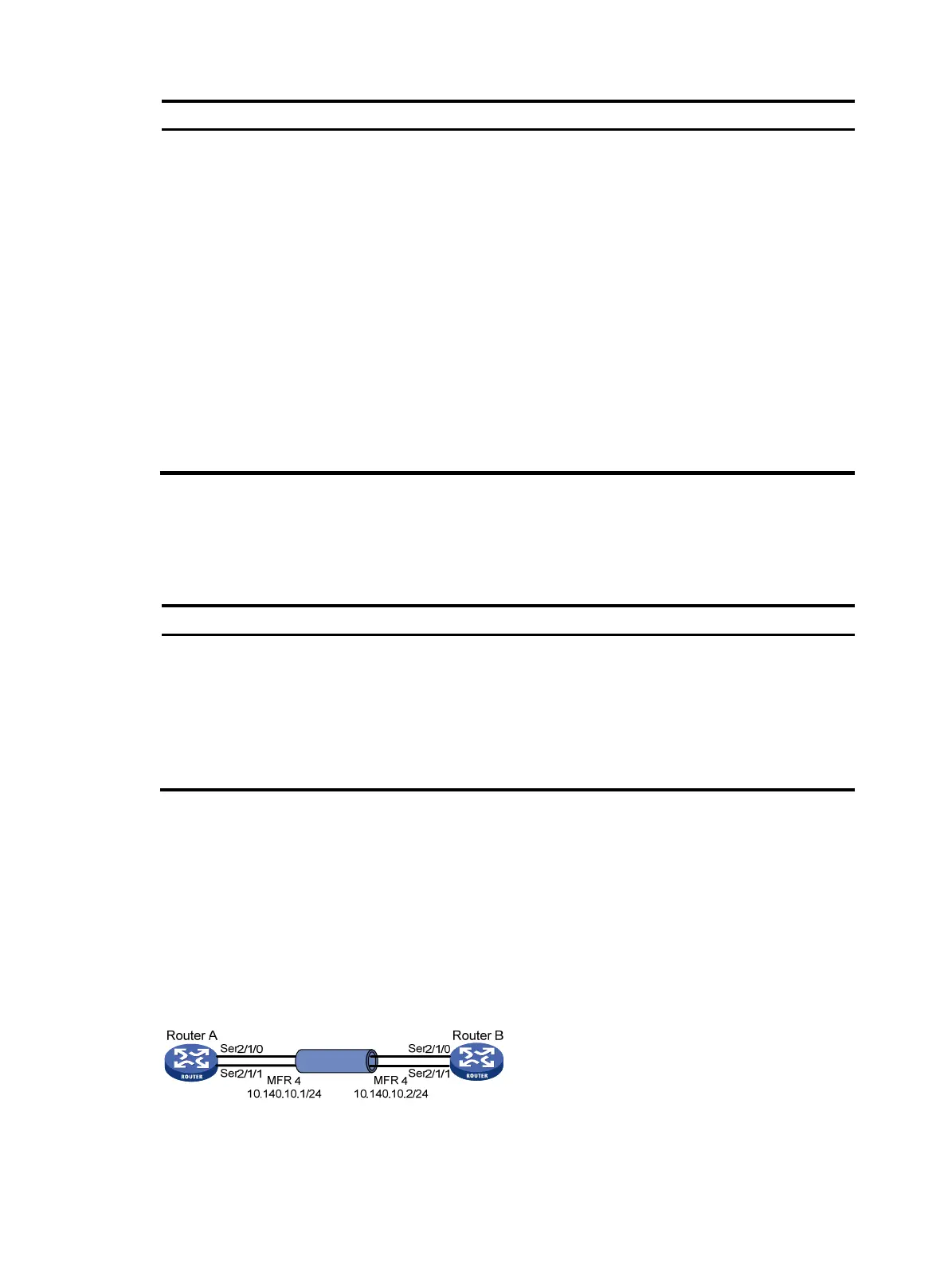

Figure 76 Network diagram
