Two-way PAP authentication configuration example

Network requirements

As shown in Figure 4, configure Router A and Router B to authenticate each other.

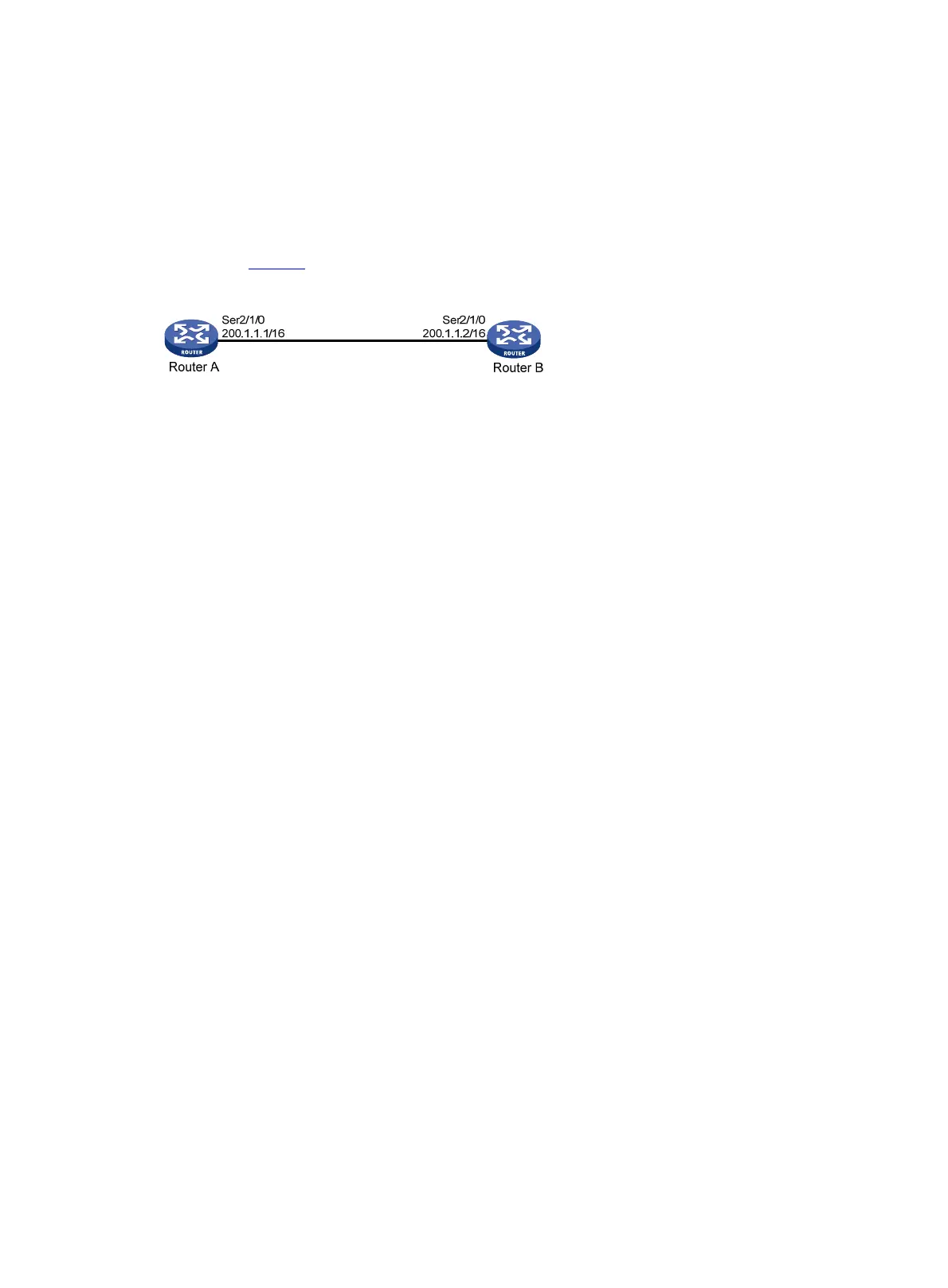

Figure 4 Network diagram

Configuration procedure

1. Configure Router A:

# Create a user account for Router B.

<RouterA> system-view

[RouterA] local-user userb class network

# Set a password for the user account.

[RouterA-luser-network-userb] password simple passb

# Set the service type of the user account to PPP.

[RouterA-luser-network-userb] service-type ppp

[RouterA-luser-network-userb] quit

# Enable PPP encapsulation on Serial 2/1/0 (optional, as an interface uses PPP encapsulation by

default).

[RouterA] interface serial 2/1/0

[RouterA-Serial2/1/0] link-protocol ppp

# Set the authentication mode to PAP.

[RouterA-Serial2/1/0] ppp authentication-mode pap domain system

# Configure the PAP username and password sent from Router A to Router B when Router A is

authenticated by Router B using PAP.

[RouterA-Serial2/1/0] ppp pap local-user usera password simple passa

# Assign an IP address to Serial 2/1/0 of Router A.

[RouterA-Serial2/1/0] ip address 200.1.1.1 16

[RouterA-Serial2/1/0] quit

# Configure local authentication for the PPP users in the default ISP domain system.

[RouterA] domain system

[RouterA-isp-system] authentication ppp local

2. Configure Router B:

# Create a user account for Router A on Router B.

<RouterB> system-view

[RouterB] local-user usera class network

# Set a password for the user account.

[RouterB-luser-network-usera] password simple passa

# Set the service type of the user account to PPP.
